24

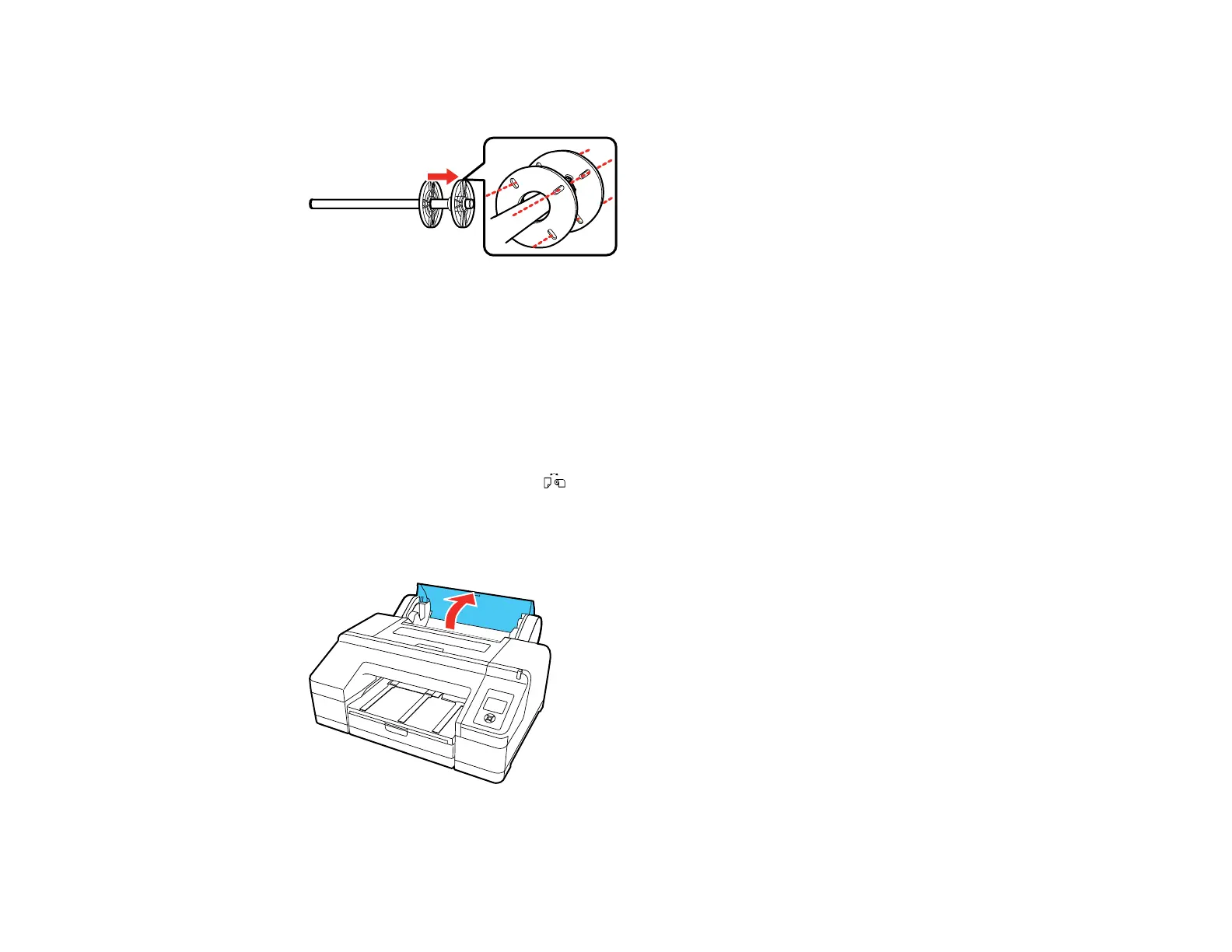

2. Slide the spacer all the way onto the spindle until it reaches the gray paper stop on the other end.
Make sure the holes in the spacer and paper stop line up exactly.
Parent topic: Roll Paper Handling
Related references
Borderless Paper Type Compatibility
Loading Roll Paper
You can load roll paper with a 2- or 3-inch core and a width of up to 17 inches (43 cm).
1. Make sure the printer is turned on.
2. On the control panel, press the paper source button.
3. Press the down arrow button to select Roll Paper/Cut or Roll Paper/No Cut, and press the OK
button.
4. Open the roll paper cover.

Table of Contents

Other manuals for Epson surecolor p5000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson surecolor p5000 and is the answer not in the manual?

Epson surecolor p5000 Specifications

General IconGeneral
DisplayLCD
Product colorBlack
Built-in displayYes
Sound pressure level (printing)47 dB
Print technologyInkjet
Maximum resolution2880 x 1440 DPI
Page description languagesESC P
Media thickness1.5 mm
Roll top margin3 mm
Maximum print size-
Power consumption (standby)20 W
Power consumption (typical)52 W
Storage temperature (T-T)-20 - 40 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)-20 - 40 %
Operating relative humidity (H-H)45 - 60 %
Maximum input capacity250 sheets
USB connectorUSB Type-A
USB 2.0 ports quantity1
Weight and Dimensions IconWeight and Dimensions
Depth766 mm
Width863 mm
Height405 mm
