Chapter 1 Product Overview
Device Charging Model/Bluetooth Model

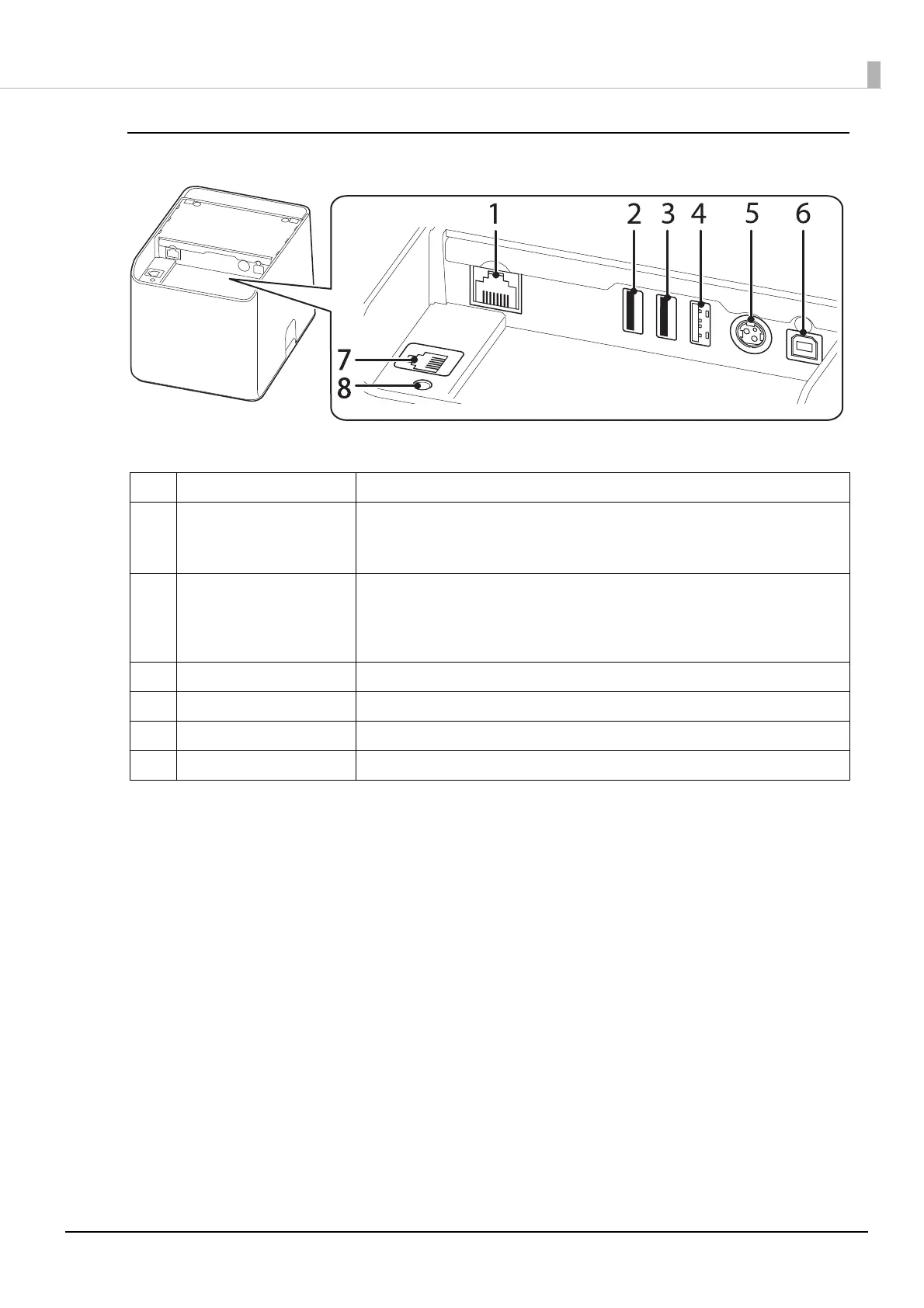

1 Ethernet connector Connects the 10BASE-T/100BASE-TX LAN cable.
2,3 USB Type-A connector
The USB connector color is
black
For connecting a peripheral device such as a customer display, handheld scanner,
or wireless LAN unit.
4 USB connector (USB-A -
Device Charging)
The USB connector color is
white
Connects a USB cable for connecting to a tablet computer.
Enables data communication with the tablet while charging it.
5 Power supply connector Connects the DC cable for the AC adapter.
6 USB Type-B connector Connects the USB cable for connecting to computers.
7 Drawer kick connector Connects the modular cable for the cash drawer.
8 Status sheet button Initializes the interface settings or prints a status sheet to verify the settings.
