Connectors
All cables are connected to the connector panel on the lower rear of the printer.
• DK (Drawer kick-out) connector:
Connects the cash drawer or the optional external buzzer.
See "Connecting the Cash Drawer" on page 58, and "Connecting the Optional External Buzzer"
on page 55.
•Interface connector:
Connects
the printer with the host computer interface.
See "Connecting the Printer to the Host Computer" on page 38.
•Power supply connector:
Connect the AC adapter.
See "Connecting to the Power Source" on page 44.

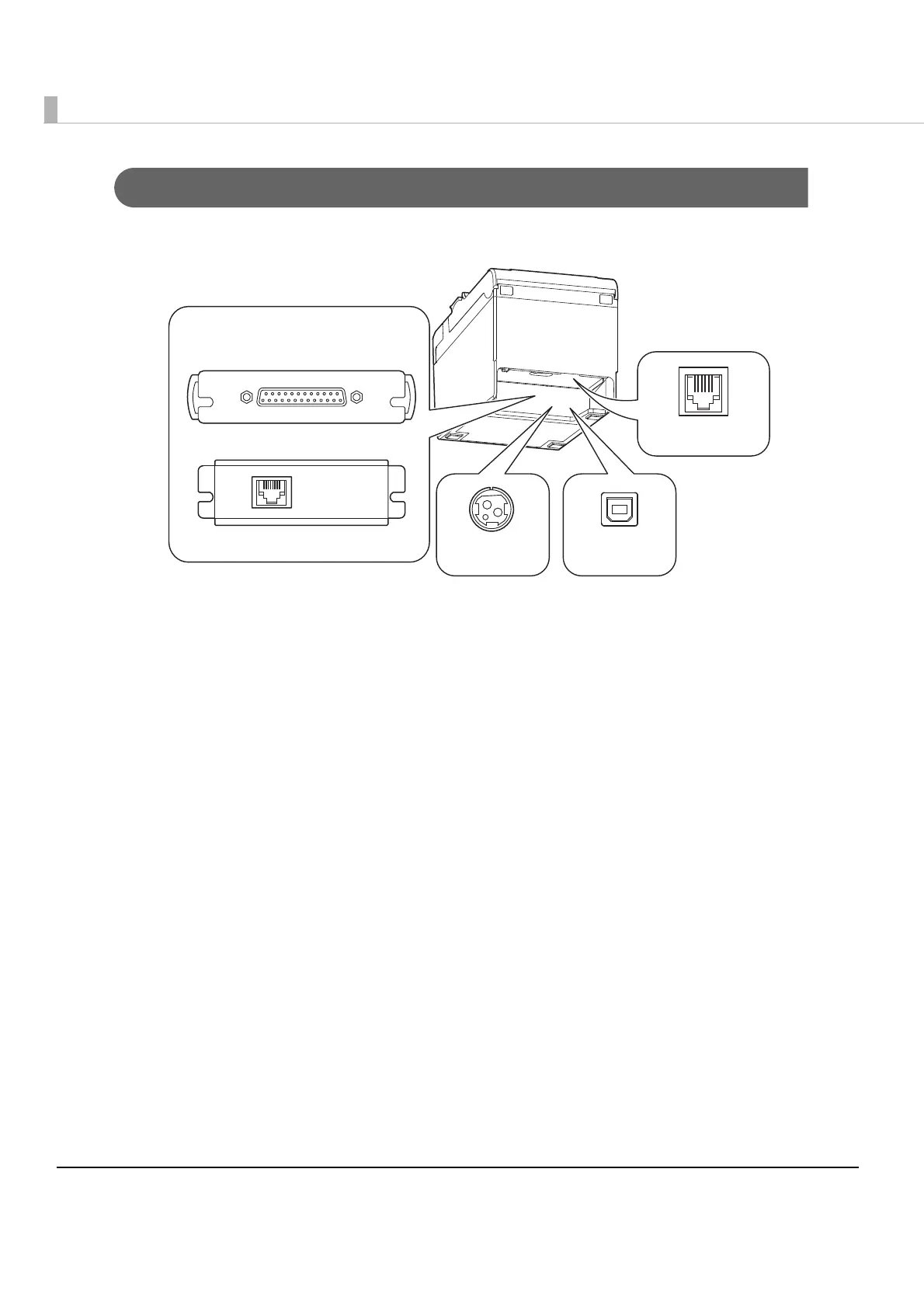

DK (Drawer kick-
out) connector
UIB
(Universal interface board)
RS-232
10BASE-T/100BASE-TX
Power supply
connector
USB
(Built-in)
