Epson TM-T20II - Connecting the DK Cable

Chapter 2 Setup
59
2

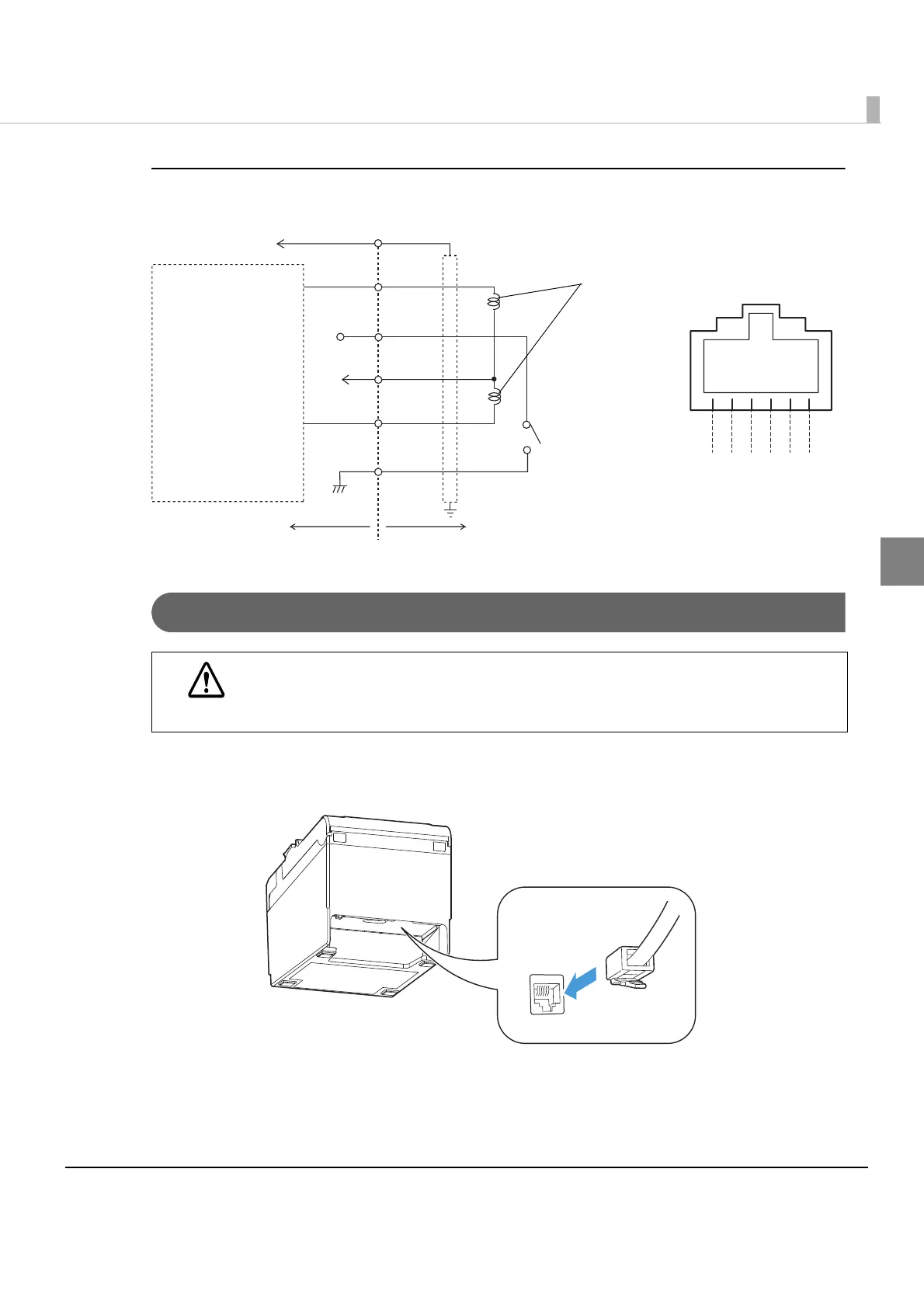

Drawer Connection Diagram
Connecting the DK cable
Connect the DK cable to the DK connector by pressing firmly until the connector clicks into
place.
WARNING
 Use a shield cable for the DK cable.
 Do not insert a telephone line into the DK connector.
Doing so may damage the telephone line or printer.
F. G
+24V
6 5 4 3 2 1
With shielded
DK connector
Printer side
User side
[Drawer kick-out side]
Drawer open/
close switch
Drawer
kick-out
solenoid
Control
device
1
2
3
4
5
6
