Epson TM-T20II

38
Connecting the Printer to the Host Computer
For Serial Interface

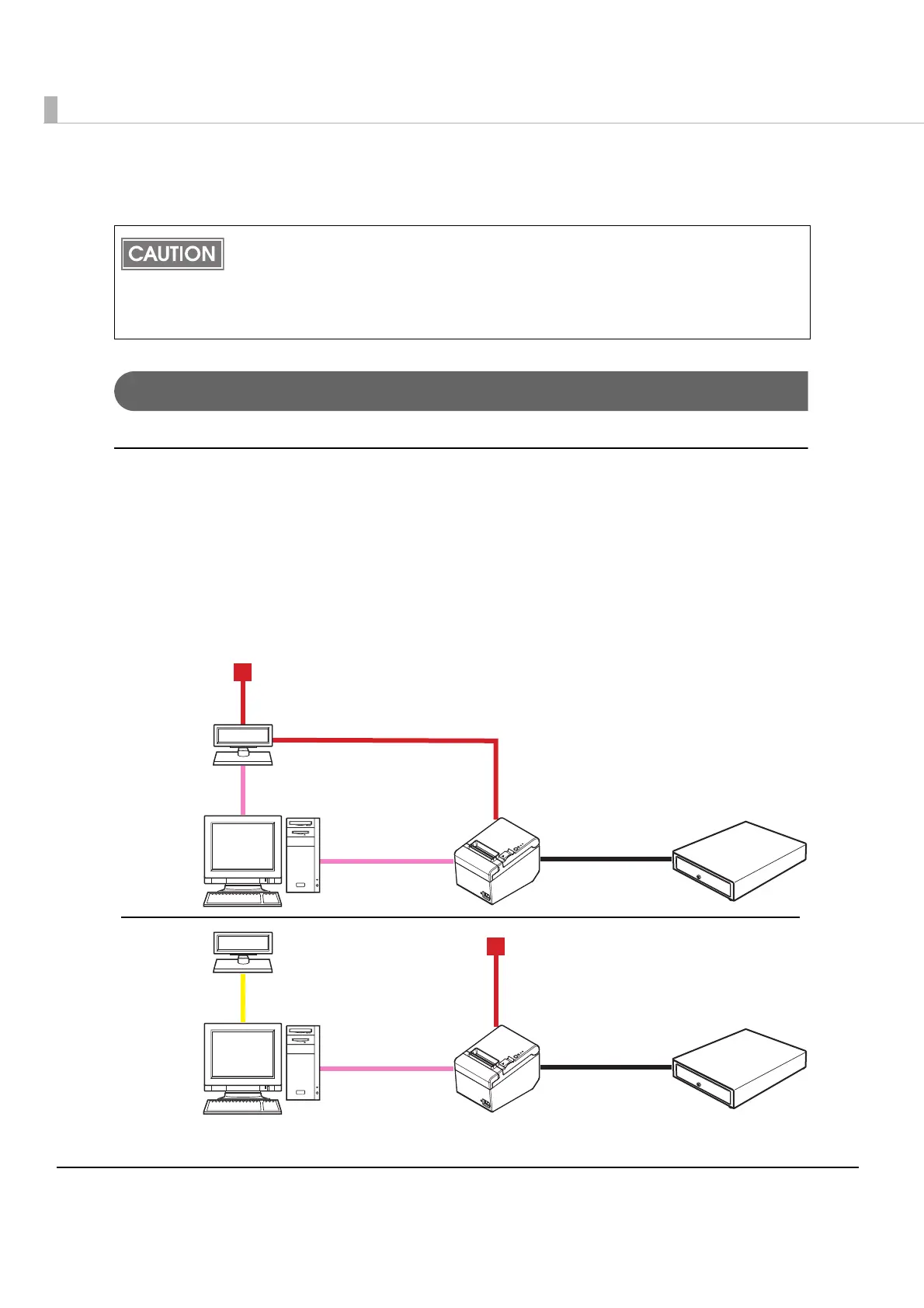

Serial interface connection diagram
When this printer is connected to a host computer by the serial interface, there are two
connection methods; stand alone connection and pass-through connection.
Stand alone connection
This printer is connected to the host computer directly via the serial port. When a customer
display (DM-D) is to be connected, connect it to the host computer via the serial port or USB
port.
 The printer uses a modular connector specifically designed for the cash drawer. Do not
connect the connector to a telephone line.
 For USB interface models, do not turn on the printer before installing the printer driver.
 For Ethernet interface models, do not connect a telephone line or DK cable to the
Ethernet connector.
Serial cable
Serial cable
Cash drawer
TM-T20II
DK cable
AC Adapter
+ AC cable
Extension cable
for power supply
DM-D
(Serial I/F model)
DM-D
(USB I/F model)
Serial cable
USB cable
DK cable
Cash drawer
AC Adapter
+ AC cable
TM-T20II
