Front cover (L) Open when paper is jammed or when replacing the maintenance
box.
J
Ink cartridge cover (A) Open when replacing the ink cartridge.
K
External interface USB port Connects memory devices.
Front/Left side
A

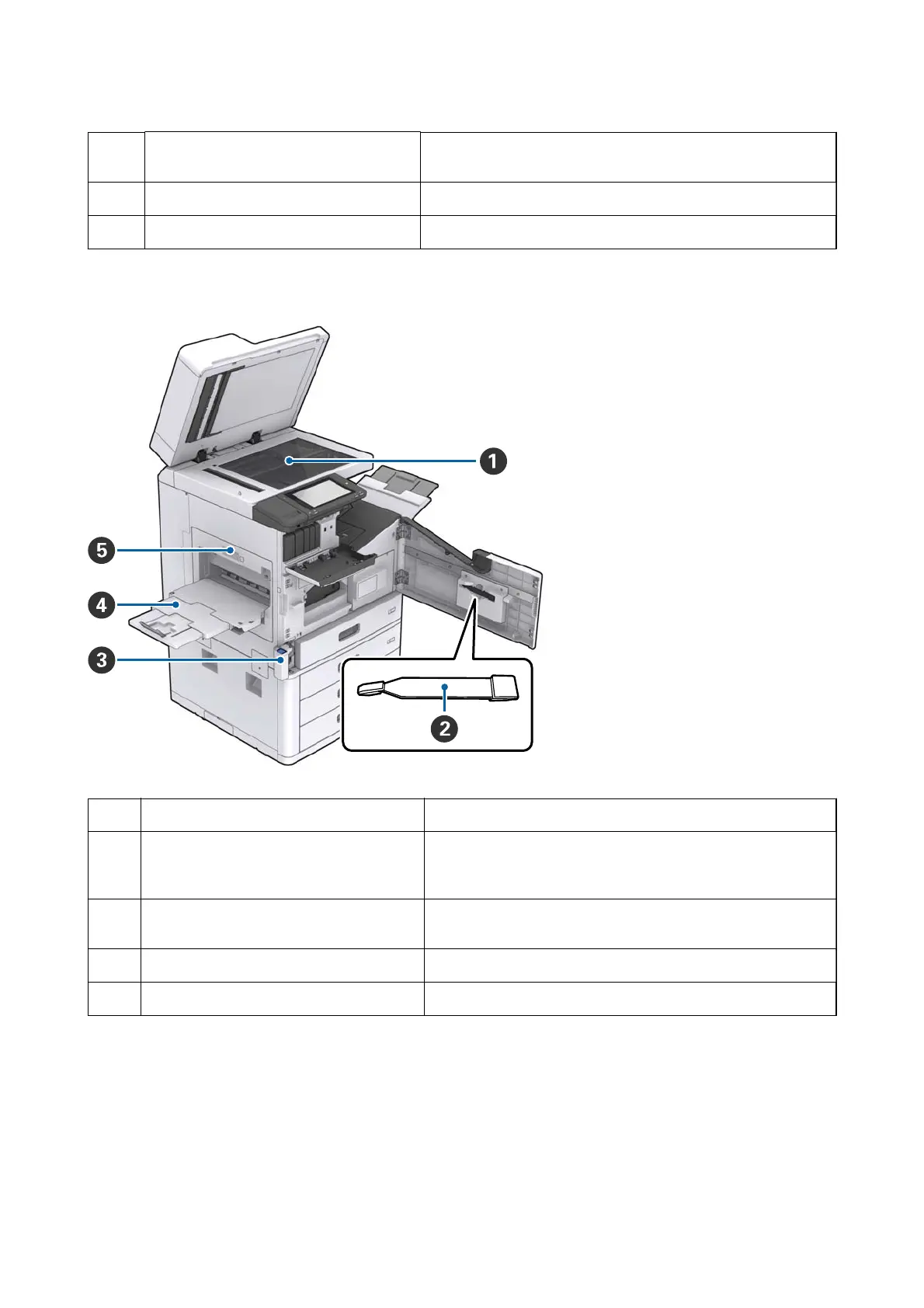

Scanner glass Place the document face-down on the scanner glass.
B
Cleaner This is a service part for cleaning the inside of the printer. (It can
also be used as a substitute for a soft cloth when wiping the
scanner glass surface.)
C
Maintenance box cover (H) Open when replacing the maintenance box. You need to open the
front cover (L) rst.
D
Face up tray Holds the print outs.
E
Duplexing unit (D1) Open when paper is jammed.
