PS6500 Rack Mount Instructions 17
One wire assembly has three arms, three clamps, and six fabric hook-and-loop fasteners.
One wire assembly has one arm, two clamps, and three fabric hook-and-loop fasteners.

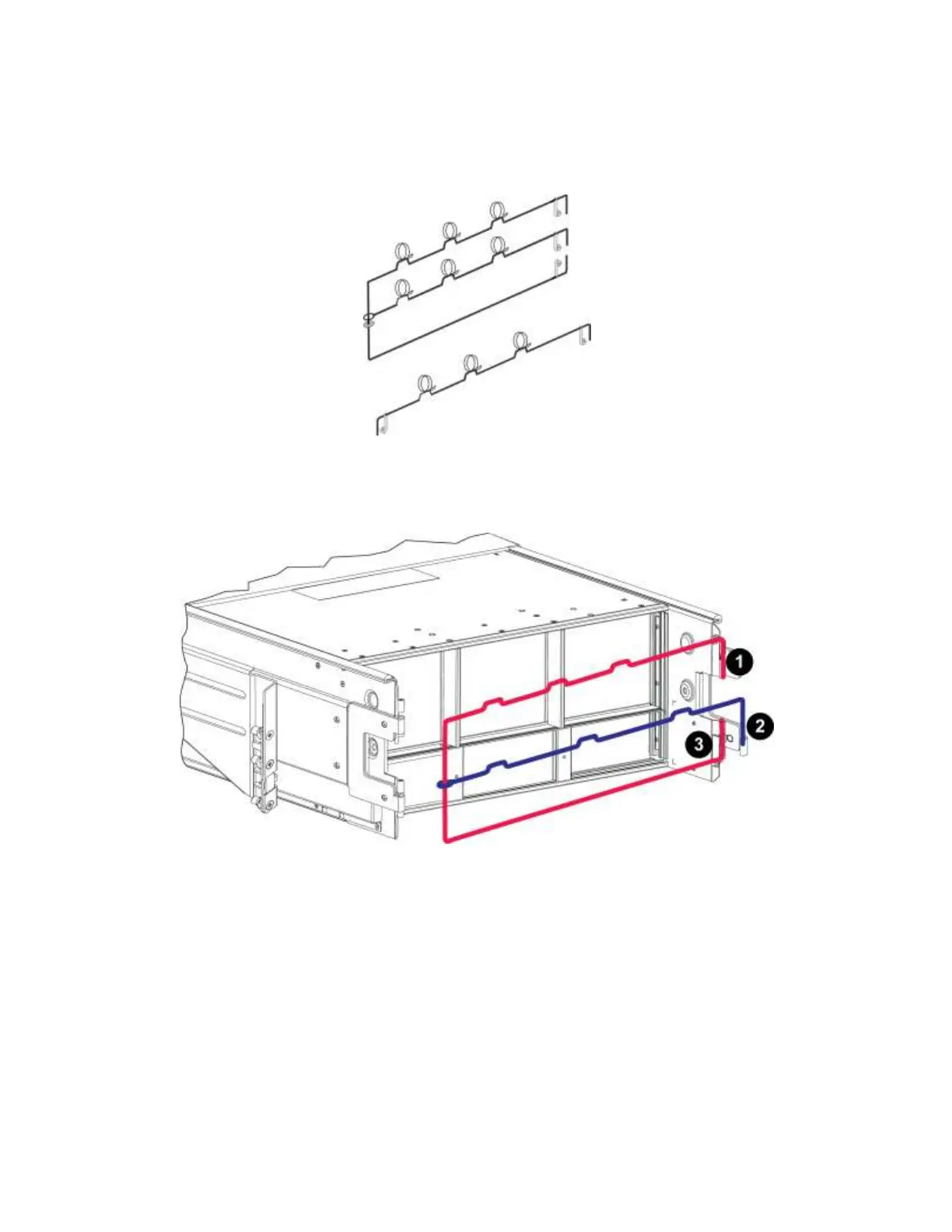

Figure 13 Cable Management System
2. Orient the three-arm wire assembly as shown in Figure 14 and attach it to the top and bottom of the
rear, right chassis flange (callouts 1, 2, and 3).
Figure 14 Array with Three-Arm Assembly Attached
3. Use the attached clamps to secure the arms to the chassis and rails. See Figure 15.
