ERBAUER 254MM (10”) SINGLE BEVEL SLIDING MITRE SAW
8. Installing Blade
Unplug the mitre saw before changing/installing
the blade.
Note:
the correct size for this machine and the

1) Rotate and hold lower blade guard in its
upper position as already described.

making sure the rotation arrow on the blade
matches the clockwise rotation arrow on the upper
guard and the blade teeth are pointing downward.
3) Place the outer blade collar against the blade
and on the arbor. Thread the arbor bolt onto the

IMPORTANT


4) Place the allen key into the arbor bolt.
5) Press the arbor lock, holding gently while
turning the blade counterclockwise. When arbor


Note: Do not press arbor lock when blade is
moving.
Warning: Be sure that the arbor lock
is released so that the blade turns
freely. Lower the blade into the lower table and
check for any contact with the base or the mitre
table by spinning the blade manually. Make sure
the collars are clean and properly arranged.
Check that the lower blade guard is functioning
correctly and does not bind or stick.

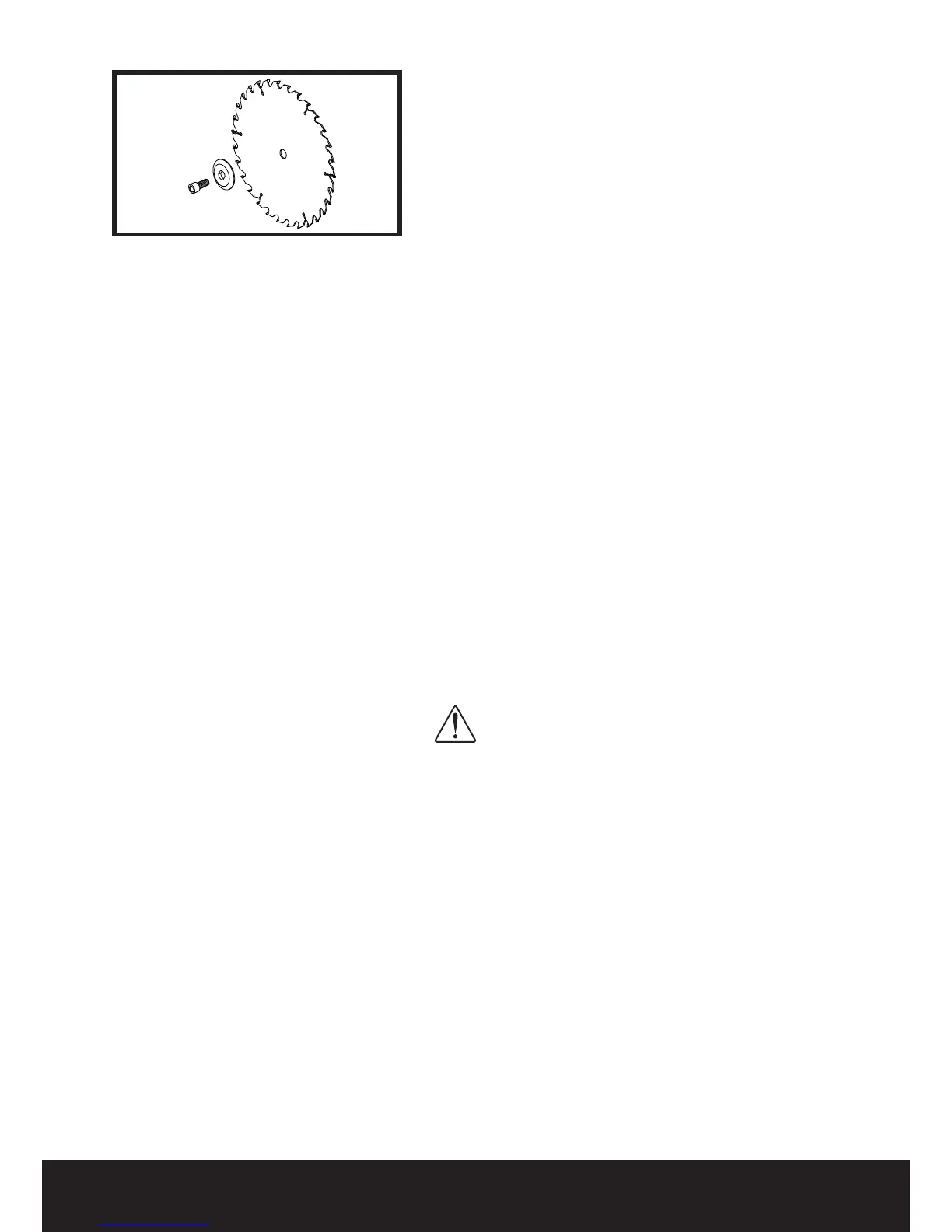

Fig 15
