ERBAUER 254MM (10”) SINGLE BEVEL SLIDING MITRE SAW
9. Aligning the laser beam
Warning: For your own safety, never
connect the plug to power source

complete and you have read and understood
the safety and operational instructions. The
laser beam must always be correctly aligned
with the blade to ensure straight, even cutting.

cutting guide using a Class II laser beam.
The laser beam will enable the operator to
preview the saw blade path on the stock to be
cut before starting the saw. This laser guide
is powered by the transformed alternating
current supply directly through the power
lead. The saw must be connected to the
power source and the laser on/off switch must
be turned on for the laser line to show.

Warning:
AVOID DIRECT EYE CONTACT
Laser radiated when laser guide is turned on.
Avoid direct eye contact. Always unplug the
mitre saw from power source before making




beam Class 2 Laser Product Puissance.
Note:
of this machine have been completed at the
factory. Due to normal wear and use, some

A. Check Laser Beam Alignment

to serve as a “pattern line” to test laser
alignment. Lay the board on the mitre table.
2) Plug saw into socket and turn on the laser
beam and line it up with the pattern line.
3) Lower saw blade to pattern line and



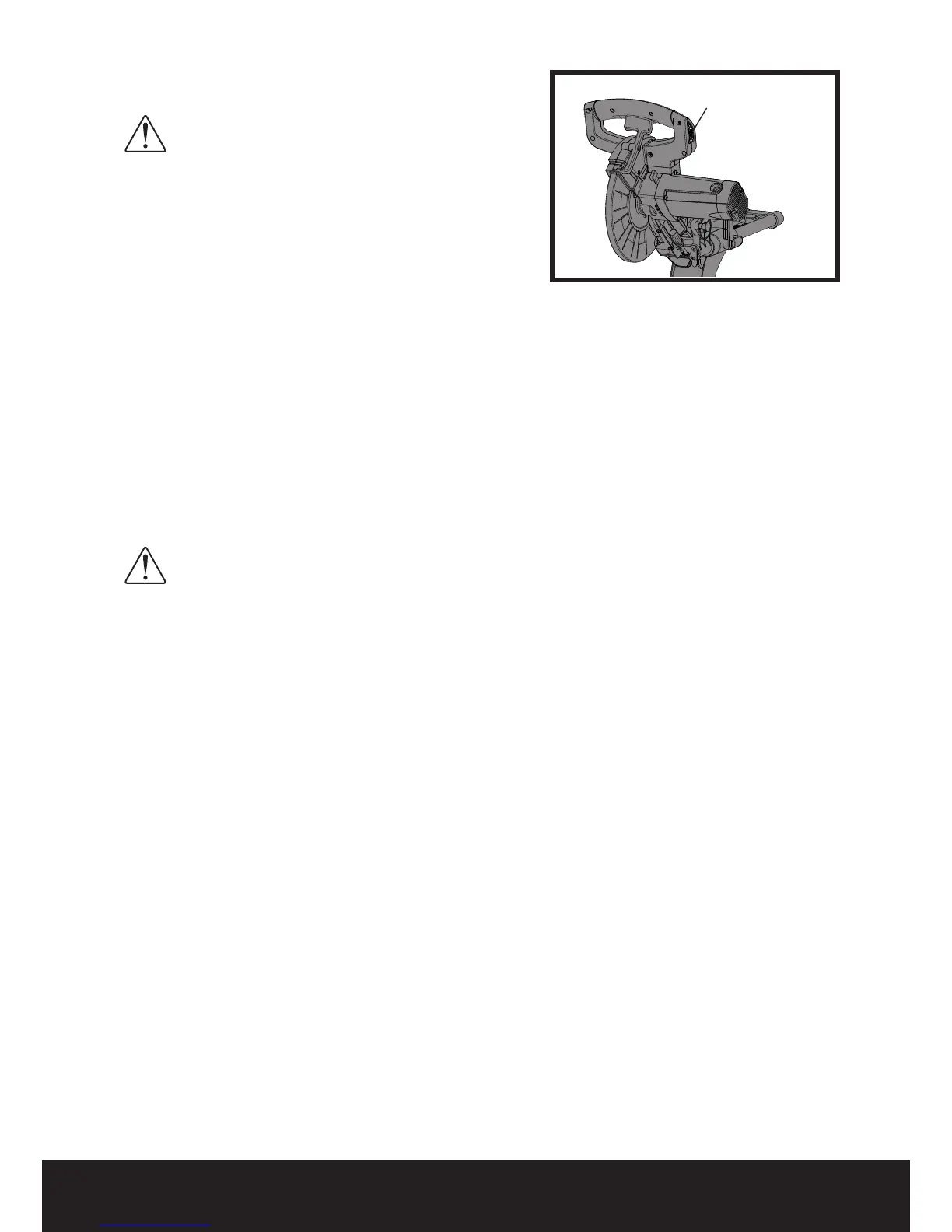

Fig 16
Laser ON/OFF Switch
