ERBAUER 254MM (10”) SINGLE BEVEL SLIDING MITRE SAW
A stop plate designed for use during repetitive
on the RH side of the machine base. The stop
plate can be deployed in two positions, inboard
and outboard.
The inboard position enables repetitive cuts of
shorter lengths by positioning the stop plate
close to the blade. The outboard position is
used for the repetitive cutting of longer lengths
from the blade.

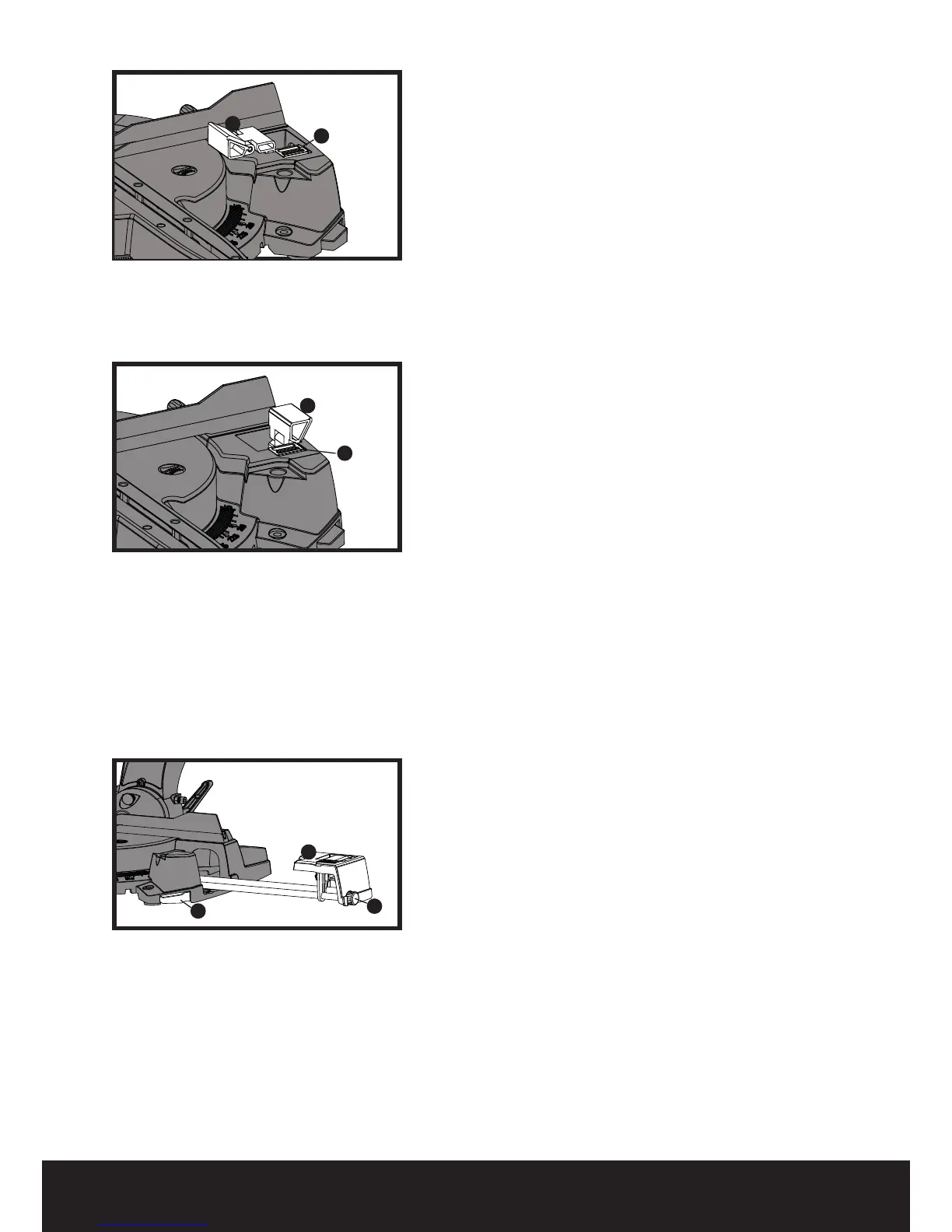

To deploy the stop:
1) Slide the release lock forwards.
2) Pull the stop(1) from its stored position
upwards and to the left. The stop will deploy.
3) Slide the release lock (2) backwards to lock
the stop into position.
4) To stow away, reverse the above steps.
(See
To deploy the stop outboard:
1) Slide the sprung-loaded lock (2) forwards.
2) Whilst holding the release lock, pull the stop (1)
from its stored position upwards and to the right.
The stop will deploy to the outboard position.
3) Slide the release lock (2) backwards to lock
the stop position.
4) To stow away, reverse the above steps.
(See
Adjusting the stop plate
Deploy the stop plate as outlined above.
1) Push the release button (1) on the front of the
machine base below the stop plate.
base, and release the button (1) when at the
clockwise or
13. Extension Arm
With the stop plate in its stored position the
14. Cutting base moulding
1
2
3
Fig 37
1
2
Fig 36
1
2
