ERBAUER 254MM (10”) SINGLE BEVEL SLIDING MITRE SAW
%HYHO0LWUH6HWWLQJV
Settings for standard crown moulding lying

Note: The chart below references a
compound cut for crown moulding ONLY
WHEN THE ANGLE BETWEEN THE WALLS
EQUALS 90
o
.
KEY BEVEL
SETTING
MITRE
SETTING
TYPE OF CUT
Inside Corner-Left side
IL 

31.6

Right
1)Position top of moulding against fence
2)Mitre table set at Right 31.6


Inside Corner-Right side
IR 

31.6

Left
1)Position bottom of moulding against
fence.
2)Mitre table set LEFT 31.6

Outside Corner-Left side
OL 

31.6

Left
1)Position bottom of moulding against
fence.
2)Mitre table set at Left 31.6


Outside Corner-Right side
OR 

31.6

Right
1)Position top of moulding against fence.
2)Mitre table set at RIGHT 31.6



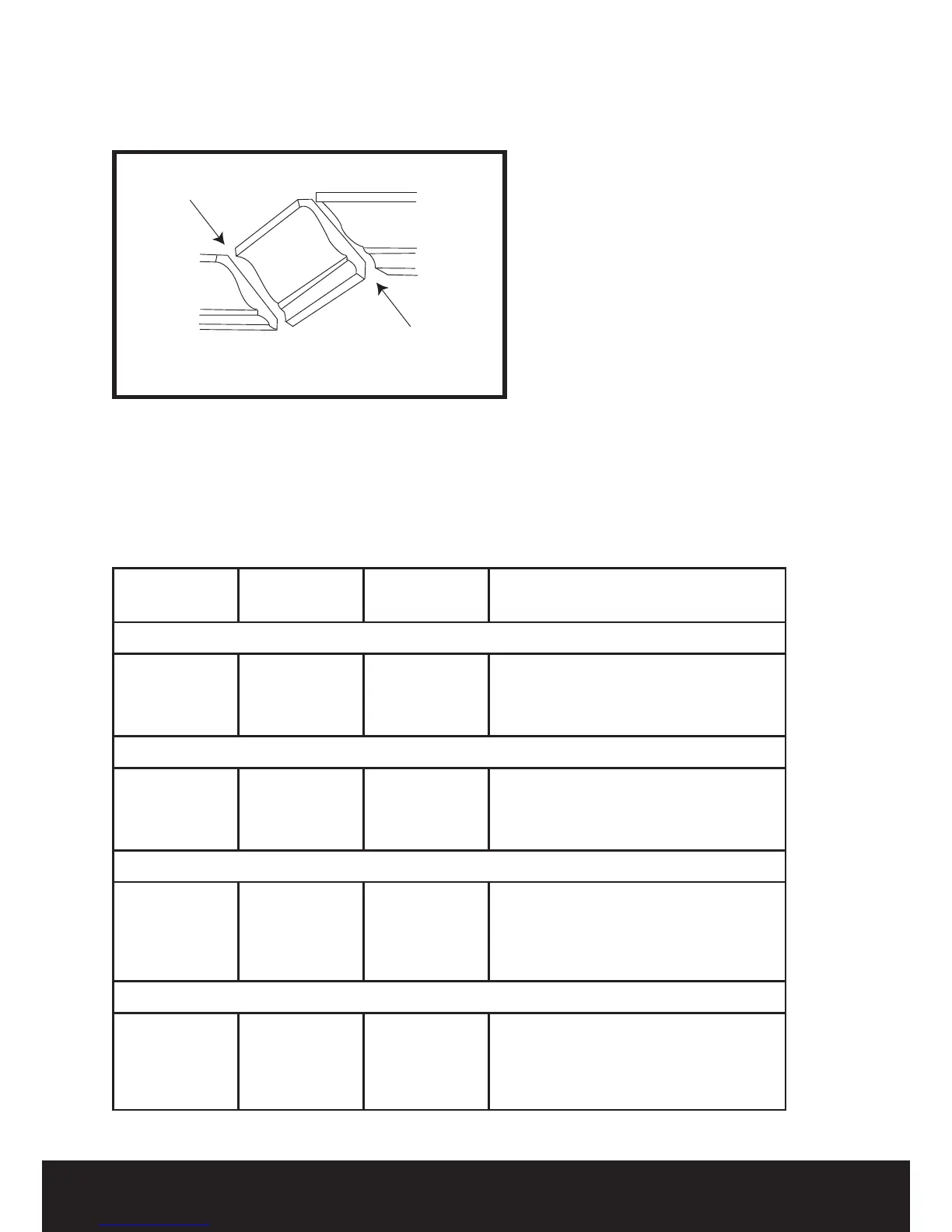

Fig 42
IL
IR
OL
OR
Inside Corner
Outside Corner
Compound Cut Crown Mouldings
