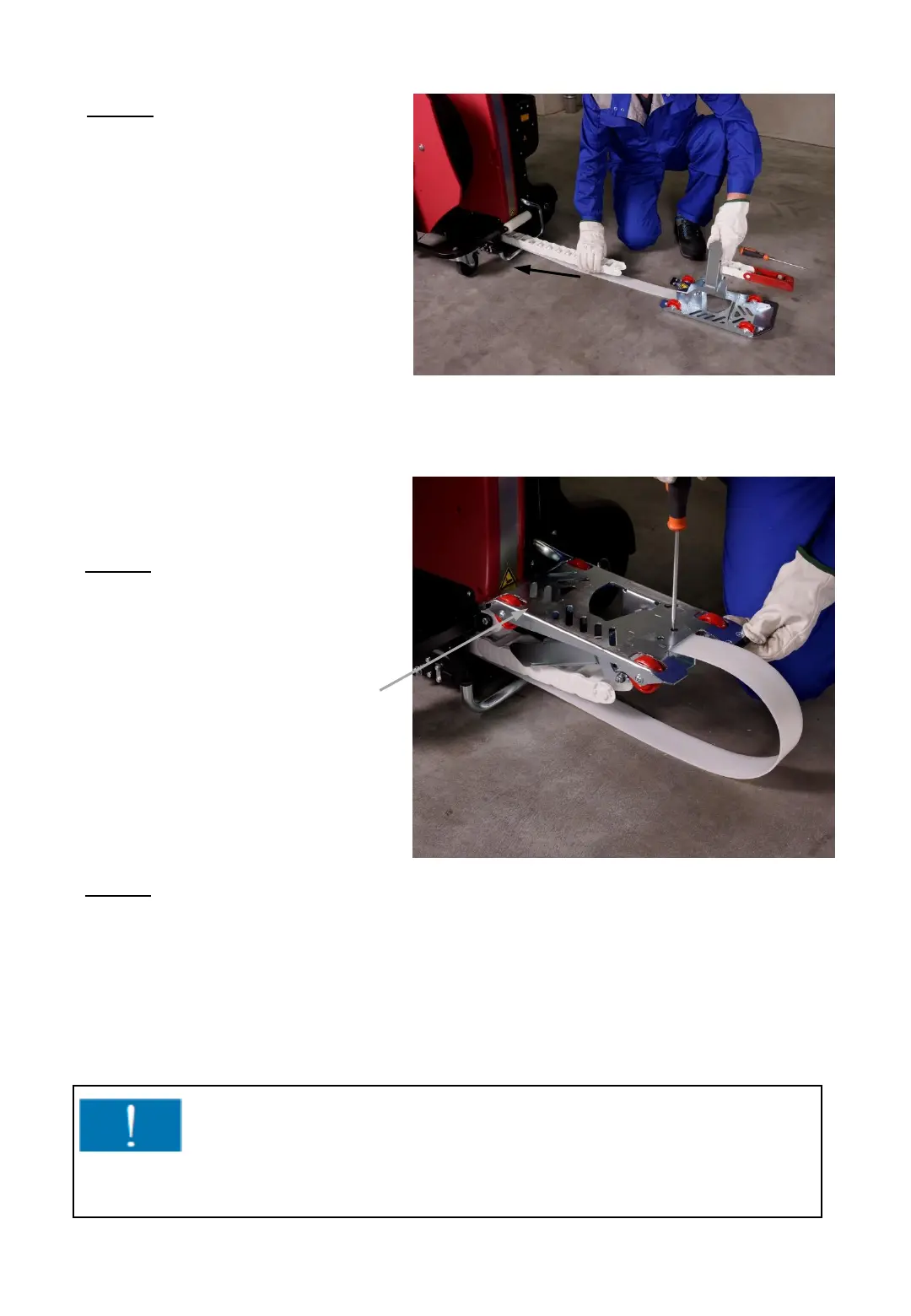

4. Step
Push the ChainLance back
into the strapping system
until it has completely moved
out of the reversing sledge.
5. Step
Place the reversing sledge on its
top as illustrated and use a
screwdriver to unscrew both
screws of the length adjusting
belt.
6. Step
The fitting is done in the
reversed order of the
dismantling.
- 59 -
Fig. 81
Fig. 80
Important !
Both screws of the length stop strap must be protected with screw
retaining varnish!
