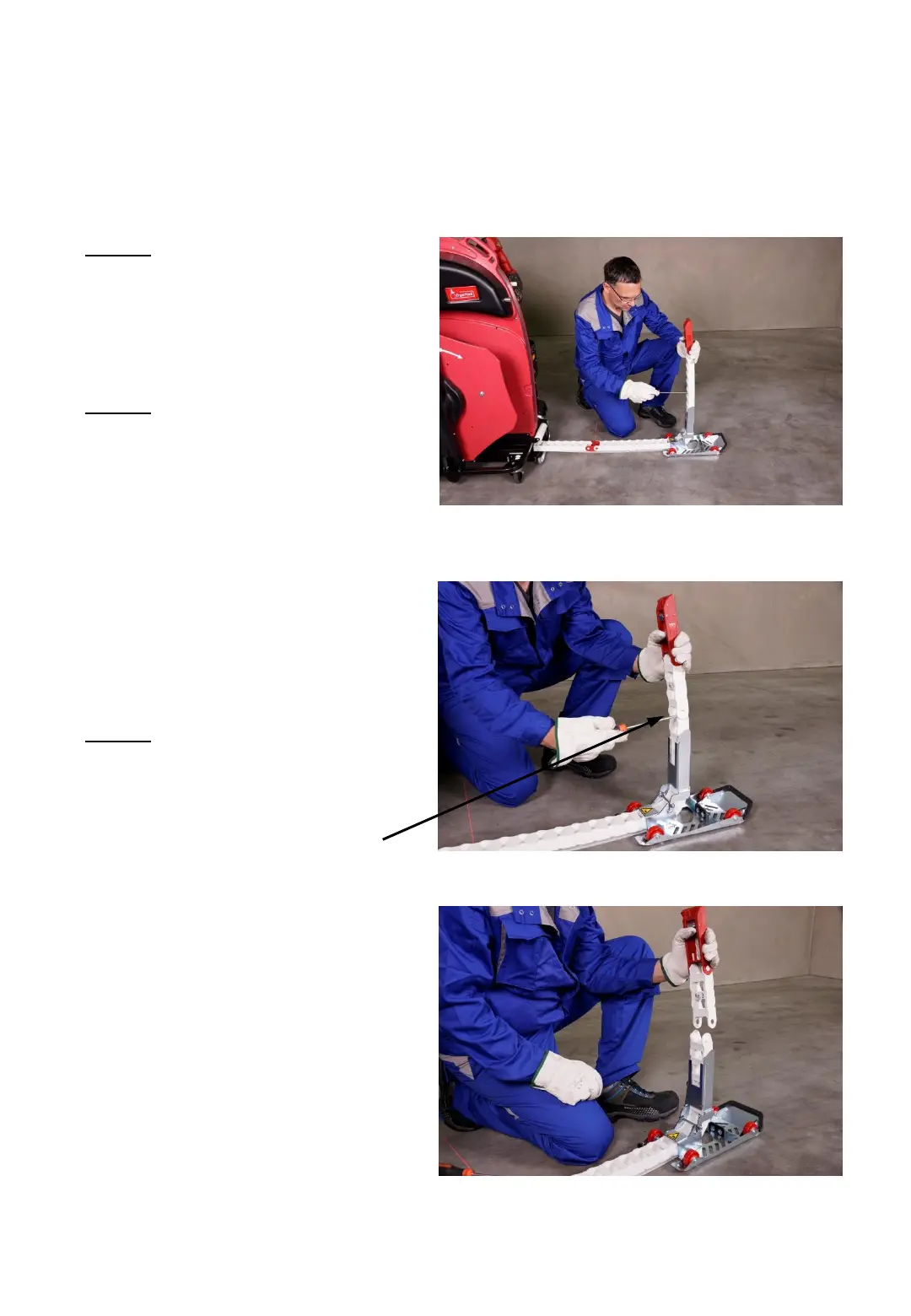

7.4 Replacing the reversing sledge
1. Step
Disconnect the main power
supply cable from the battery
pack.
2. Step
Pull the reversing sledge by
about 1 m out of the strapping
system, fold up the hinge at
the reversing sledge
and pull out approx. 60 cm of
the chain upwards as
illustrated.
3. Step
Press a screw driver between
the wings of two chain links
(there is a small groove
between the two wings to put
the screw driver to) and slew
the chain to the side until it
fully separates.
- 58 -
Fig. 79
Fig. 78
Fig. 77
