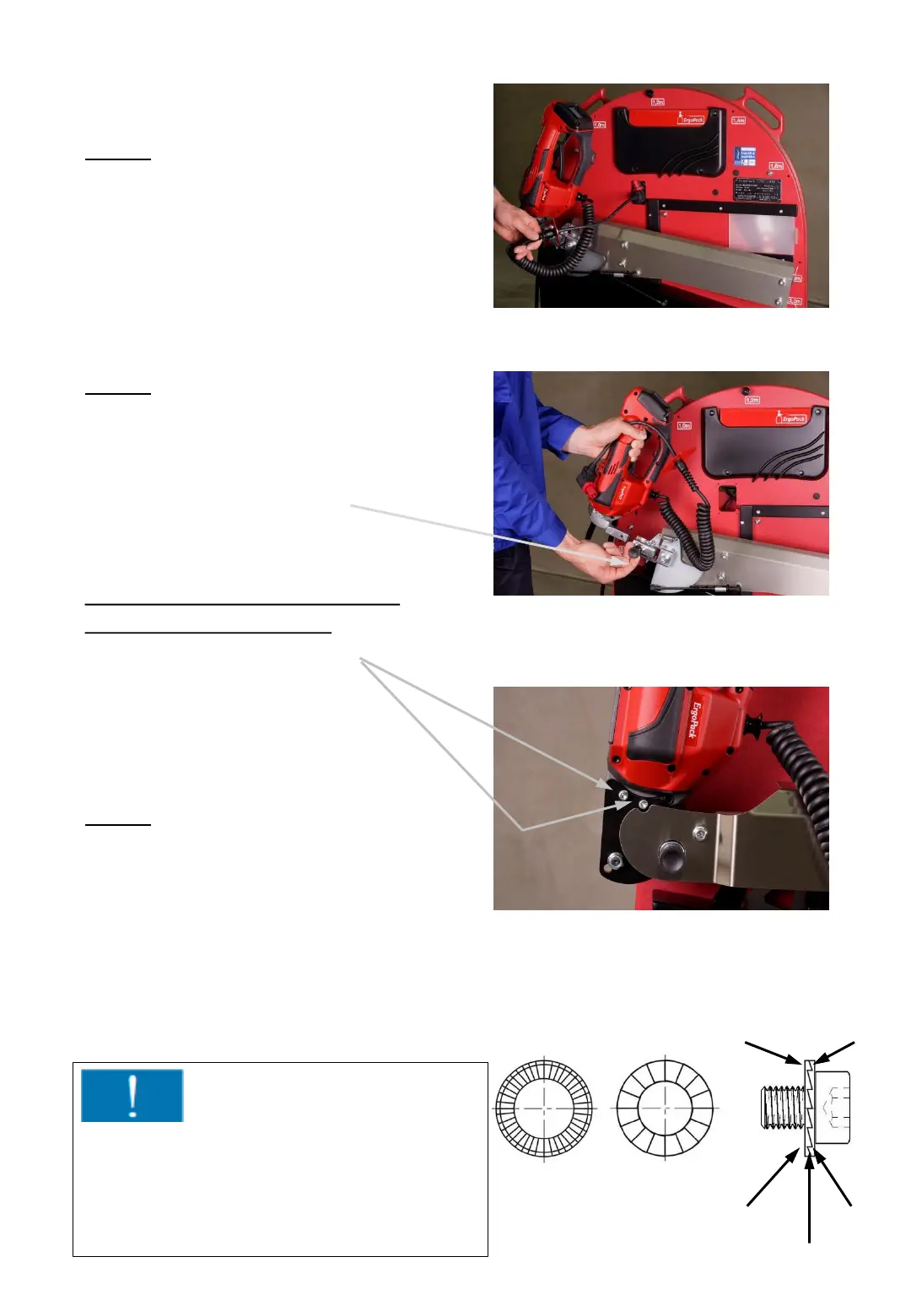

4. Step
Pull the cable with the plug through
the opening in the storage plates.
5. Step
Pull out the locking bolt for
unlocking the sealing head and
remove the sealing head.
- 63 -
If your unit is equipped with the
optional Triplex-Tool-Lift:
Remove both screws M5 (4mm
Allen wrench). These screws
are secured with special
wedge-lock washers (The wedge-
lock washers can be reused).
6. Step
The mounting of the sealing head is to
be done in reversed order of the
dismantling.
When mounting the cover of the
control unit, take care to engage it first
at the level of the cutter and then all
along the groove.
Fig. 92
rough
(inward)
tenuous
(outward)
washer 1 washer 2
tenuous
rough
tenuous
Fig. 89
Fig. 90
Fig. 91
When mounting the sealing head again
make sure that the rough tooth system of
the two wedge-lock washers are facing
(Fig. 92)
