ESAB CUTMASTER 100
300X5397 INSTALLATION
3-3
NOTE!
For a secure seal, apply thread sealant to the tting threads, according to the maker's
instructions. Do Not use Teon tape as a thread sealer, as small particles of the tape may
break off and block the small air passages in the torch. Connect as follows:
Ar
t # A-07944
Hose Clam
p
1/4 NPT to 1/4"
(6mm) Fitting
Regulator/Filter
Assembly
Inlet Port
Gas Supply
Hose

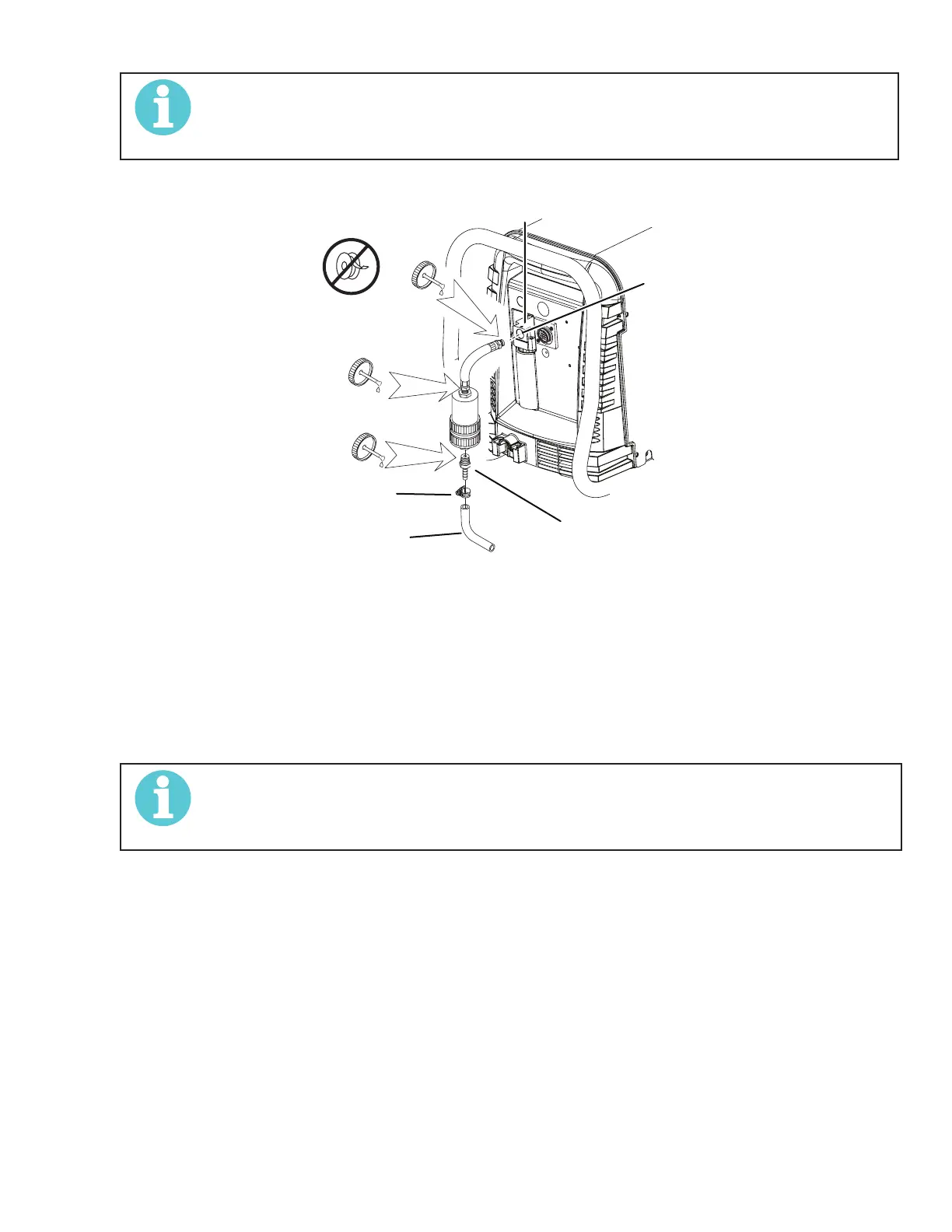

Optional Single - Stage Filter Installation
Installing Optional Two - Stage Air Filter Kit
This optional two - stage air line lter is also for use on compressed air shop systems. Filter removes moisture and
contaminants to at least 5 microns.
Connect the air supply as follows:
1. Attach the Two Stage Filter bracket to the back of the power supply per instructions supplied with the lter
assembly.
NOTE!
For a secure seal, apply thread sealant to the tting threads according to manufacturer's
instructions. Do Not use Teon tape as a thread sealer as small particles of the tape may
break off and block the small air passages in the torch.
2. Connect the two stage lter outlet hose to the inlet port of the Regulator / Filter Assembly.
3. Use customer - supplied ttings to connect the air line to the Filter. A 1/4 NPT to 1/4" hose barbed tting is
shown as an example.
