5.06 Power Supply Basic Parts Replacement
WARNING
Disconnect primary power to the system
before disassembling the torch, leads, or
power supply.
This section describes procedures for basic parts replacement. For more detailed parts replacement procedures,
refer to the Power Supply Service Manual.
A. Filter Element Assembly Replacement
The Filter Element Assembly (9-0116) is in the rear panel. For better system performance, the filter element should
be checked per the Maintenance Schedule (Section 5.02), and either cleaned or replaced.

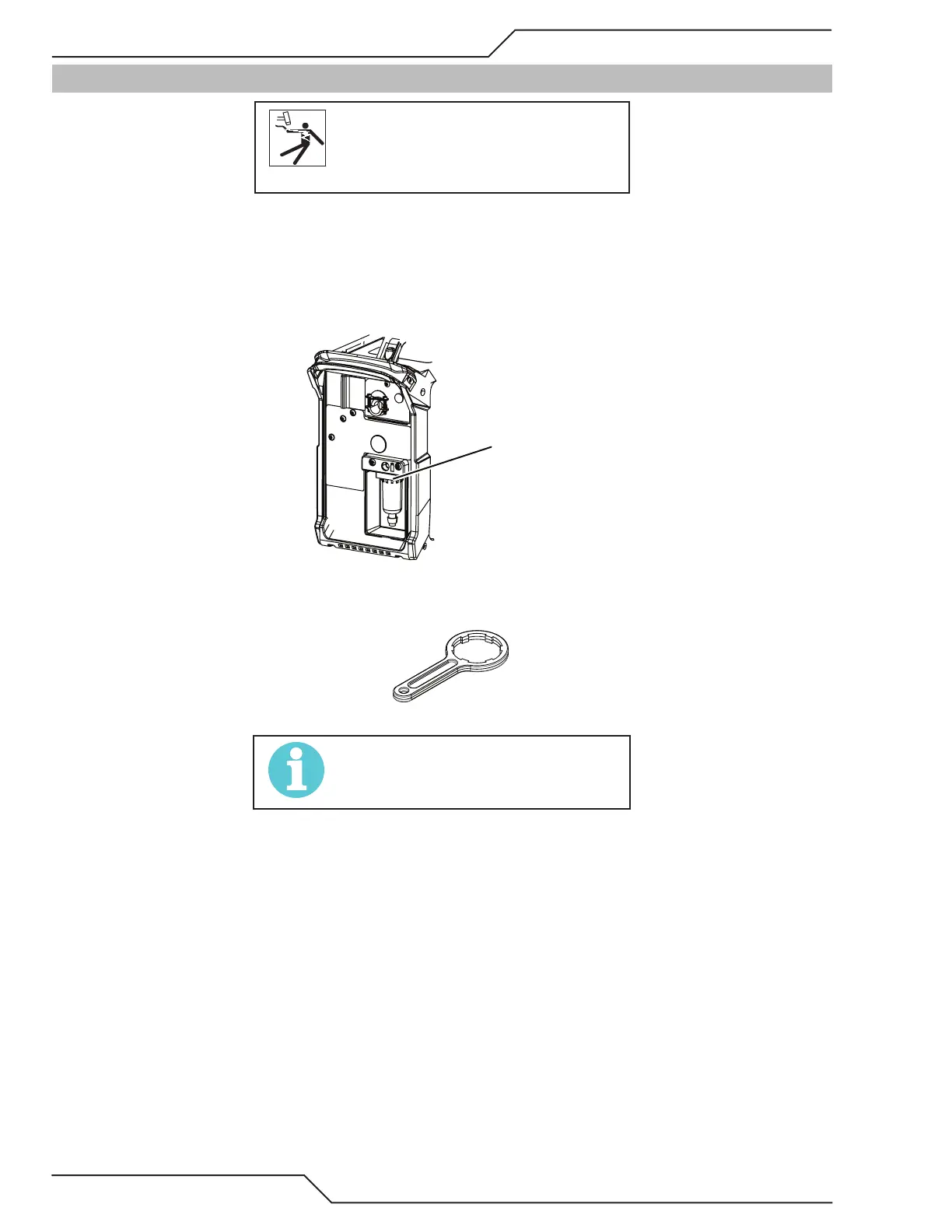

Regulator/Filter
Assembly
Art # A-13255
1. Remove power from the power supply; turn OFF the gas supply and bleed down the system.
2. Remove the clear filter bowl with wrench provided with the system 9-9675.
NOTE!
Filter replacement part numbers can be
found in Section 6 of this manual
