ESAB CUTMASTER 60i
INTRODUCTION Manual 0-5488
2-4
21.121"
536.47 mm
16.2 kg / 36 lb
7.847
199.3 mm
14.146"
359.3 mm
Art # A-13357
15"
381 mm
6"
150 mm
15"
381 mm
6"
150 mm
Art # A-13247

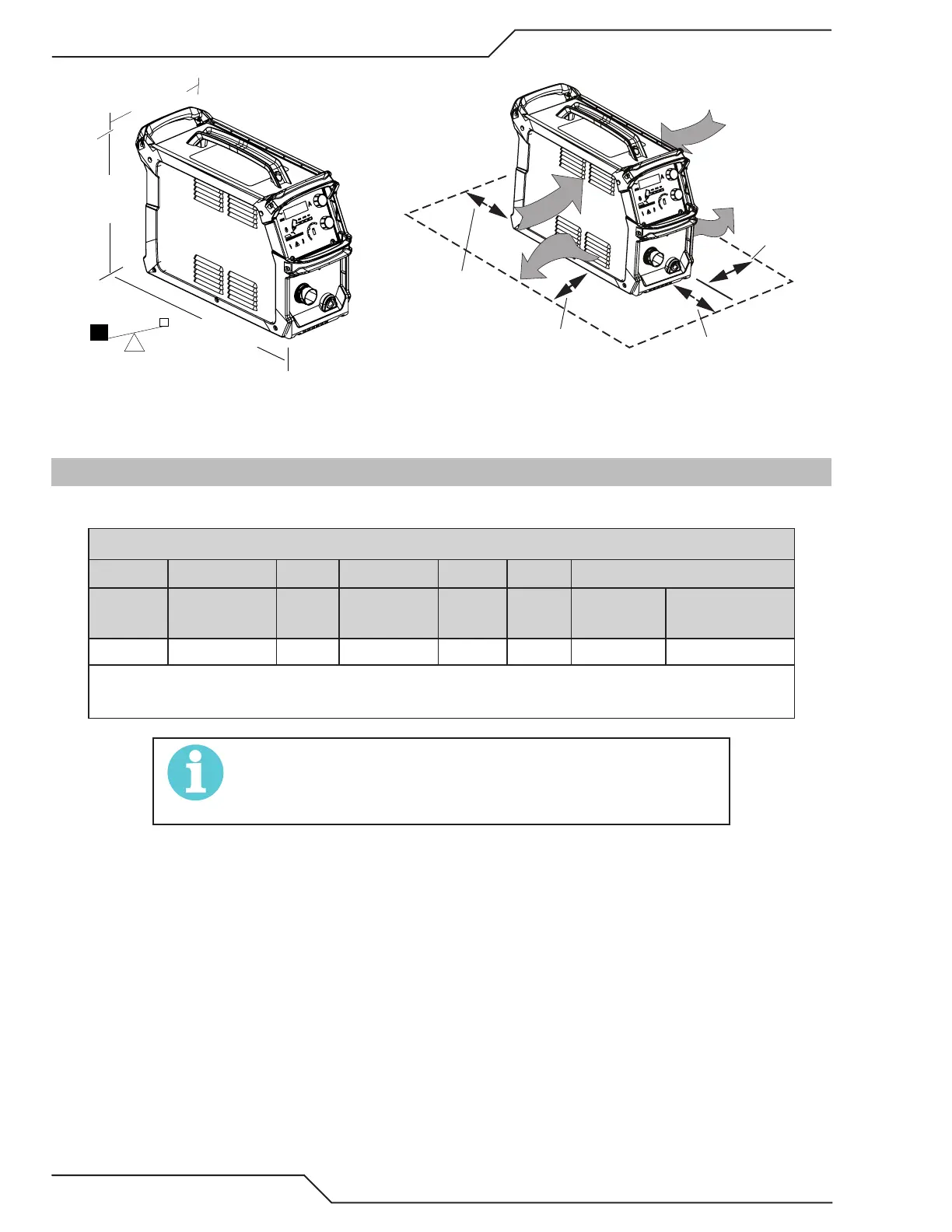

Power Supply Dimensions & Weight Ventilation Clearance Requirements
2.05 Input Wiring Speciļ¬cations
3 Phase
3 Phase CutMaster 60i Power Supply Input Cable Wiring Requirements
Input voltage Freq Power Input Suggested Sizes
Volts Hz kVA I max I
1
eff Fuse (amps)
Flexible Cord (Min.
AWG)
3 Phase 400 50/60 8.9 13.2 9.4 20 14 AWG (2.5mm
2
)
Line Voltages with Suggested Circuit Protection and Wire Sizes
Based on National Electric Code and Canadian Electric Code
Three Phase
NOTE!
Refer to Local and National Codes or local authority having jurisdiction for
proper wiring requirements.
Cable size is de-rated based on the Duty Cycle of the equipment.
