19
SECTION 3 INSTALLATION
e. Connect shield gas hose (if used) to the shield gas tting (‘B’ size left-hand thread-
ed male tting). Hose has left-hand female tting.
f. Connect plasma cut gas (‘B’ size right-hand threaded female tting). Hose has
right-hand male tting.
g. Connect the switch lead.
Note:
The PT-26M requires an auxiliary pilot ON switch box. Item number
1 at the left is not included in the PT-26M torch bundle. See next
page for details.

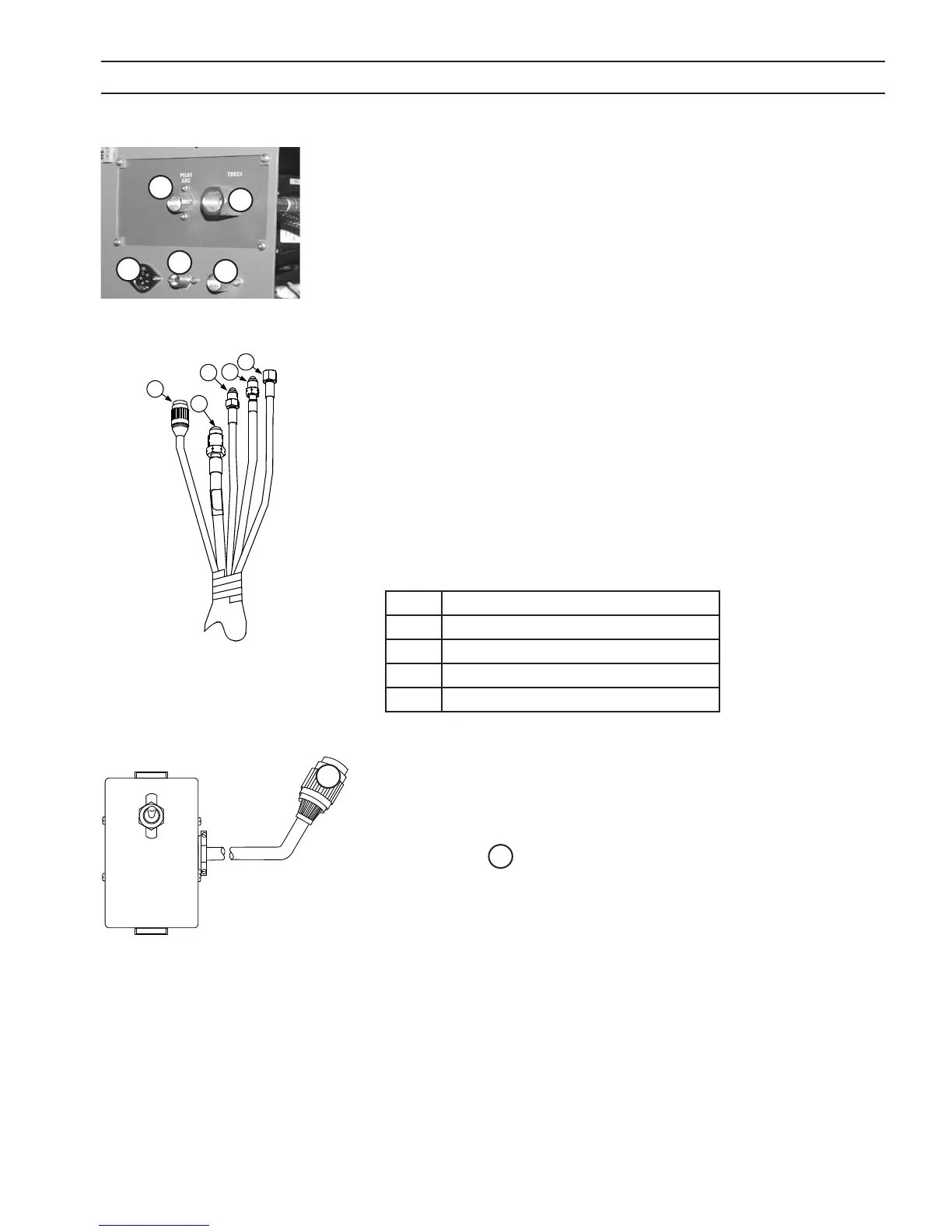

PT-26 Torch Bundle Leads
1 Switch Lead
2 Electrode Cable/Coolant Supply Hose
3 Plasma Cut Gas Hose
4 Coolant Return Hose
5 Shield Gas Hose
Pilot ON Switch Box.
Used with a PT-26 mechanized plasma torch.
Connect cable , same as Step (g) from the immediately above, to adapt
the mechanized version of the PT-26 plasma torch.
1
2
3
4
5
1
1
