SECTION 3 INSTALLATION
2. Re-install side panel.

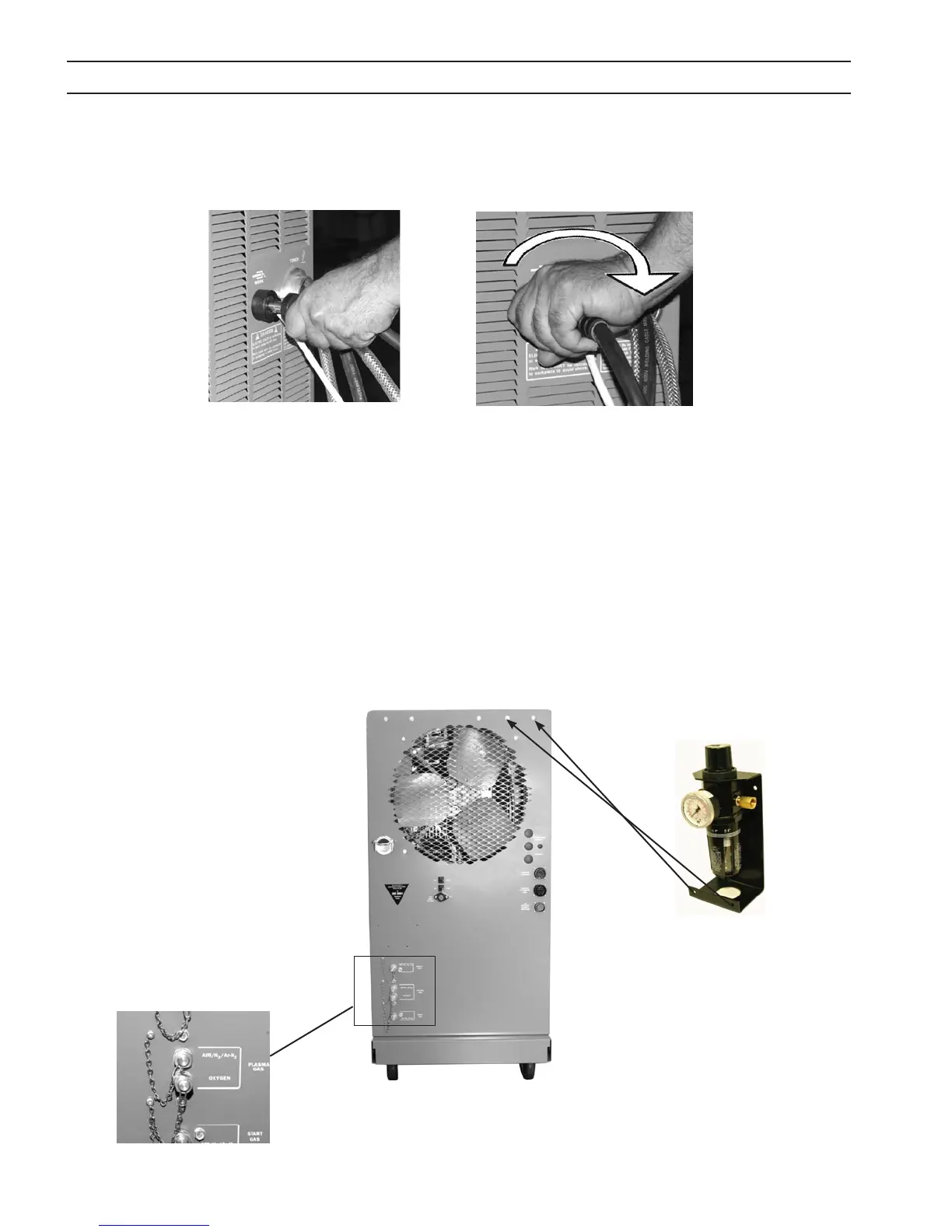

3. Connect work cable to work connection on front panel.
Insert and rotate clockwise until tight. Approximately ½ turn.
4. Assemble lter regulator and mounting bracket (P/N 30338) to the upper right corner on rear panel (as viewed from the
rear).
Note:
A second lter/regulator can be mounted on the left.
5. Connect air hose assembly (P/N 678152) to lter regulator outlet tting and to the N2/Air plasma gas tting on the rear
panel.
Note:
The air hose assembly has a left-hand threaded nut tting on one end and a right-hand threaded nut on
the other.
6. Connect your air supply to the inlet port on lter regulator. (1/4 inch NPT female – customer supplied)
