SECTION 3 INSTALLATION

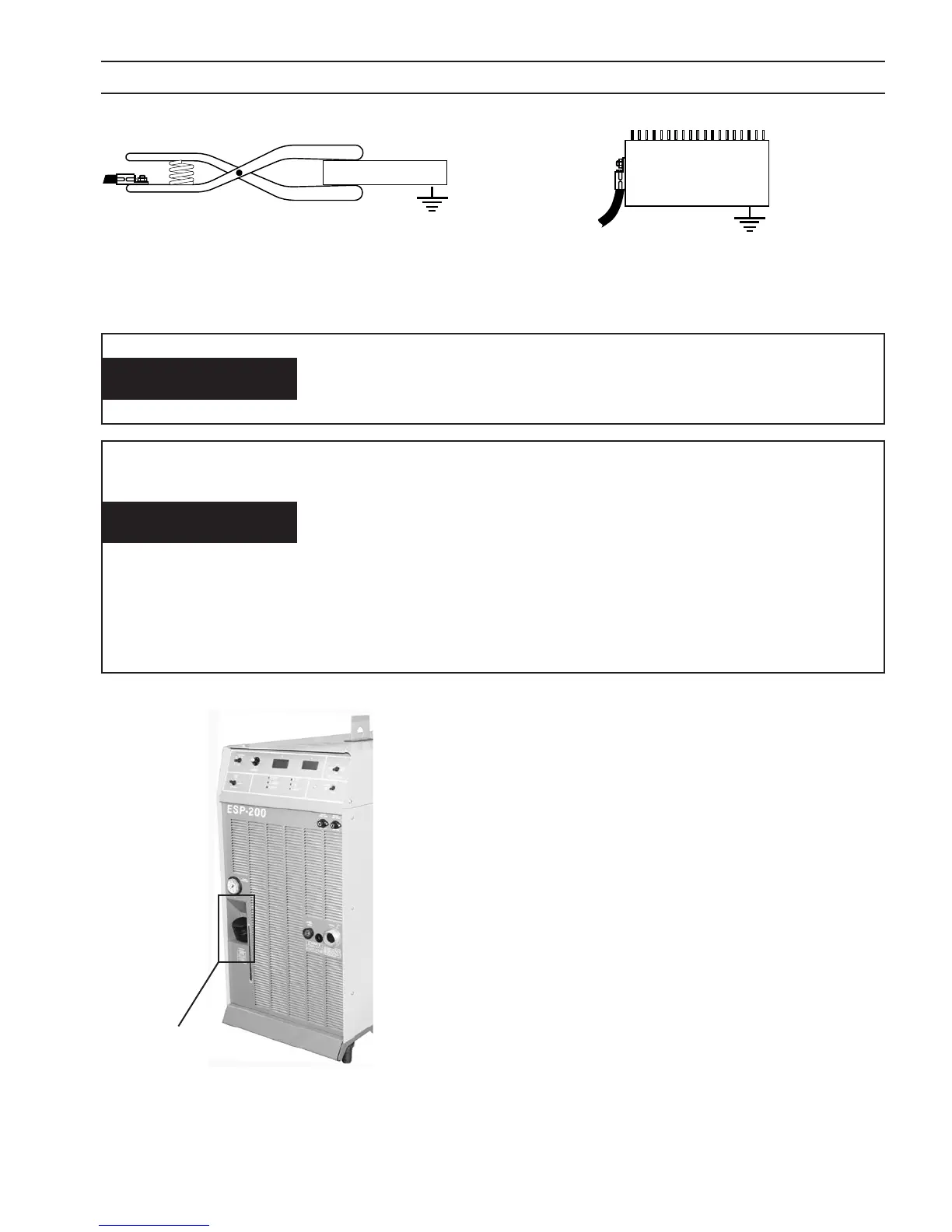

7. Connect the other end of work cable to workpiece or cutting table. Connection must be made to a clean, exposed
metal surface, free of paint, rust, mill scale, etc.
Work ground to work piece
Work ground to cutting table
ELECTRIC CURRENT IS HAZARDOUS.
IT IS IMPORTANT TO HAVE A GOOD EARTH GROUND CONNECTED
TO THE WORKPIECE OR CUTTING TABLE.
WARNING
Commercial Antifreeze Will Cause Torch To Malfunction.
Use special torch coolant. P/N 156F05
Due to high electrical conductivity, DO NOT use tap water or com-
mercial automotive type antifreeze for torch cooling. A specially
formulated torch coolant is REQUIRED. This coolant also protects
from freezing to –34 degrees C. Operating the unit without coolant
will cause permanent damage to the coolant pump. Check coolant
level frequently.
CAUTION
8. Remove coolant ll cap at front console and ll coolant tank with 4
gallons (15 liters) of plasma torch coolant, P/N 156F05 (one gallon).
Do not ll above indicated maximum level.•
Reinstall cap.•
Coolant Fill Cap
