Escene ES220 - Page 63

2xx Series IP Phone
www.escene.cn/en/
Escene Communication
63
string value:
192.168.0.201(TFTP Server IP Address);
9) Click the “OK” button

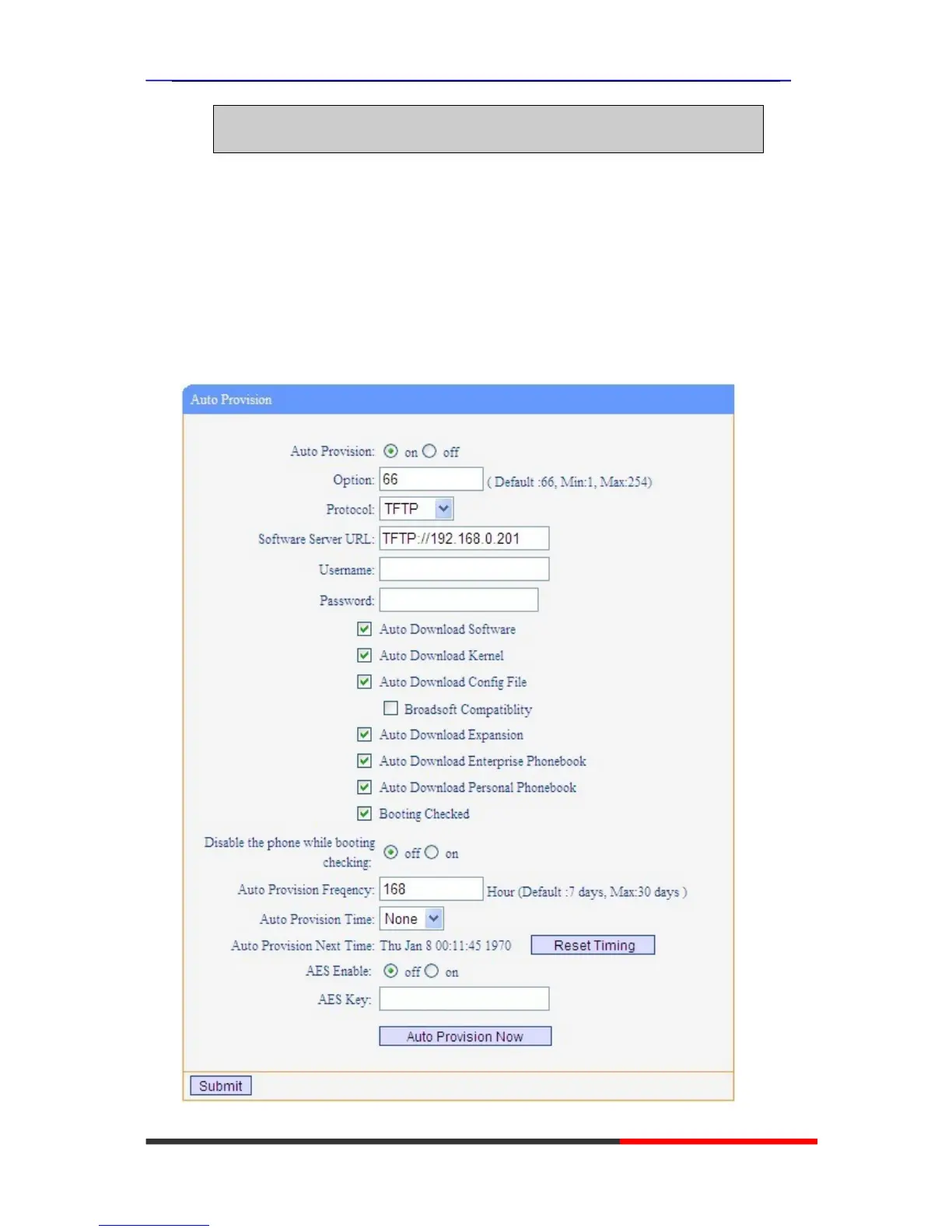

3.2 Configure parameters in Auto Provision Web page
 Login in IP Phone web:
1. Input the IP Phone’s IP Address in browser;
2. Enter user and password with “root” then open the web page;
3. Click “Phone Maintenance” and select “Auto Provision”;
4. select like as follows:
