eschmann T20-a - Major Dimensions and Movements

P10/54 T-SM47j
These are maximum movements for each aspect, they may not be available in certain combinations (e.g. maximum
tilt and maximum Trendelenburg). Movements that could cause damage cannot be catered for (e.g. position of the
leg section).

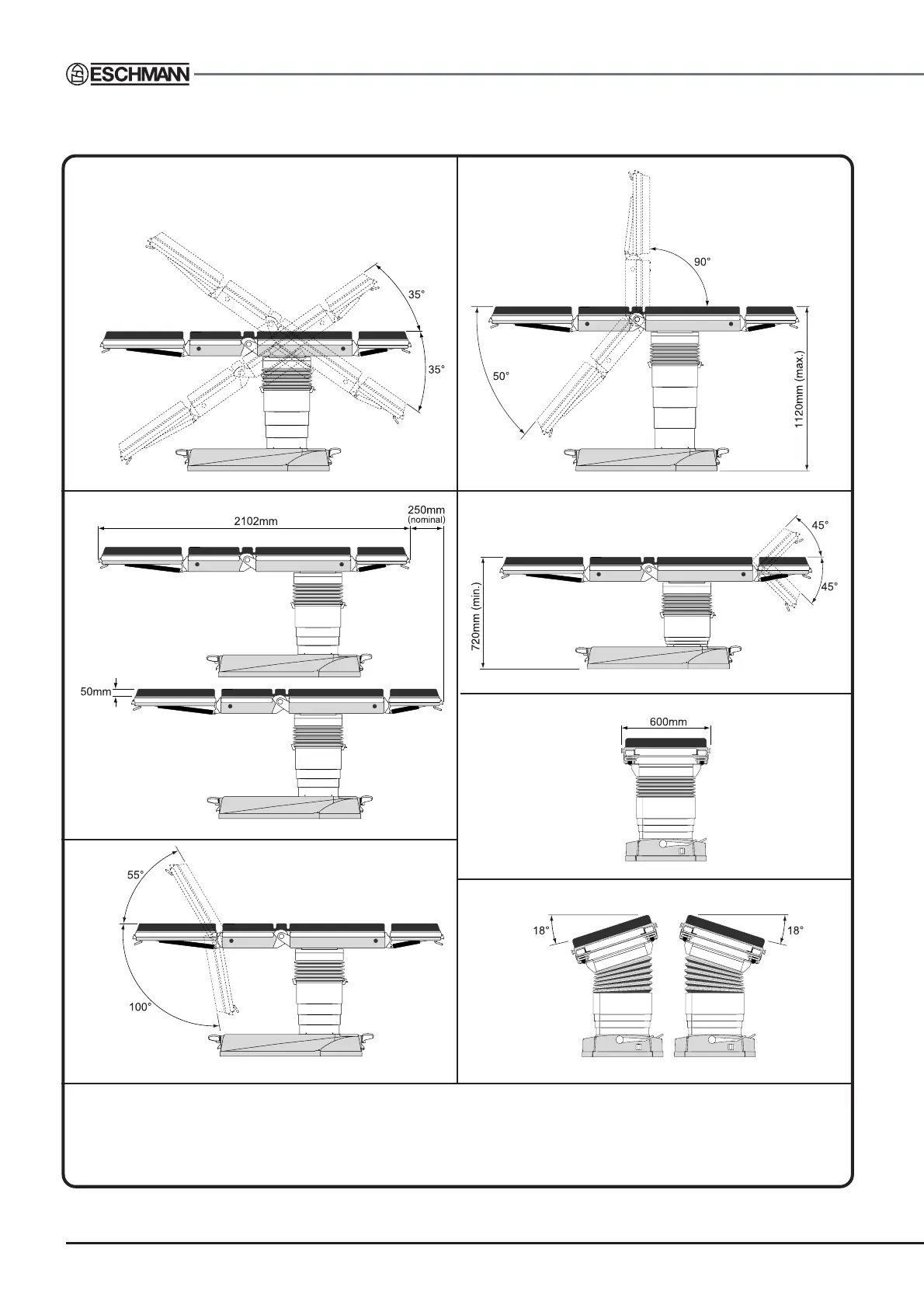

Fig. 2.1 Major dimensions and movements
1
2
3
4
5
6
7
(see section 2.2)
(see section 2.2)
