P40/54 T-SM47j

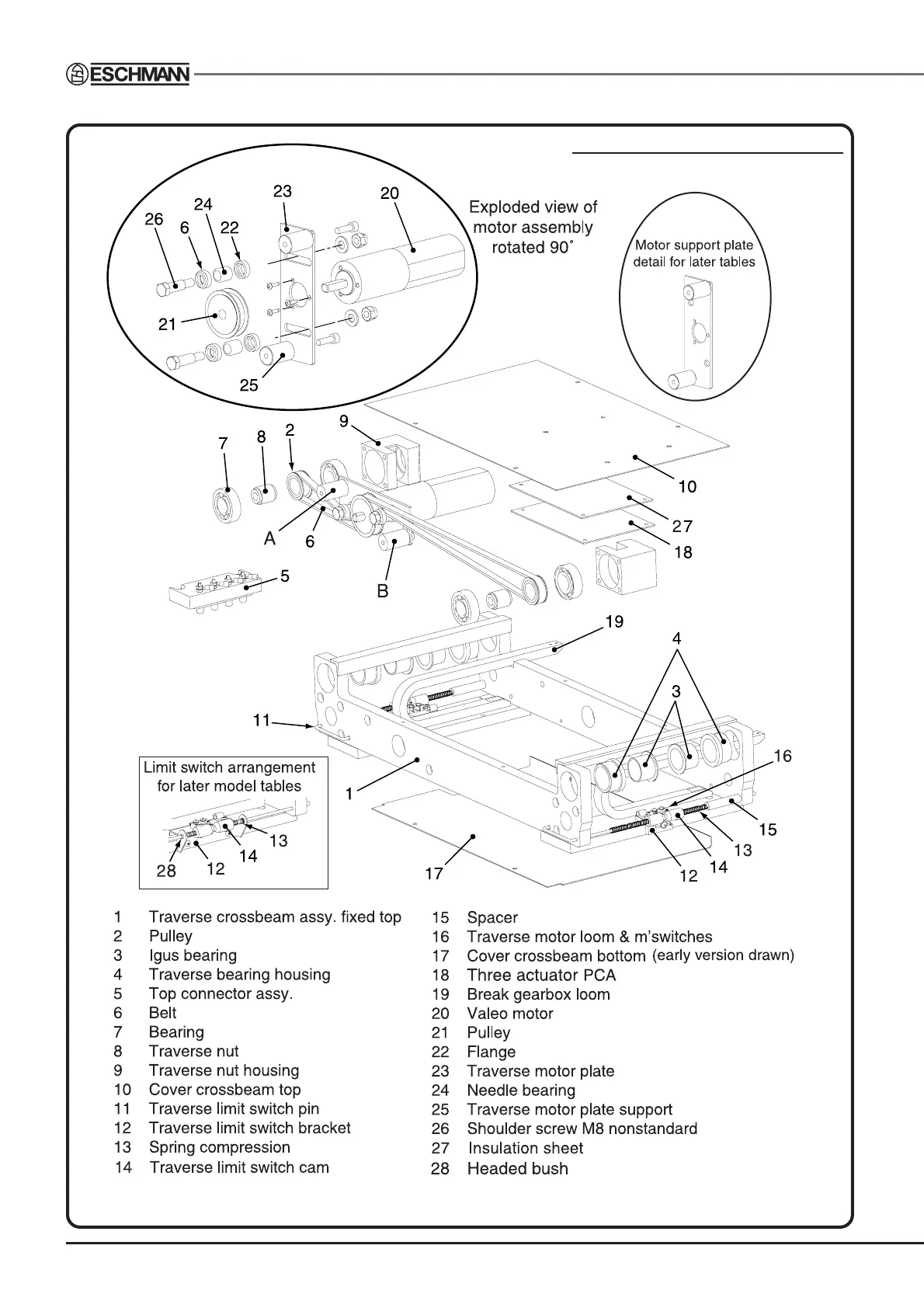

Fig. 6.7 Table traverse general arrangement
Torque settings
M10 screw (fixing to column) = 48Nm
M6 skt. hd. fixing screw = 9 Nm
