Esco Class II User Manual

1
Class II Biological Safety Cabinet
Chapter 1 - Product Information

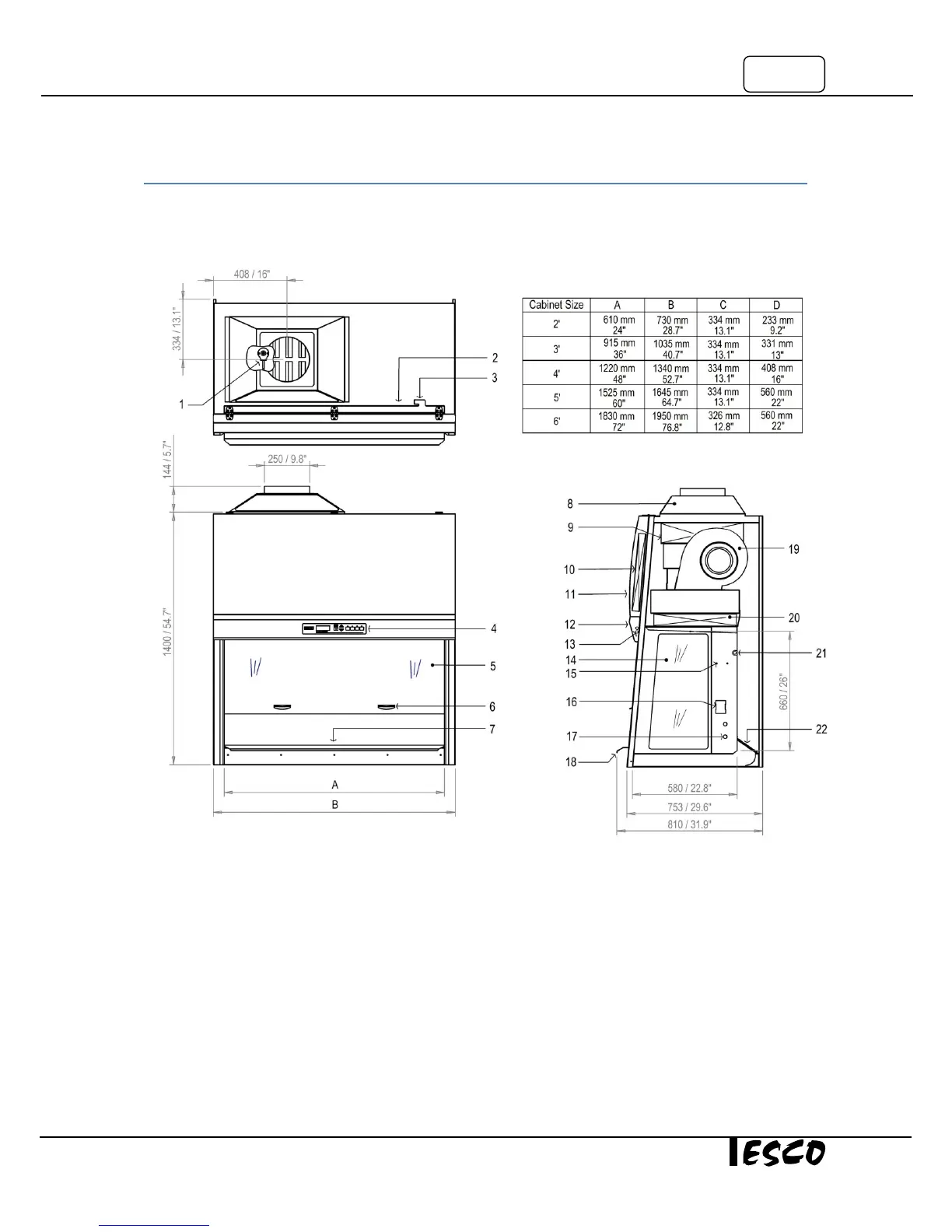

1.1. Quick View AC2 3G
1. Airflow Sensor
2. RS232 Port
3. Power Inlet
4. Sentinel Gold Control System
5. Sash Window
6. Sash Handle
7. Work tray
Figure 1.1. AC2 Gen 3 general parts.
8. Exhaust Collar (Optional)
9. Exhaust ULPA Filter
10. Electrical Panel
11. Curved Front Panel
12. Display Panel
13. Fluorescent Lamps
14. Side Window
15. IV Bar Retrofit Kit Provision
16. Electrical Outlet Kit Provision
17. Service Fixture Kit Provision
18. Stainless Steel Armrest
19. ECM Blower
20. Downflow ULPA Filter
21. UV Lamp
22. Paper Catch (optional pre-filter)

Esco Class II Specifications

General

Lighting	LED
UV Light	Optional
Certification	NSF/ANSI 49, EN 12469
Airflow Pattern	Laminar
Inflow Velocity	0.38 m/s ± 20%
Downflow Velocity	0.25 m/s ± 20%
HEPA Filter Efficiency	99.99% at 0.3 μm
Material	Stainless steel
Noise Level	< 65 dBA
Front Opening	200 mm (8")
Application	Microbiology, cell culture
Type	Biosafety Cabinet
