Accessing the paper catch
The purpose of accessing the paper catch is to remove any retained materials that might cause obstructions to
airflow. Care must be taken as the area is contaminated.

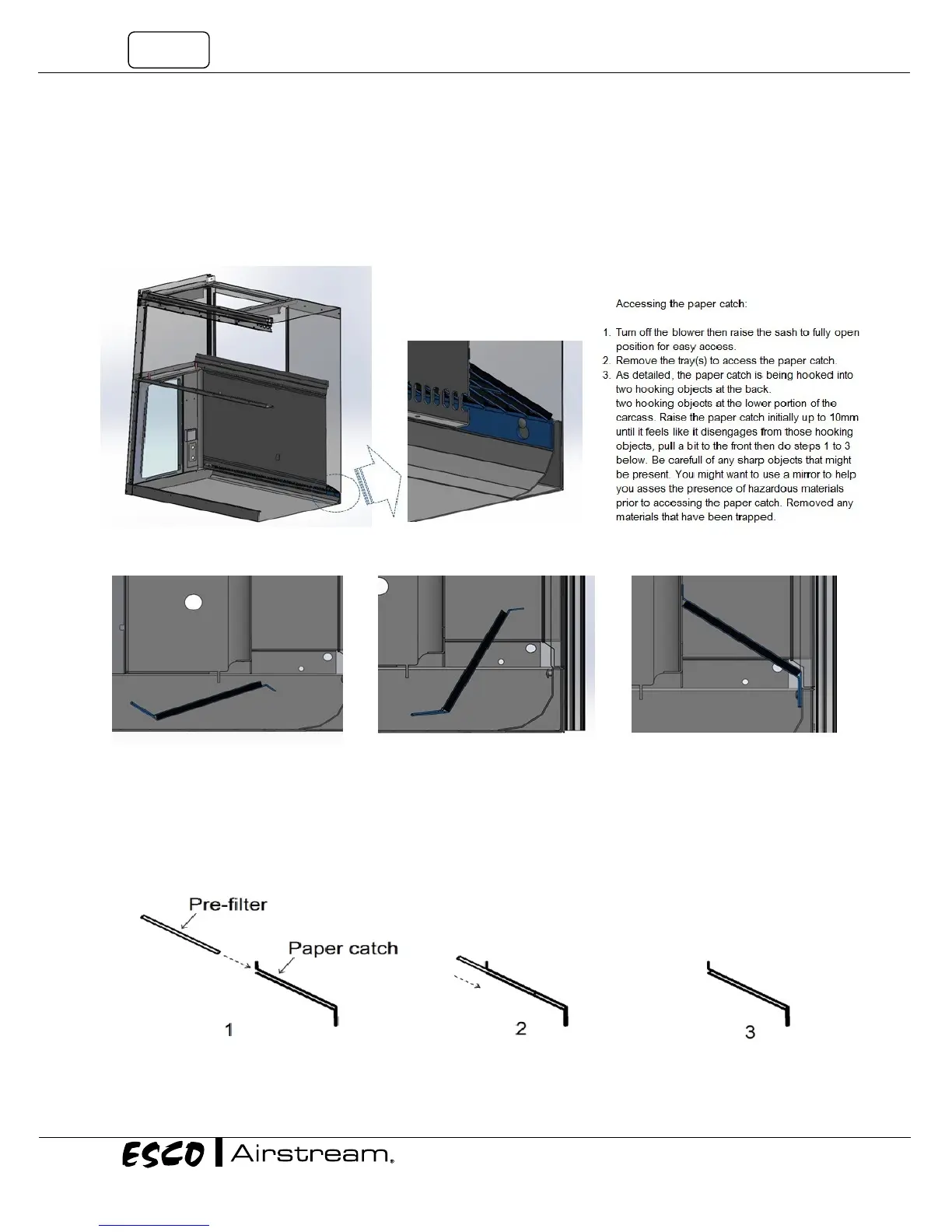

Figure 4.1. Paper catch access.
Pre-filter Installation:
1. Insert the pre-filter to the opening of the paper catch as shown in image 1 above.
2. Push the pre-filter accordingly until it fits into the paper catch as shown in image 2 to 3.
Figure 4.2. Installation of pre-filter.
