21
Primary Display Secondary Display
Primary Display indications: Secondary Display indications:
9. 2
nd
Numeric data display
10. 2
nd
Measurement unit
11. Auto range (AUTO)
12. Remote state (REMOTE)
13. Compare function (COMP)
14. Shift mode (S)
1. Auto range (AUTO)
2. Data/Refresh Hold mode (HOLD)
3. Dynamic recording (MIN MAX)
4. Relative mode (REL)
5. dBm indicator (dBm)
6. Diode/Continuity mode
7. Primary Numeric data display
8. 1
st
Measurement unit
15. Calibration mode (CAL)
16. Trigger mode
1
7
8
11 12 13
15
2 3 4 5 6 9 10
16
14

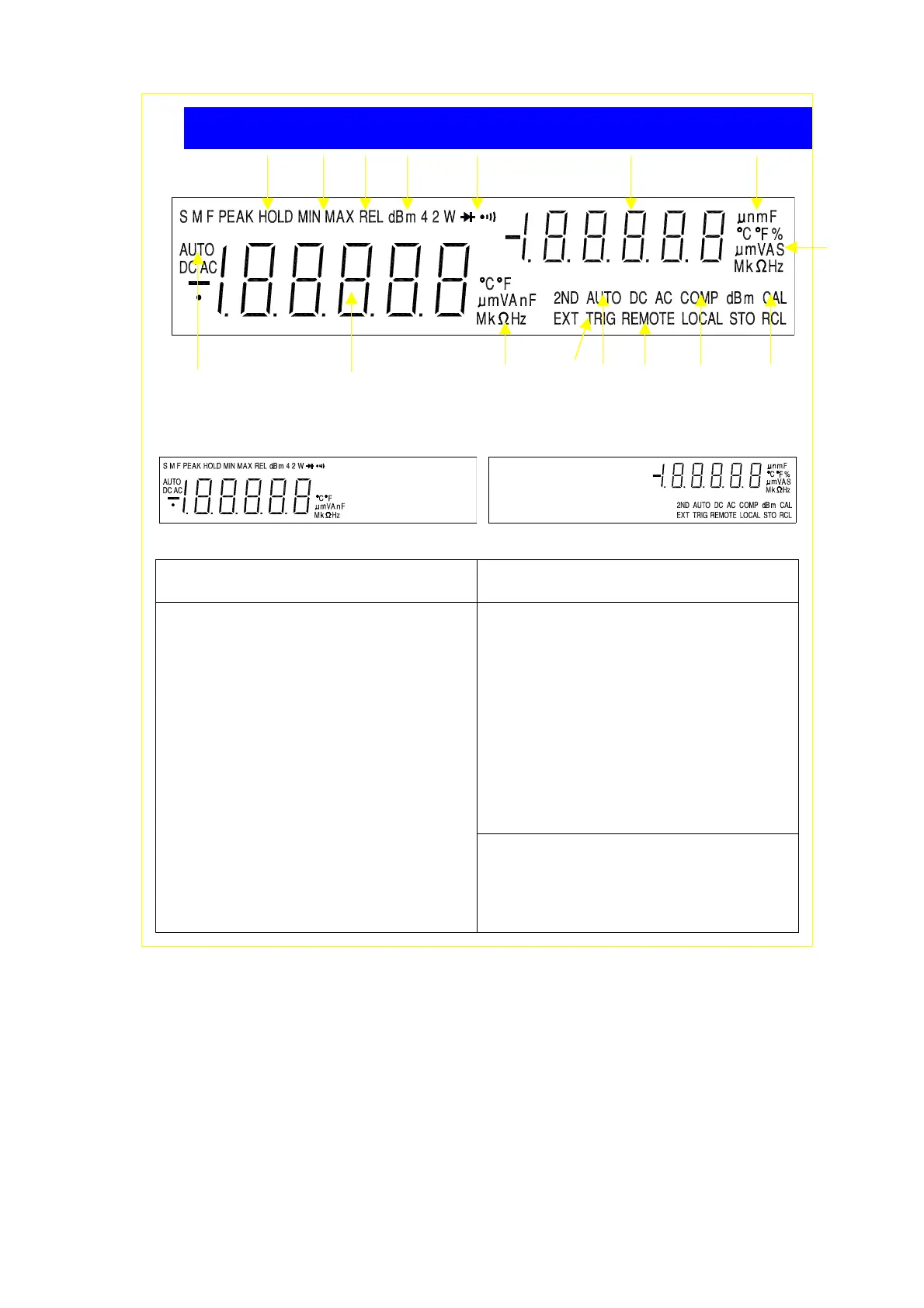

Figure 3-1 Dual Display Illustrations
