3-9 Entering Setup Mode
User may select computer interface, set RS-232 interface (standard) or
GPIB interface (option), and beeper mode on Setup Mode. To ensure the
remote interface will operate appropriately, user may need to configure
the remote interface parameters by following the procedures as shown
below:

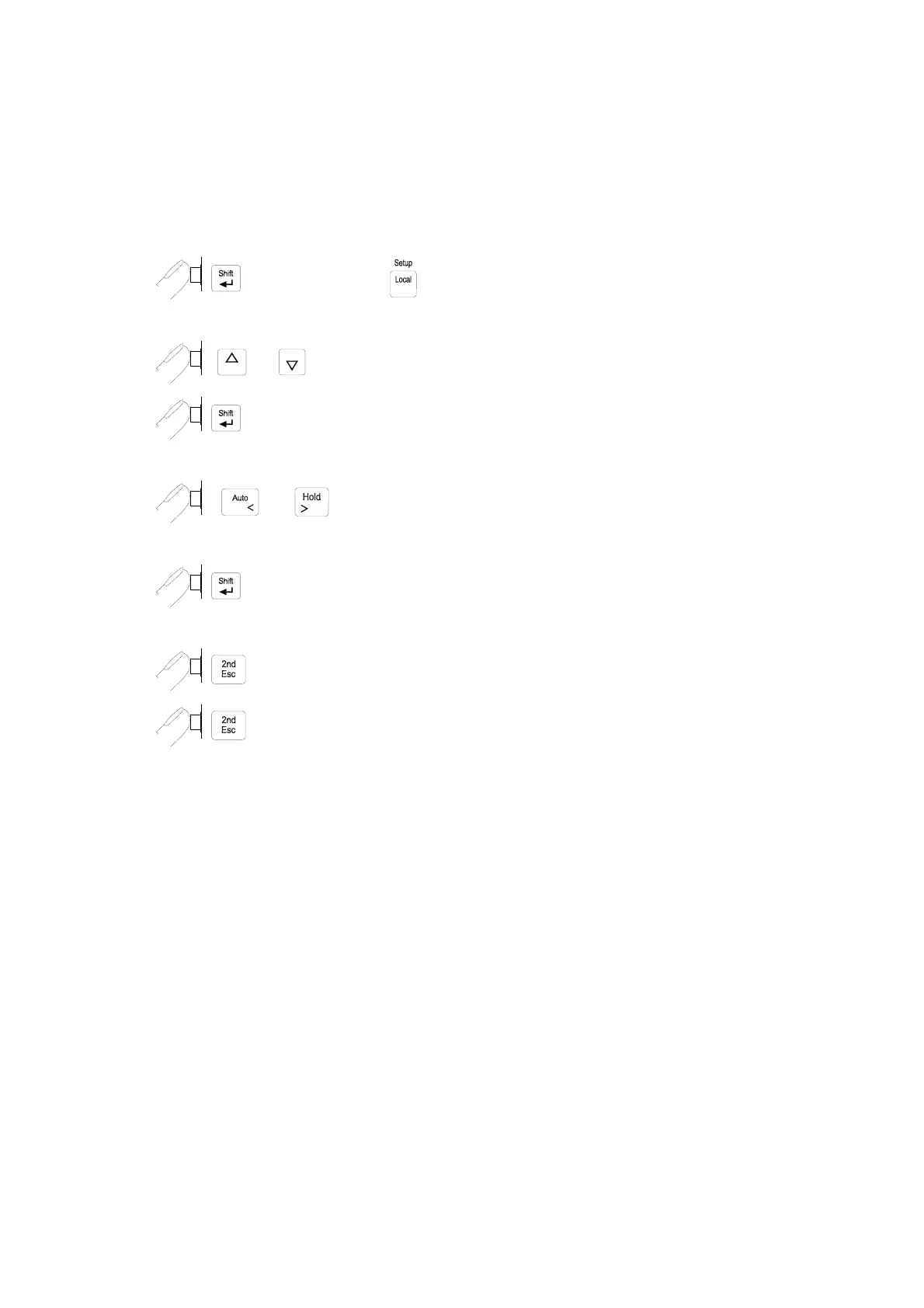

(refer Table 3-5)
then followed by to enter the
setup mode
to configure the
remote interface parameters.
or to select RS232 in first tier menu if necessary.
to enter second tier menu. The original parameter is indicated in
primary display.
or to select the parameters of the menu item. The selecting
parameter will be flashing once it is different to original parameter.
to confirm your changes. The selected parameter is indicated in
primary display without flash.
to quit the second tier menu to first tier menu.
again to quit setup mode and save all parameters into non-volatile
memory then.
Table 3-5 describes the outline of the setup menu item and indicates the factory
settings and user selectable communication parameters for using RS-232 interface
(standard) and GPIB interface (option). Some menu items would not appear once
GPIB interface didn’t install.
