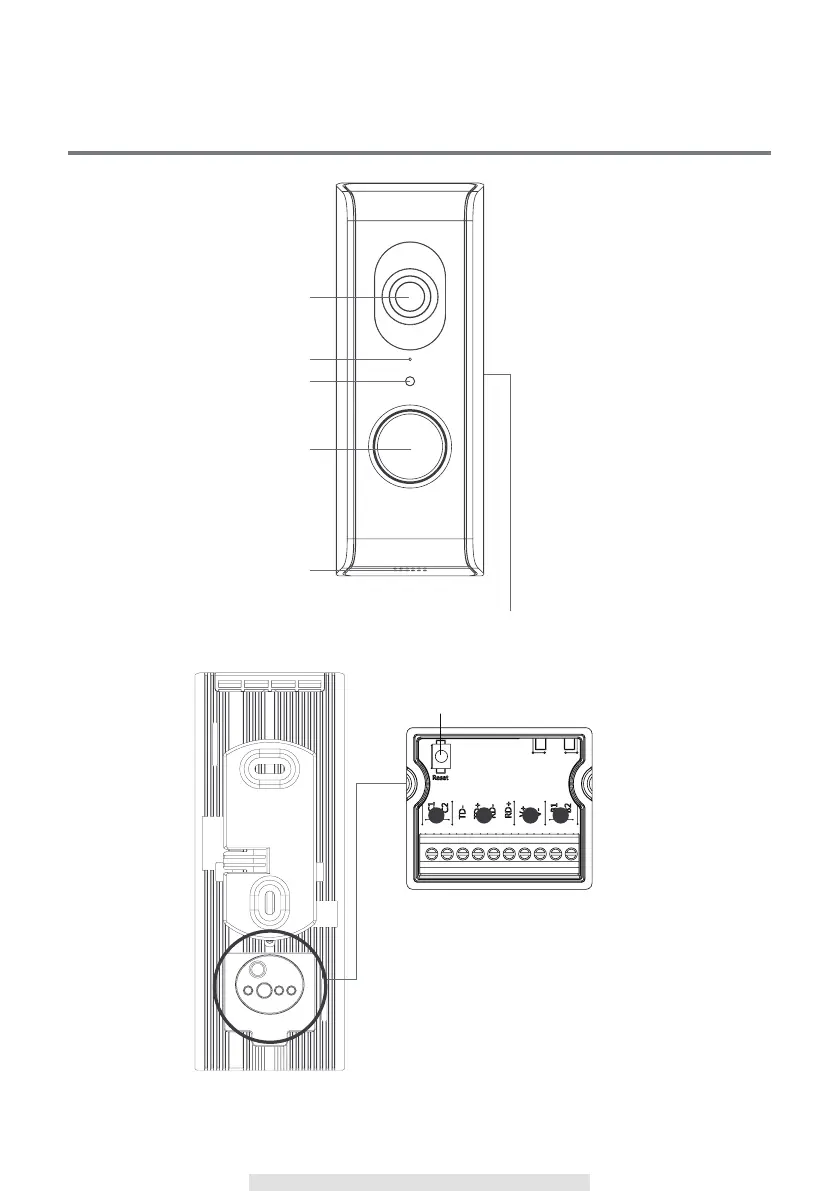

HARDWARE OVERVIEW
Memory Card Slot
Push Button
Microphone
Light sensor
Full HD Camera
Speaker
I/O Pin Connector
1.B2/B1: Dry Contact I/O for door lock
2. V-/V+: Power Input I/O*
3. RD+/RD-/TD+/TD-: Ethernet Cable I/O*
4. C2/C1: Dry Contact I/O for door chime
Reset Button
*Power input jack can be safely connected
with DC 9~48V power cable in any polarity.
Not support AC power input.
*Ethernet cable not included in the package.
