MAGDUO Control Panel Engineering and Commissioning Manual
26-1649-03
Expansion Cards
There are two expansion card options available for the MAGDUO4. Part number MAGDUOZC4 will
provide 4 additional MAGDUO zones and part number MAGDUOCC4 will provide an additional 4
conventional zones.
The zone expansion card provides an additional 4 MAGDUO zones which converts a MAGDUO4 panel
to an 8 zone panel.
A MAGDUO4 panel fitted with the conventional expansion card would have zones 1 to 4 as MAGDUO
zones and zones 5 to 8 as conventional zones.
The MAGDUO8 contains an 8 zone PCB. This will already have been set up in the factory and
programming options for the extra zones will be enabled.
The MAGDUO2 is not compatible with the expansion cards.
Expansion cards purchased separately will have the interface cable and mounting screws included in
the kit.
Note: conventional zones cannot distinguish between smoke or MCP fire signals.

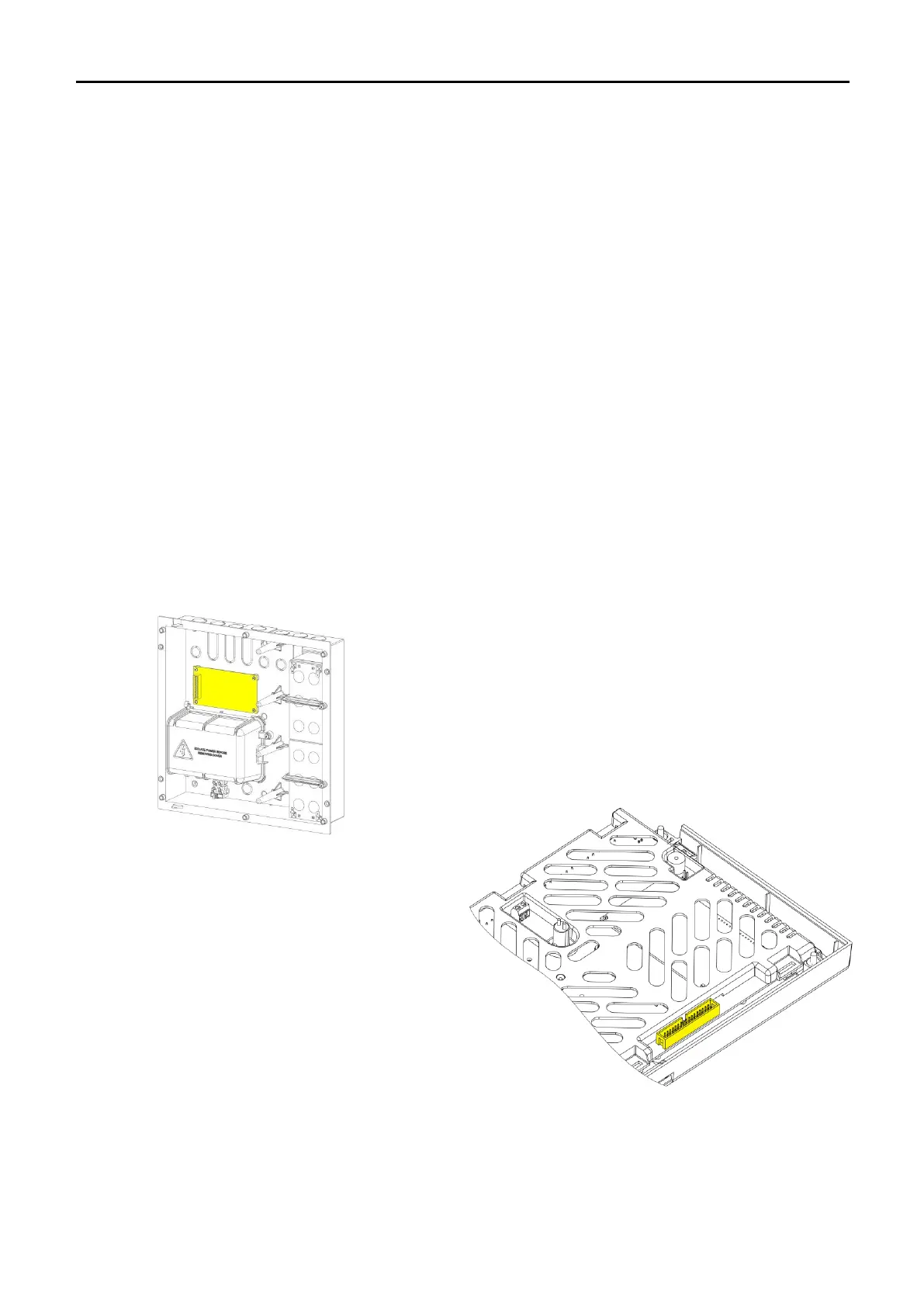

There is a connection using a ribbon cable from the connector
labelled ‘Ribbon Cable to CIE’ on the expansion card to the
connector labelled “Expansion Connector” on the rear of the
CIE PCB.
The ribbon cable has a ferrite fitted at one end.
The end with the ferrite must be connected to the CIE.
