MAGDUO Control Panel Engineering and Commissioning Manual
26-1649-03
External Battery box
Only use the external battery box purchased from ESP which has been approved for use with the
MAGDUO panel.
This must be mounted beneath the MAGDUO panel. A template, conduit bushes and battery
connection leads are provided with the external battery box kit.
When using the external battery box the internal batteries within the panel are not used and must be
removed. The internal battery connection leads must also be removed and are replaced by the battery
connection leads provided with the external battery box.

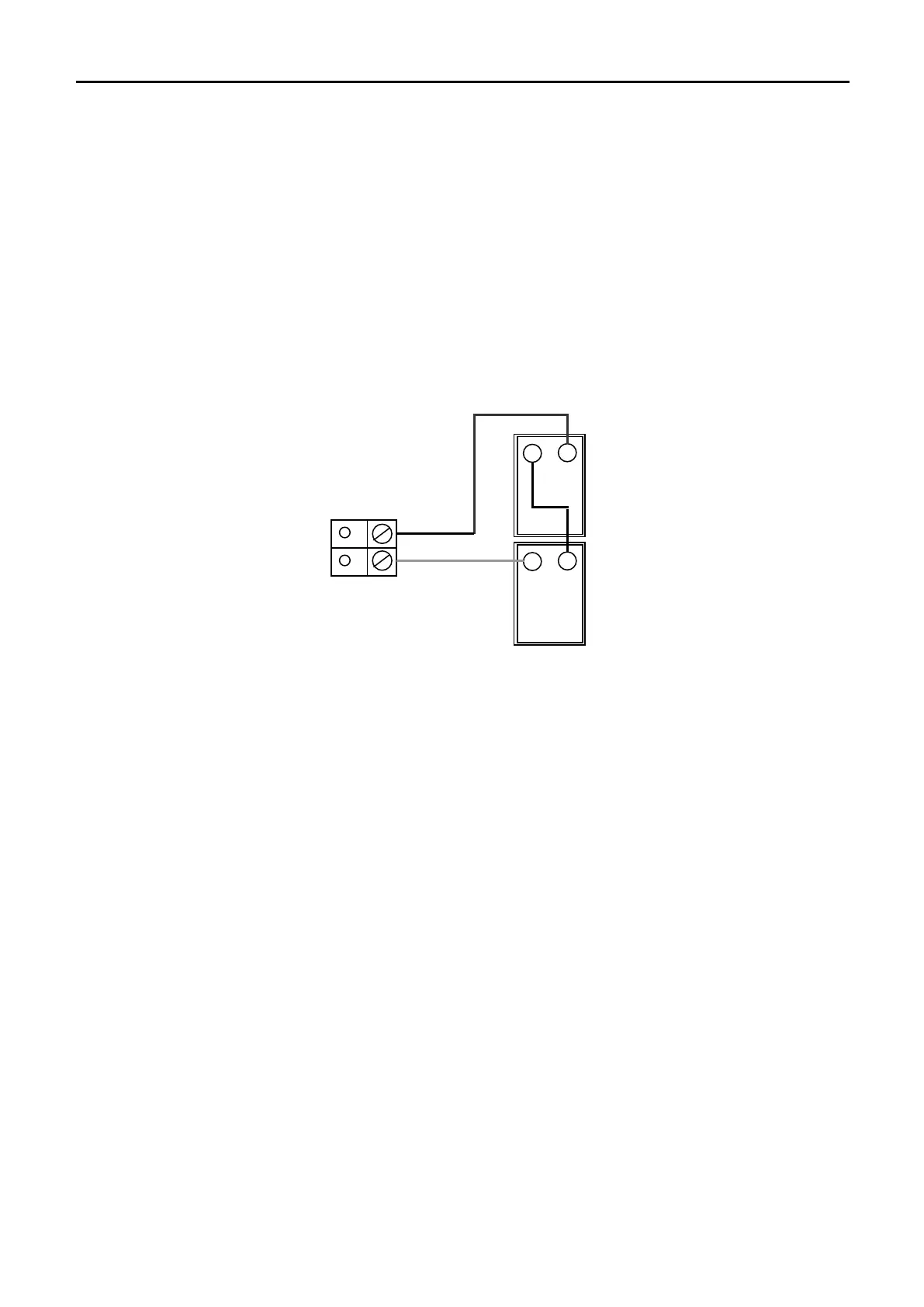

The external battery box will require 2 x 12V 7.0Ah batteries (not provided).
