ESSENCY EXR - Installation Guide; Location and Clearance Requirements

10
INSTALLING THE WATER HEATER
WATER SUPPLY PRESSURE
Minimum Water Pressure: 50 PSI (Recommended
60-80 PSI for maximum performance)
Maximum Water Pressure: 150 PSI
When choosing the location of the water heater,
please take into consideration the following
recommendations.
(Disregarding these recommendations will void the
warranty)
LOCAL INSTALLATION REGULATIONS
This water heater must be installed in accordance with
these instructions, local codes, utility codes, utility
company requirements or, in the absence of local
codes, the latest edition of the National Electrical
Code, which can be found in some local libraries or
can be purchased from the National Fire Protection
Association (website link: https://nfpa.org/).
NOTICE: Please be aware that installation of the
water heater in attics in regions where the outside
air temperature is commonly above 105°F (and
therefore attic temperature can be greater than
140°F) could aect the life of your water heater
electronic controls.
INSTALLATIONS IN CALIFORNIA
For California installation, this water heater must
be braced, anchored, or strapped to avoid falling or
moving during an earthquake.
See following instructions for correct installation
procedures. Detailed instruction may be obtained
from California's Division of the State Architect at
https://dgs.ca.gov/DSA/Contact and from
DSA Headquarters Oce
1102 Q Street, Suite 5100
Sacramento, CA 95811.
4
''
1
7
''
1
/
3
=
2
0
''
2
/
3
=
4
1
''
4
5
''
4
''
1
/
3
=
2
0
''
6'' min.
(152mm)
6'' min.
(152mm)
2'' min.
(51mm)
2'' min.
(51mm)
Wood ledger 2x4
Gypsum /
fire r
ésistant drywall
Seismic straps
73'' (1844mm)
Control
unit

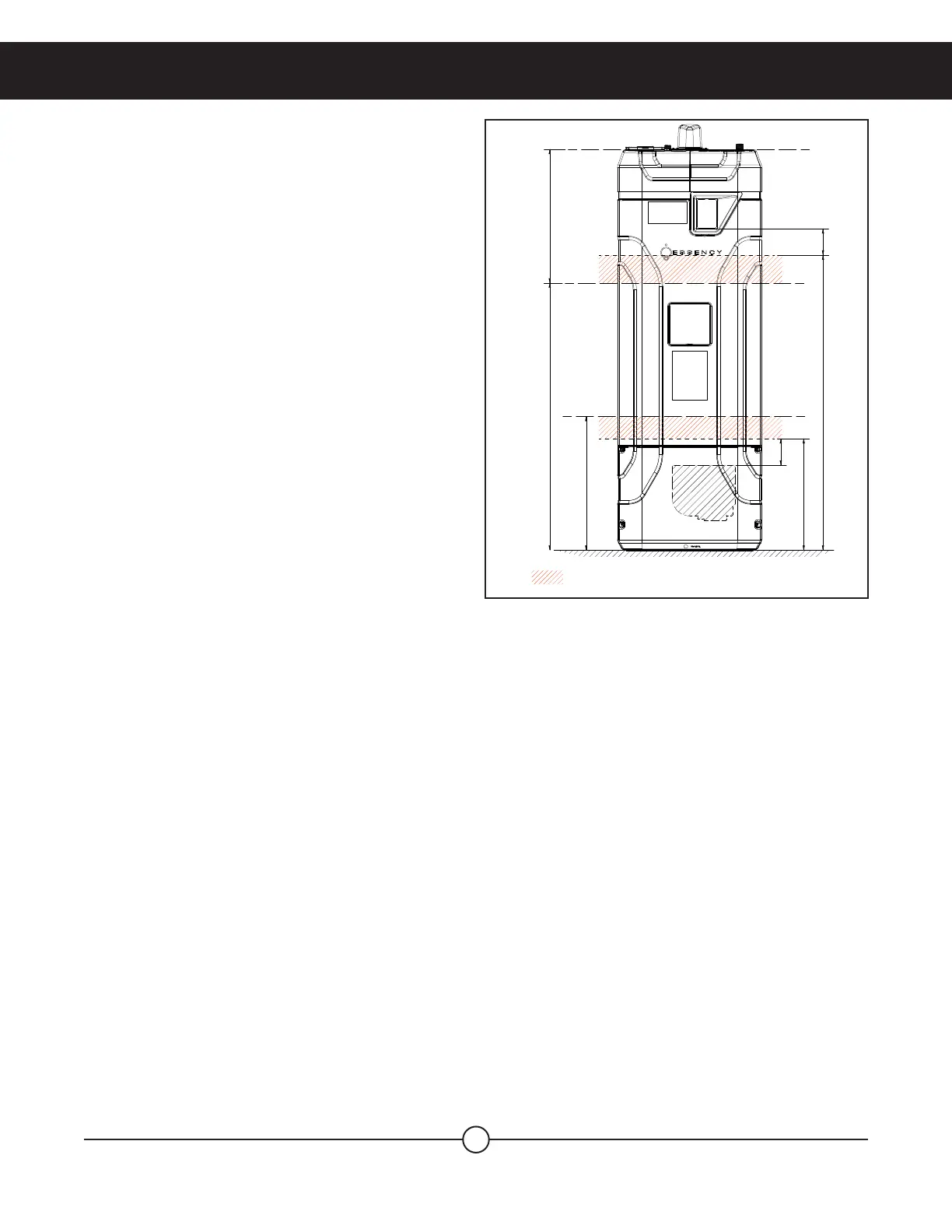

According to IPC/UPC and California plumbing
code, straps must be installed in hatched areas.
4''
4''
17''
45''
⁄ = 41'' ⁄ = 20''
⁄ = 20''
LOCATION & WATER
HEATER CLEARANCE
Locate the water heater in a clean dry area as near
as practical to the area of greatest heated water
demand. Long uninsulated hot water lines can waste
energy and water.
Place the water heater in such a manner that the
electric junction box, the overflow line cover, the
upper element cover and the lower access panel can
be removed to permit inspection and servicing such
as removal of elements or checking controls.
The water heater and water lines should be protected
from freezing temperatures.
To allow easy access for operation and maintenance,
we recommend leaving the following clearances
around the water heater: At the front and above
the water heater: 25’’. Left and right: 4’’. Back: 2’’
provided that the overflow line can be correctly
installed. In case of any doubt, please check your
local codes.
