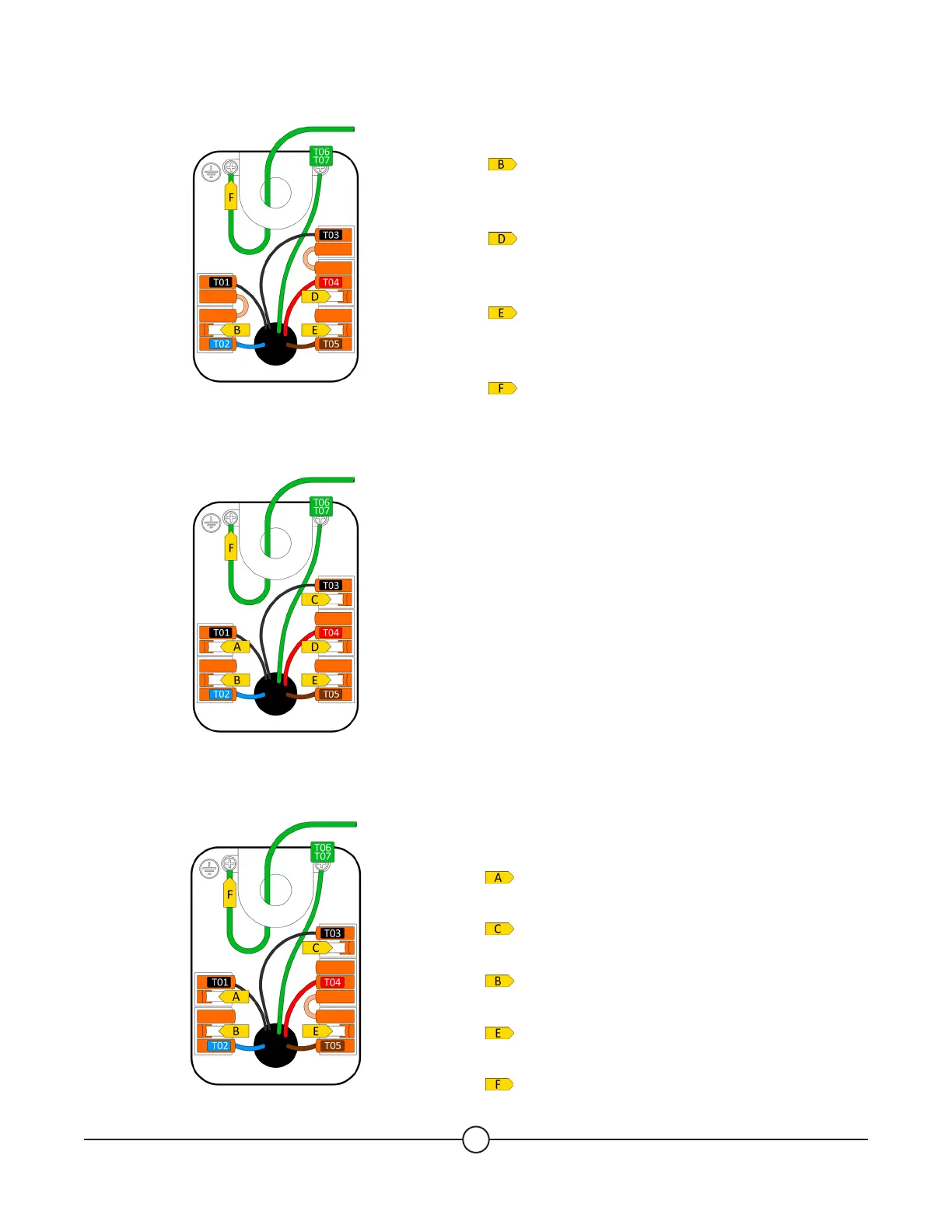

B. O-Peak
Wire separately the heating elements, in relation with
an O-Peak program.
Ph 1 - 208VAC/240VAC - 19A.
Phase 1 to both heating elements (T02) and
electronic control (T01).
Ph 2 - 208VAC/240VAC - 19A.
Phase 2, Permanent, to upper heating element
(T04) and electronic control (T03).
Ph 2 O Peak - 208VAC/240VAC - 19A.
Phase 2, from the O-Peak meter, to lower heating
element (T05).
Ground connection (T06 and T07).
C. O-Peak - Electronics Separated
Wire separately the elements and electronic control
in case of non permanent power supply to the water
heater and an O-Peak program.
Refer to O-Peak and Electronics Separated
sections.
D. Electronics Separated
Wire separately the elements and electronic control
in case of non permanent power supply to the water
heater.
Ph 1’ - 120VAC/240VAC-50W max.
Phase 1’ to electronic control (T01).
Ph 2’ - 120VAC/240VAC-50W max.
Phase 2’ to electronic control (T03).
Ph 1 - 208VAC/240VAC-19A.
Phase 1 to both heating elements (T02).
Ph 2 - 208VAC/240VAC-19A.
Phase 2 to heating elements (T04 and T05).
Ground connection (T06 and T07).
