Estella 236ECEM2 Service Manual

13
Fig. 28
A
B

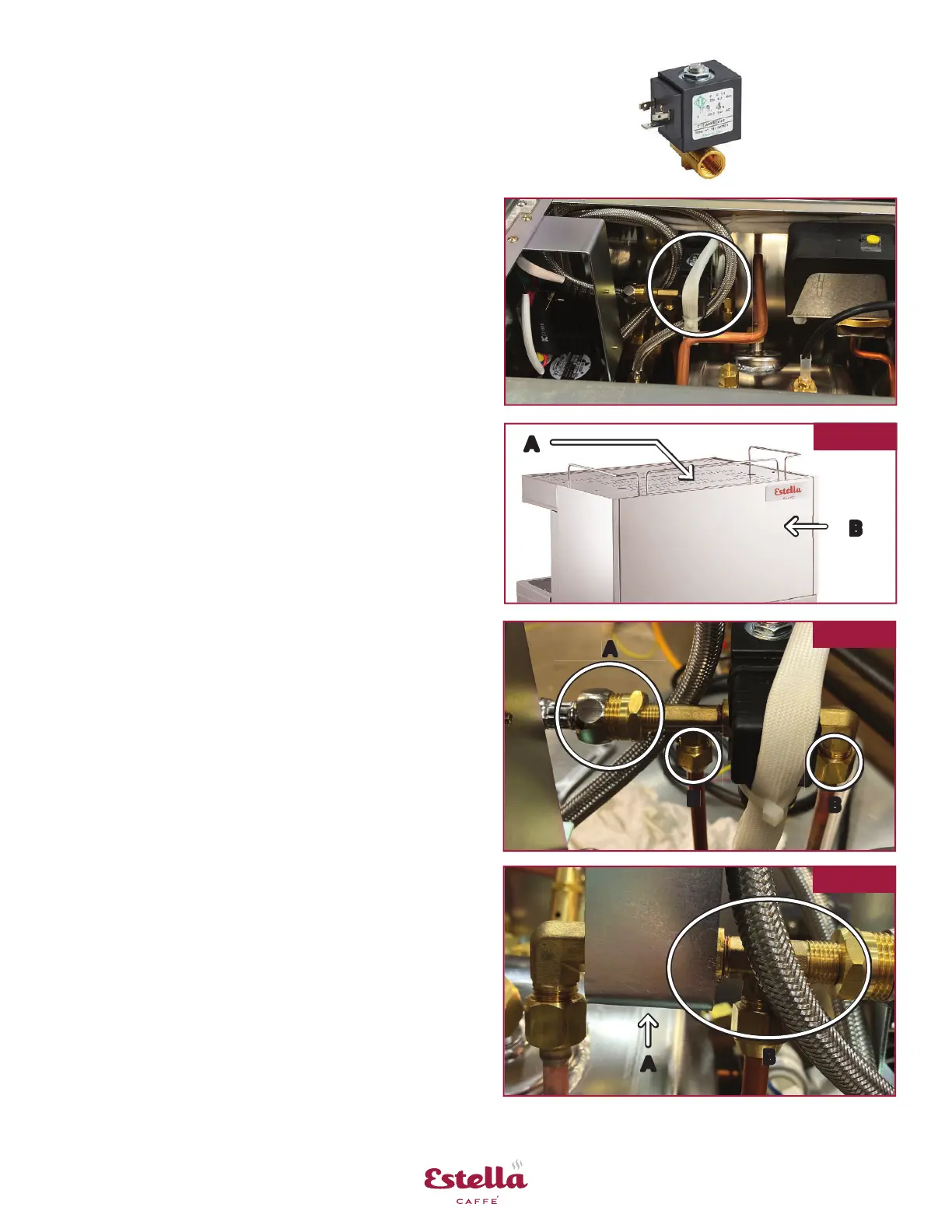

Boiler Solenoid Valve (Fill Valve)
Time Estimate: Approximately 30 min.
Part: #236PECEM12 for 1 group unit
#236PECEM11 for 2 and 3 group units
1. Follow pre-maintenance steps from page 10
2. Remove 2 screws from top rear cover and
remove cover (Fig. 28 A)
3. Remove 2 screws from rear cover and
remove cover (Fig. 28 B)
4. Remove stainless steel braided hose from
inlet connec on (Fig. 29 A)
5. Remove brass hex nuts on copper lines
(Fig. 29 B)
6. Remove screw from wiring plug
7. Pull plug from solenoid valve
8. Remove 2 socket head cap screws from
moun ng bracket, under valve (Fig. 30 A)
9. Remove valve from moun ng bracket
10. Remove brass "T" fi  ng from inlet side
of valve (Fig. 30 B)
11. Install brass "T" fi  ng on to new valve
with thread sealant
12. Reassemble by reversing steps
Te s ঞ ng
• Audible click can be heard when turned on/off
• Ohms should read ~ 2.03, if coil is good
• Replace valve if ohm reading is infi nity
Fig. 29
Fig. 30
A
A
B
B
B
