25

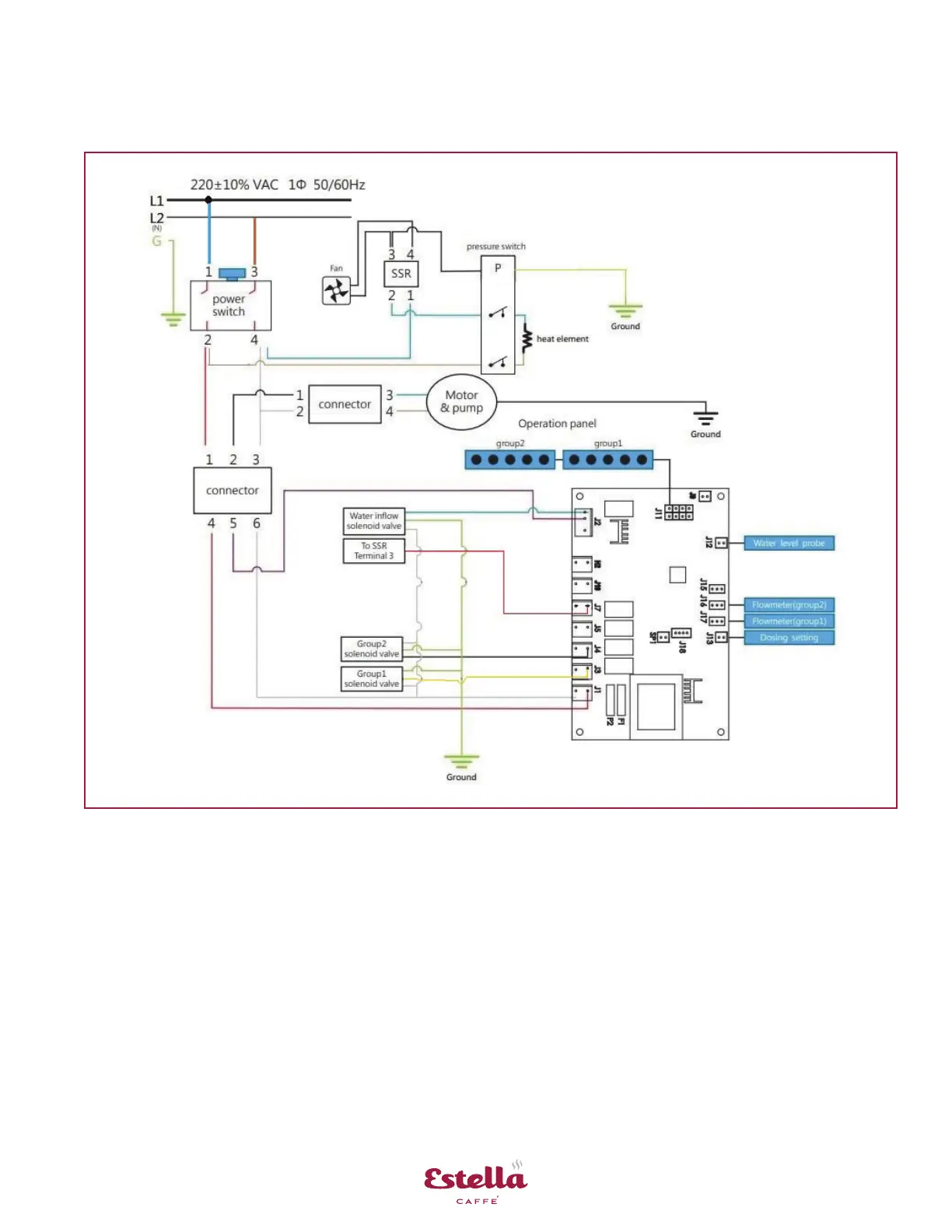

236ECEM2
J1 Main Switch
J2 Motor Power
Fill Water Valve
J3 Group 1 Solenoid
J4 Group 2 Solenoid
J7 SSR
J11 Cup Size Bu ons
J12 Water Probe
J13 Program Switch
J16 Group 2 Flowmeter
J17 Group 1 Flowmeter
F1 Main Fuse
F2 Motor Fuse
