Esu SwitchPilot 3 51830 - LGB Turnout Drive; Turnout Frog Polarization

15
5.6.4. Turnout frog polarization
Mit dem SwitchPilot Exension Modul können sehr einfach Wei-
chen-Herzstücke polarisiert werden.
Wiring the outputs
5.6.3. LGB® Turnout drive
The wiring is as shown in Fig. 12. Unless reprogrammed, the mo-
tors are supplied with electricity for approx. 520 msec and are then
switched off to prevent overheating of the drive.

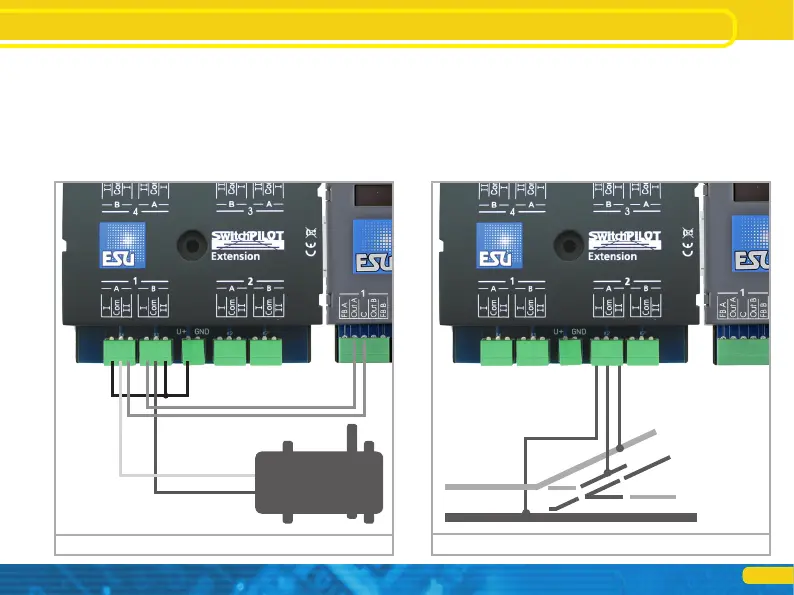

Figure 12: LGB® Turnout drive
Figure 13: Polarization with SwitchPilot Extension
