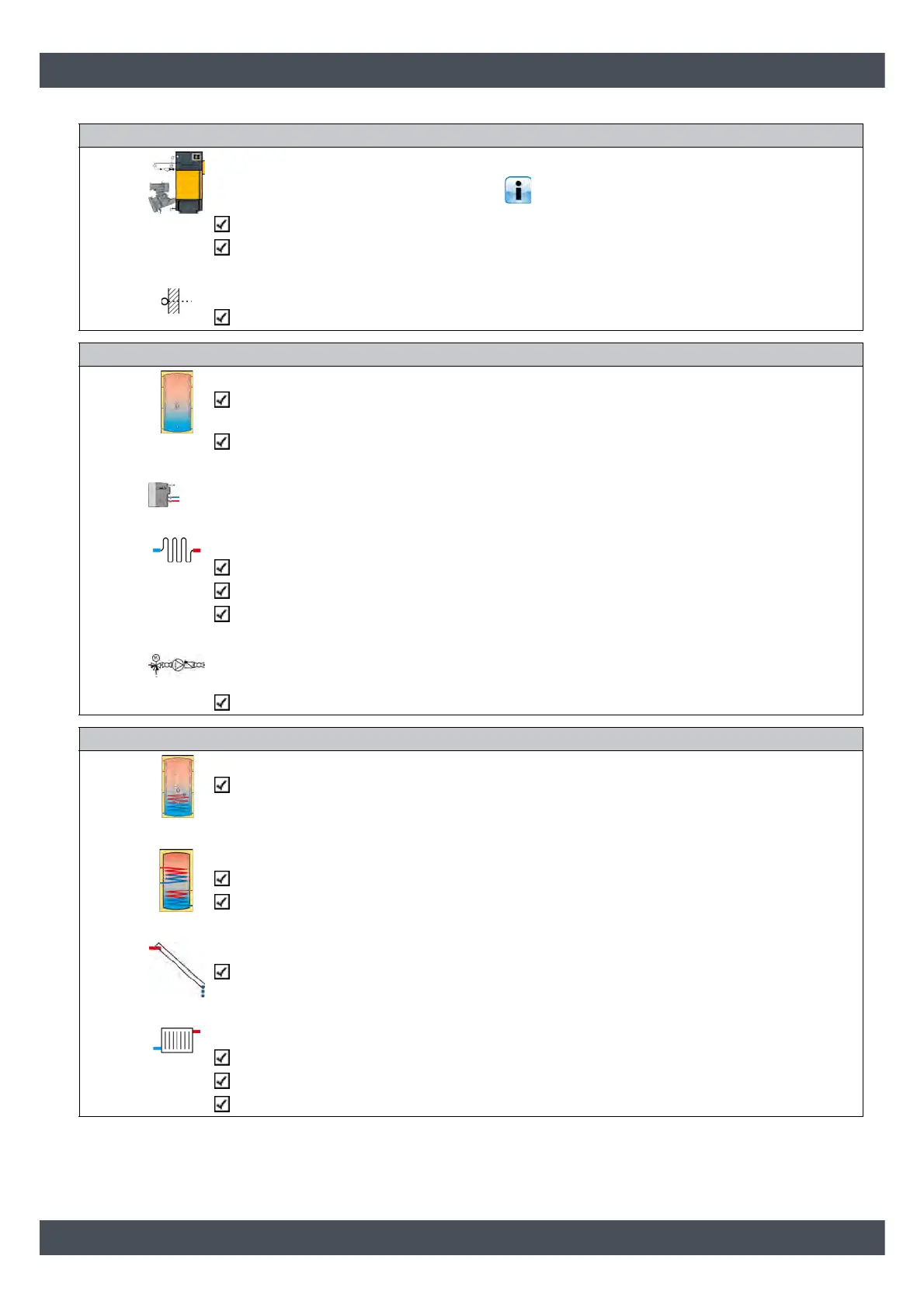

Examples Example with heating pipeline
Board Function blocks Description
HA-C 0 Boiler Wood chip boiler
Set the current fuel and the type of fuel
conveying system in the boiler settings.
Return riser valve For the return riser with mixing valve
Boiler pump For the boiler pump
HA-C 0 Sys System
Outside temperature sensor
Board Function blocks Description
GM-C 0 Buffer Buffer storage tank
Temperature sensor for the fresh
water module (1 pump)
For the fresh water module
Temp. sensor at buffer middle
GM-C 0 FWM 1Pump Fresh water module
GM-C 0 Heating circuit External heating circuit as underfloor heating
Heating circuit pump
Heating circuit mixing valve
Digital room sensor
GM-C 0 Pipeline Heating pipeline (between the two buffer storage
tanks)
Pipeline mixing valve
Board Function blocks Description
GM-C 1 Buffer Buffer storage tank with solar charging
Solar charging
GM-C 1 Hot water tank Hot water tank with solar charging
Charging pump for HWT
Solar charging
GM-C 1 Solar panel Solar heating system
2 tanks + diverter valve Changeover between hot water tank and buffer
GM-C 1 Heating circuit External heating circuit as radiator heating
Heating circuit pump
Heating circuit mixing valve
Digital room sensor
