Examples Example with heating pipeline
5.2.1 Starting the configuration assistant
Starting the configuration assistant
In the system settings, increase the authorization
to [Service], and open the system configuration menu
with the [Systems configuration] button.

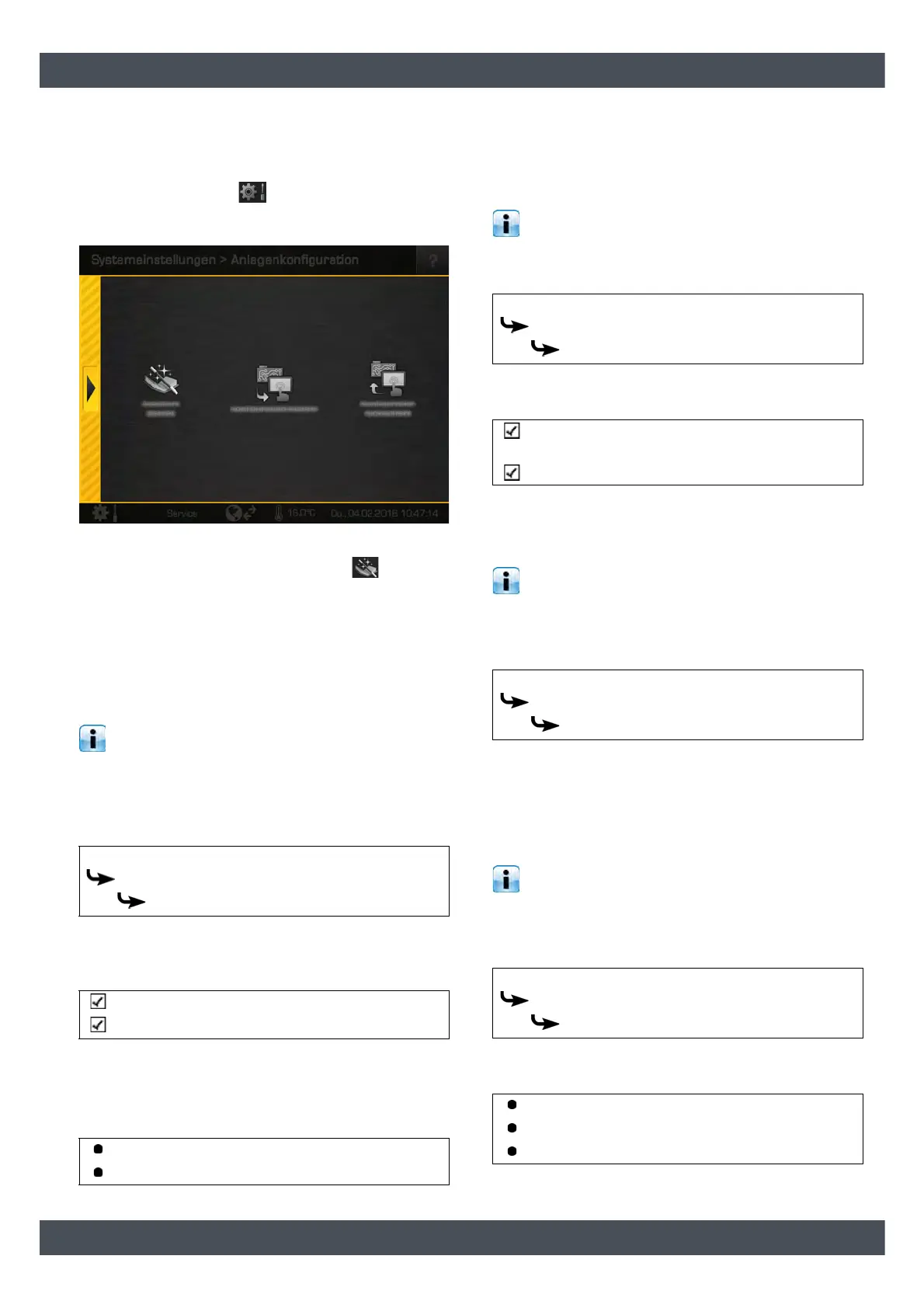

Fig. 5-2: System configuration menu
Start the configuration assistant with the [Assistant
start] button.
5.2.2 Adjusting and adding function
blocks
Adjusting options and settings in the [Boiler]
function block
The [Boiler] function block has already been
installed at the factory. The options for the return
riser and the boiler pump must be selected. In the
settings, select the fuel and the type of fuel discharge.
Select the required function block from the [Selected
function blocks] column:
Open and enable the following options. Activate the
following options for the return riser and the boiler
pump:
Then press [Settings] to open the settings for the
function block.
Set the current fuel and the type of conveying system.
In this example, [Woodchips] and [Spring arm < 4m].
Press [Options] to save the settings.
Press the [Accept] button to save.
Adding a function block [Buffer]
The following steps show how to connect the
buffer to the [GM-C 0] circuit board in the boiler.
Select the required function block from the [Possible
function blocks] column:
Add the function block and activate the following
options:
Press the [Accept] button to save.
Adding a function block [FWM 1Pump]
The following steps show how to connect the
fresh water module to the [GM-C 0] circuit board
in the boiler.
Select the required function block from the [Possible
function blocks] column:
Add the function block. In this example, no options
need to be selected.
Press the [Accept] button to save.
Adding a function block [Heating circuit]
The following steps show how to connect the
heating circuit to the [GM-C 0] circuit board in the
boiler.
Select the required function block from the [Possible
function blocks] column:
Add the function block. A window with the settings
opens.
Selected function blocks
HA-C 0
Boiler
Return riser valve
Boiler pump
Fuel Woodchips
Conveyor type Spring arm < 4m
Possible function blocks
GM-C 0
Buffer
Temperature sensor for the fresh water module
(1 pump)
Temp. sensor at buffer middle
Possible function blocks
GM-C 0
FWM 1Pump
Possible function blocks
GM-C 0
Heating circuit
Underfloor heat.
Radiator heating
