Etac Molift - Technical Data Molift Quick Raiser 1

BM04101 Molift Quick Raiser English - Rev F 09/2012 Page 11 of 20
Technical data Molift Quick Raiser 1
Weight, complete lifter:
excl. battery; 29 kg / incl. battery: 30 kg
Weight, disassembled:
Chassis, complete: 15,2 kg
Column complete: 10.8 kg
Lifting arm, V-shape: 2.9 kg
Lifting arm, U-shape: 2.4 kg
Material:
Aluminium, steel and plastics
Motor:
Lifting motor: 12 V DC
Battery:
14.4 V NiMH 2.2 Ah
Battery charger:
Mascot type 2215,10-22 cells NiCd/NiMH
Protection:
IP24
Number of lift with fully charged battery:
40 lifts (75 kg, 50 cm)
Safe Working Load (SWL):
160 kg (560 lbs)
Lifting range:
0 - 850 mm under patient
Lifting speed:
50 mm/sec (75 kg)
Turning diameter:
1,100 mm
Sound level, max A-weighted sound power level:
L
WA
= 62 dB
Operating forces:
Buttons on hand control: 3.4 N
Height of legs:
70 mm

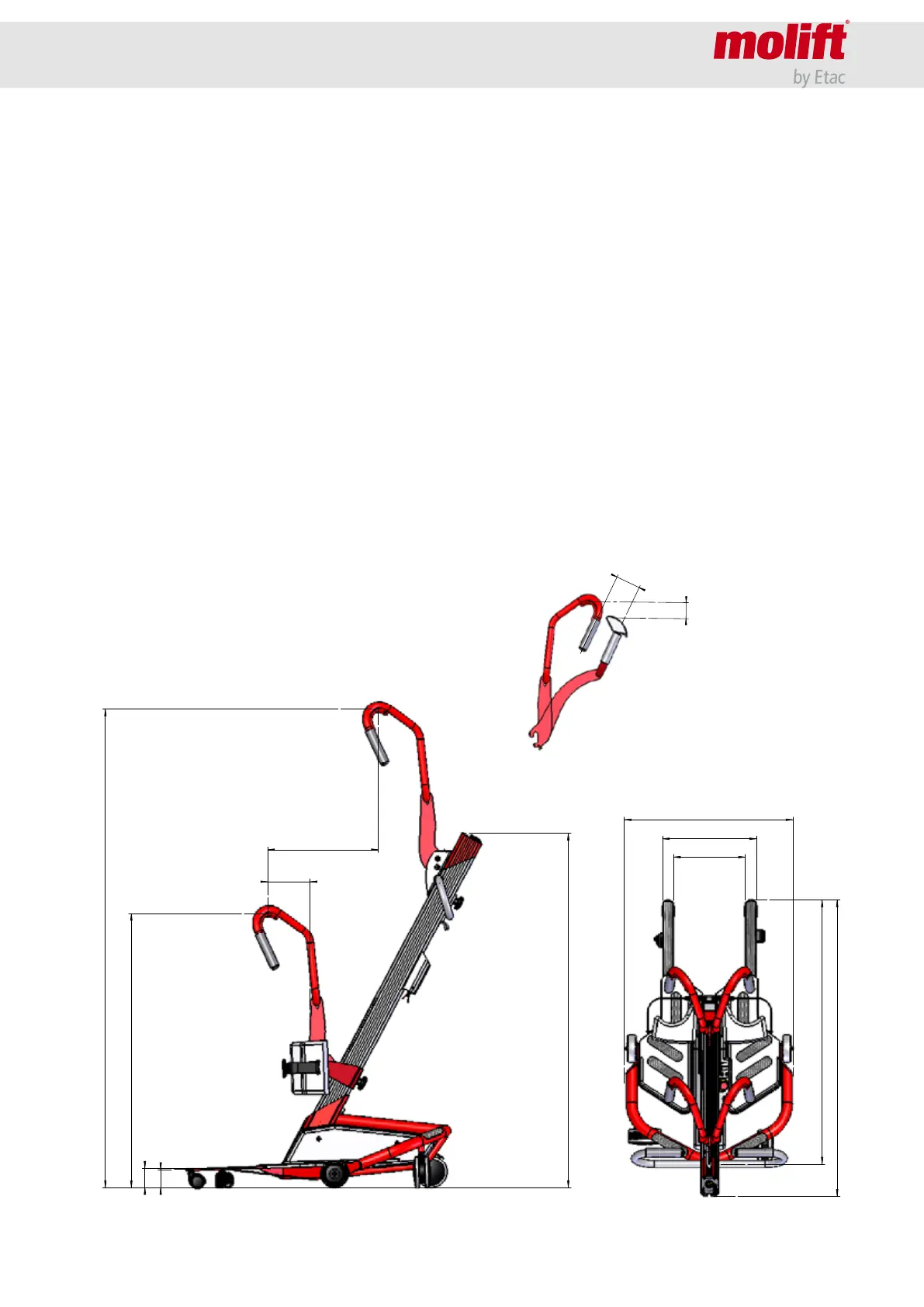

Measurements:
1,070 x 610 x 1,280 mm (LxWxH)
All measurements in illustrations are in millime-
tres.
Bill of materials:
1
Material.
Comment.
Dimension/
Draw. no.
Description. Qty.
Pos.
08-171 BOM.xls
1280
65
990
1730
400
70
150
260 340
955
1070
610
4
7
1
5
3
2
6
8
Rev. Description: Date/Sign. Approved:
A Released for production 16.12.2008
Pos. Qty. Description
Dimension/
Draw. no. Material: Comment:
6 2 Arm complete 08-143
5 1
Knestøtte, lang med
store puter
4 1 Handle complete 08-094
3 1 08-084
2 1 Coloumn assy 08-091
1 1
Chassis complete
QR 1 08 08-140
Molift Quick Raiser
Drawing name:
16/12-2008
Drawing number:
Quick Raiser 1 assy
A2
08-171
1:10
TÅB
Projection:
Scale:
Date:
Designed/Drawn:
Size
Bill of materials:
1
Material.
Comment.
Dimension/ Draw. no.
Description.
Qty.
Pos.
08-171 BOM.xls
1280
65
990
1730
400
70
150
260
340
955
1070
610
4
7
1
5
3
2
6
8
Rev. Description:
Date/Sign.
Approved:
A
Released for production
16.12.2008
Pos.
Qty.
Description
Dimension/ Draw. no.
Material:
Comment:
6 2
Arm complete
08-143
5 1
Knestøtte, lang med store puter
4 1
Handle complete
08-094
3 1
08-084
2 1
Coloumn assy
08-091
1 1
Chassis complete QR 1 08
08-140
Molift Quick Raiser
Drawing name:
16/12-2008
Drawing number:
Quick Raiser 1 assy
A2
08-171
1:10
TÅB
Projection:
Scale:
Date:
Designed/Drawn:
Size
100
65
Rev. Description: Date/Sign. Approved:
Size
Designed/Drawn:
Date:
Scale:
Projection:
xx
1:10
arm U og V
A3
Drawing number:
xx/xx-xxxx
Drawing name:
xx
xxx
