Etac Molift - Technical Data Molift Quick Raiser 2+

BM04101 Molift Quick Raiser English - Rev F 09/2012 Page 13 of 20
Technical data Molift Quick Raiser 2+
Weight, complete lifter:
excl. battery; 37.4 kg /
incl. battery: 38.4 kg
Weight, disassembled:
Chassis, complete: 22 kg
Column complete: 11.9 kg
Lifting arm, U-shape: 3.5 kg
Material:
Aluminium, steel and plastics
Motor:
Lifting motor: 12 V DC
Leg spreading motor: 12 V DC
Battery:
14.4 V NiMH 2.2 Ah
Battery charger:
Mascot type 2215,10-22 cells NiCd/NiMH
Protection:
IP24
Number of lift with fully charged battery:
40 lifts (75 kg, 50 cm)
Safe Working Load (SWL):
200 kg (560 lbs)
Lifting range:
0 - 850 mm under patient
Lifting speed:
28 mm/sec (75 kg)
Turning diameter:
1,450 mm
Sound level, max A-weighted sound power level:
L
WA
= 62 dB
Operating forces:
Buttons on hand control: 3.4 N
Height of legs:
ca 100 mm

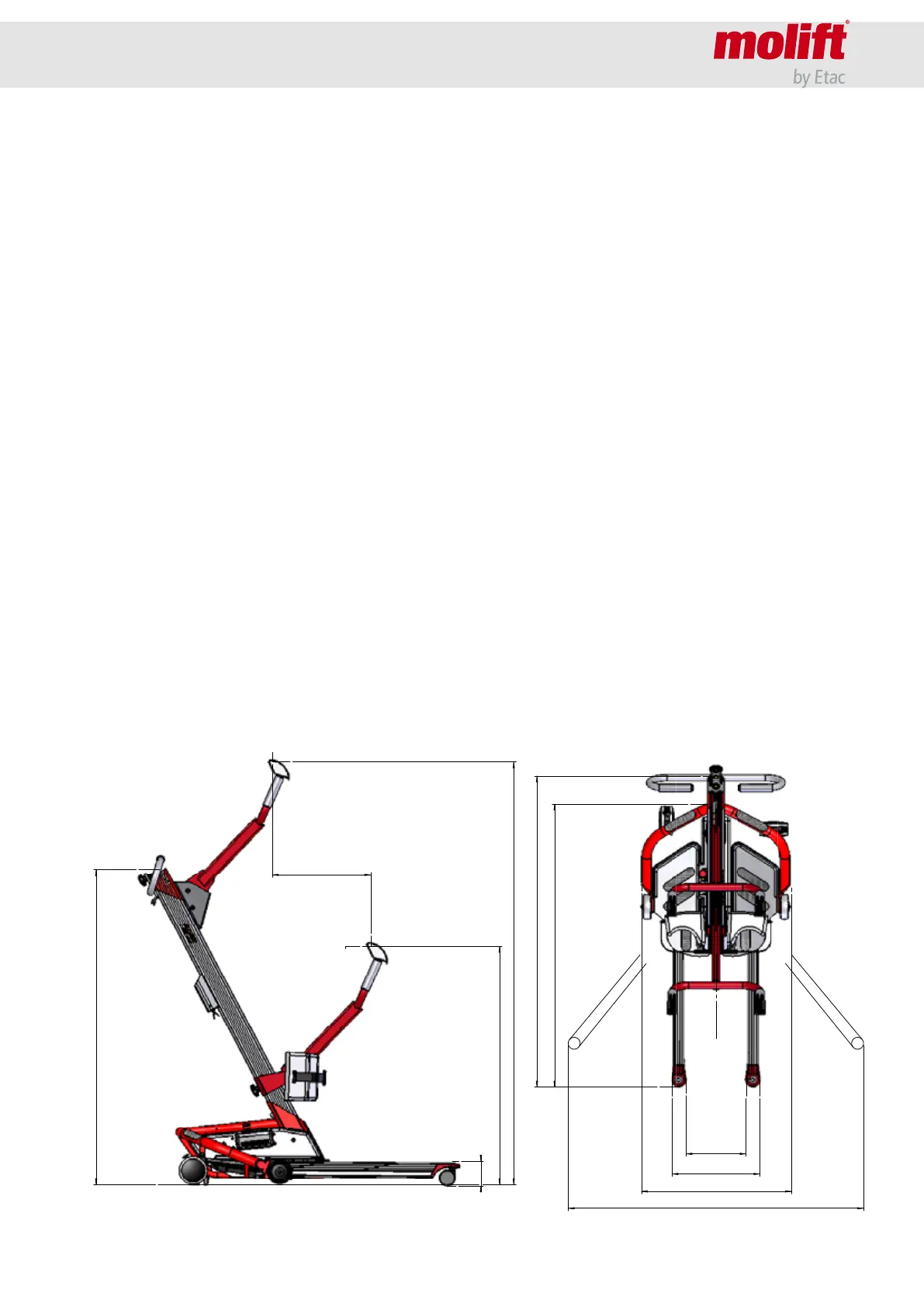

Measurements:
1,265 x 610 x 1,280 mm (LxWxH)
All measurements in illustrations are in millime-
tres.
Bill of materials:
1
Material.
Comment.
Dimension/ Draw. no.
Description.
Qty.
Pos.
08-175 BOM.xls
100
990
1280
400
1720
360
245
1265
1150
610
1200
1
2
3
Rev. Description:
Date/Sign.
Approved:
A
Released for prodution
17.12.2008 TÅB
Pos.
Qty.
Description
Dimension/ Draw. no.
Material:
Comment:
5 1
200 kg Lifting arm
08-046
4 1
Knestøtte, lang med store puter
3 1
Handle complete
08-094
2 1
Coloumn assy QR2+ 2008
08-174
1 1
Chassis complete QR 2+ 2008
08-176
Molift Quick Raiser
Drawing name:
17/12-2008
Drawing number:
Quick Raiser 2+ 08 assy
A2
08-175
1:10
TÅB
Projection:
Scale:
Date:
Designed/Drawn:
Size
Bill of materials:
1
Material.
Comment.
Dimension/
Draw. no.
Description. Qty.
Pos.
08-175 BOM.xls
100
990
1280
400
1720
360
245
1265
1150
610
1200
1
2
3
Rev. Description: Date/Sign. Approved:
A Released for prodution 17.12.2008 TÅB
Pos. Qty. Description
Dimension/
Draw. no. Material: Comment:
5 1 200 kg Lifting arm 08-046
4 1
Knestøtte, lang med
store puter
3 1 Handle complete 08-094
2 1
Coloumn assy
QR2+ 2008 08-174
1 1
Chassis complete
QR 2+ 2008 08-176
Molift Quick Raiser
Drawing name:
17/12-2008
Drawing number:
Quick Raiser 2+ 08 assy
A2
08-175
1:10
TÅB
Projection:
Scale:
Date:
Designed/Drawn:
Size
