Etac Molift - Technical Data Molift Quick Raiser 2

BM04101 Molift Quick Raiser English - Rev F/ 09/2012 Page 12 of 20
Technical data Molift Quick Raiser 2
Weight, complete lifter:
excl. battery; 36.5 kg /
incl. battery: 37.5 kg
Weight, disassembled:
Chassis, complete: 22 kg
Column complete: 11.7 kg
Lifting arm, V-shape: 2.9 kg
Lifting arm, U-shape: 2.4 kg
Material:
Aluminium, steel and plastics
Motor:
Lifting motor: 12 V DC
Leg spreading motor: 12 V DC
Battery:
14.4 V NiMh 2.2 Ah
Battery charger:
Mascot type 2215,10-22 cells NiCd/NiMH
Protection:
IP24
Number of lift with fully charged battery:
40 lifts (75 kg, 50 cm)
Safe Working Load (SWL):
160 kg (560 lbs)
Lifting range:
0 - 850 mm under patient
Lifting speed:
50 mm/sec (75 kg)
Turning diameter:
1,450 mm
Sound level, max A-weighted sound power level:
L
WA
= 62 dB
Operating forces:
Buttons on hand control: 3.4 N
Height of legs:
ca 100 mm

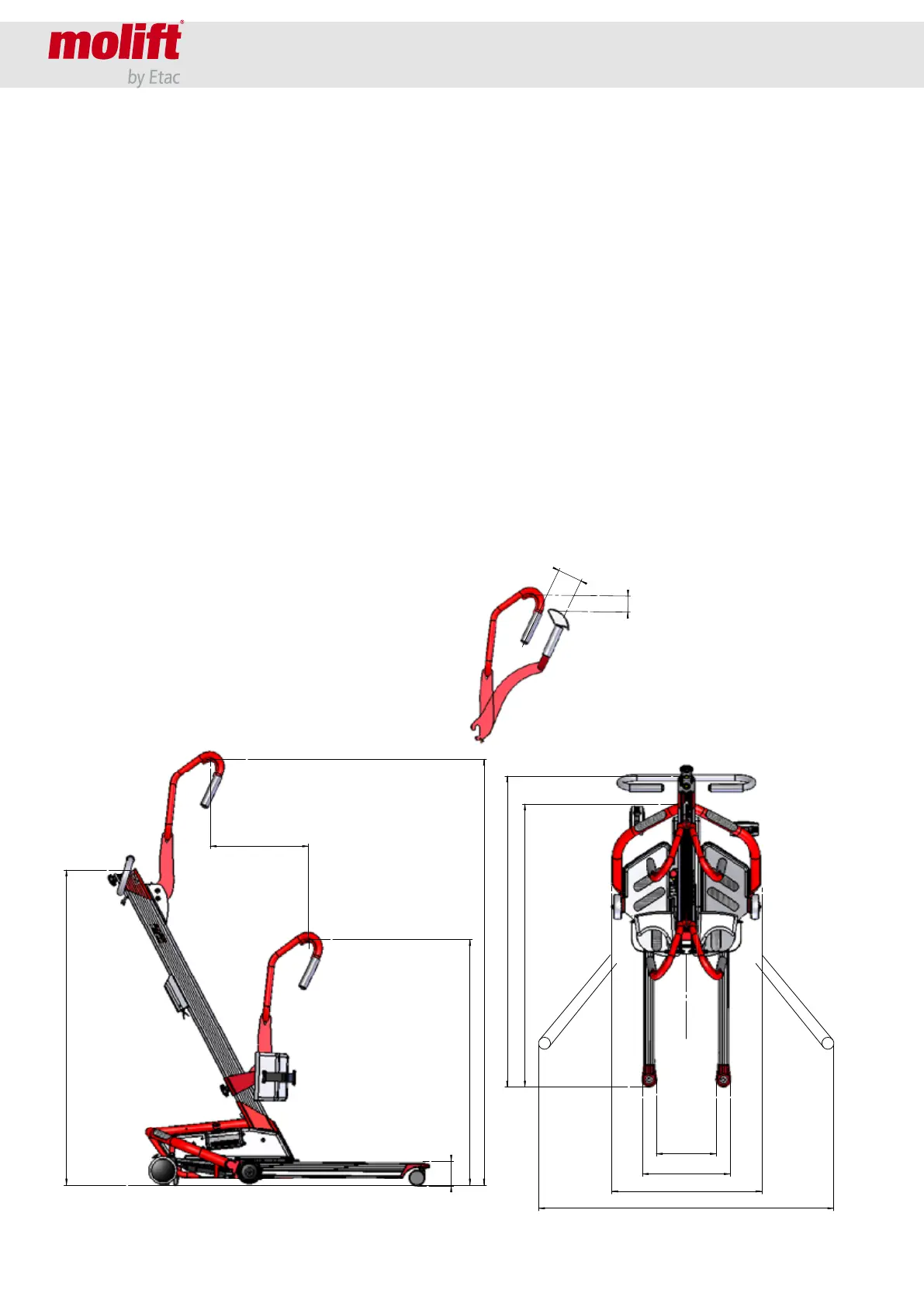

Measurements:
1,265 x 610 x 1,280 mm (LxWxH)
All measurements in illustrations are in millime-
tres.
Bill of materials:
1
Material.
Comment.
Dimension/ Draw. no.
Description.
Qty.
Pos.
08-100 BOM.xls
100
990
1730
1280
400
360
245
1265
1150
610
1200
1
5
2
3
4
7
6
Rev. Description:
Date/Sign.
Approved:
A
Released for prodution
11.09.2008 TÅB
MHL
Pos.
Qty.
Description
Dimension/ Draw. no.
Material:
Comment:
6 2
Arm complete
08-143
5 1
Knestøtte, lang med store puter
4 1
Handle complete
08-094
3 1
08-084
2 1
Coloumn assy
08-091
1 1
Chassis complete QR 2
08-071
Molift Quick Raiser
Drawing name:
11/09-2008
Drawing number:
Quick Raiser 2 assy
A2
08-100
1:10
TÅB
Projection:
Scale:
Date:
Designed/Drawn:
Size
Bill of materials:
1
Material.
Comment.
Dimension/
Draw. no.
Description. Qty.
Pos.
08-100 BOM.xls
100
990
1730 1280
400
360
245
1265
1150
610
1200
1
5
2
3
4
7
6
Rev. Description: Date/Sign. Approved:
A Released for prodution 11.09.2008 TÅB MHL
Pos. Qty. Description
Dimension/
Draw. no. Material: Comment:
6 2 Arm complete 08-143
5 1
Knestøtte, lang med
store puter
4 1 Handle complete 08-094
3 1 08-084
2 1 Coloumn assy 08-091
1 1
Chassis complete
QR 2 08-071
Molift Quick Raiser
Drawing name:
11/09-2008
Drawing number:
Quick Raiser 2 assy
A2
08-100
1:10
TÅB
Projection:
Scale:
Date:
Designed/Drawn:
Size
100
65
Rev. Description: Date/Sign. Approved:
Size
Designed/Drawn:
Date:
Scale:
Projection:
xx
1:10
arm U og V
A3
Drawing number:
xx/xx-xxxx
Drawing name:
xx
xxx
