6. Screw the two parts together by turning the Allen
key clockwise as far as it will go within the module.
Both parts are now completely connected mechan-
ically.
Connecting to Other Modules
To connect the ES400 module to other modules, you require a 2 mm Allen key
(minimum length 20 mm).
To connect to other modules:
1. Assemble other modules in accordance with the
procedure described in the section 6.2.2
on page 69.

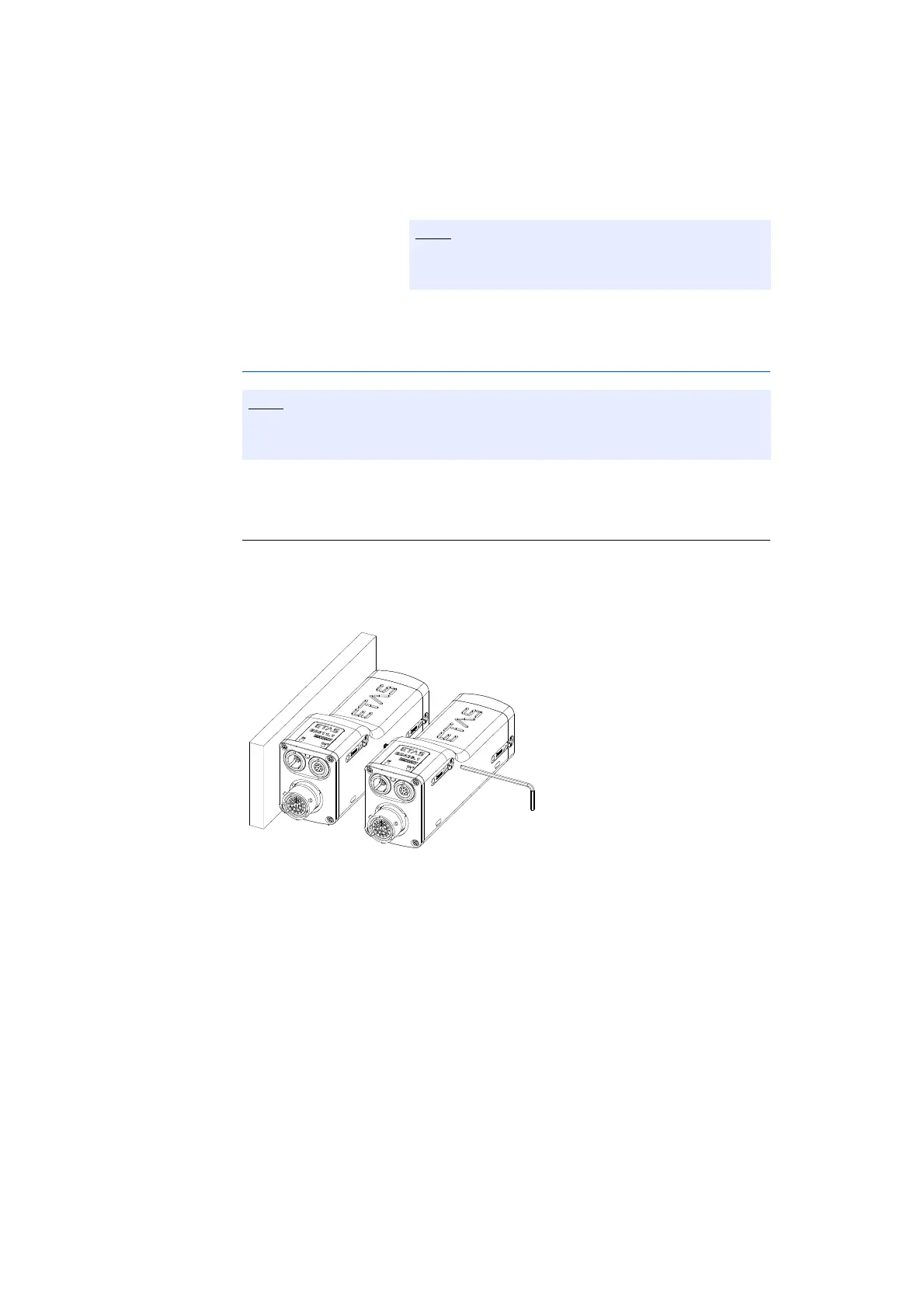

Fig. 6-8 Connecting to Other Modules
Screw the two parts together without getting them
off-thread!
You can only successively screw additional modules, but not module blocks,
onto the right-hand side of this module.
