B Dimmer Curves 54
Appendix B
Dimmer Curves
Dimmer curves determine how dimmers set voltage output in response to control signal
input. To accommodate designer preferences and load response variations, Sensor offers
five dimmer curve choices, which can be applied to individual dimmers.
Linear curve
The linear curve matches the control input percentage to Root Mean Squared (RMS)
voltage output. Each percent increase in control level increases dimmer voltage output by
the same amount
.

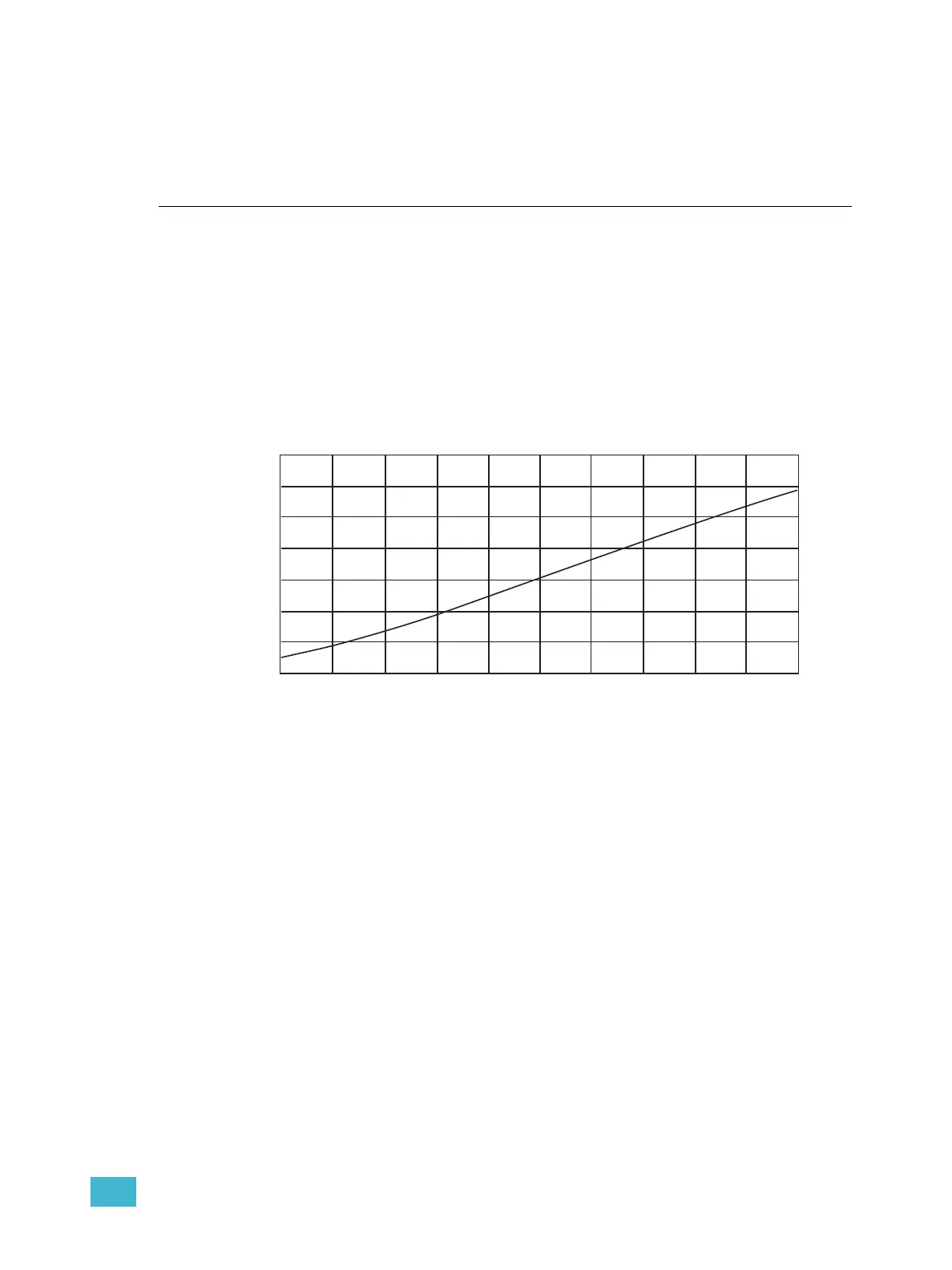

Linear Curve
100
Output Voltage (RMS)
120
140
80
60
40
20
0
1 102030405060708090100
Console percentage setting
