32E40-12
NOTE: You must remove the
pedestal before wall mounting.
TV Overview

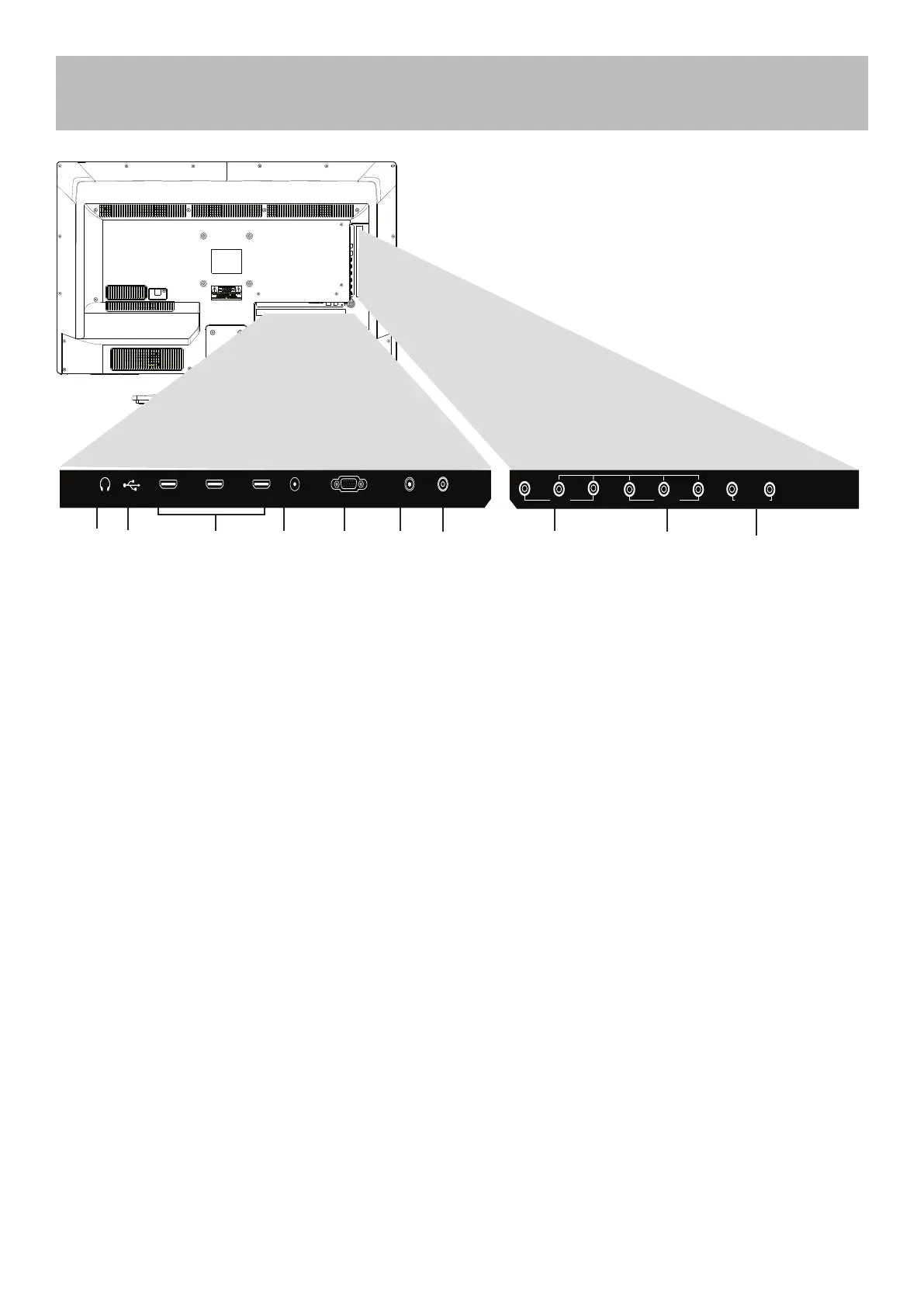

Rear Panel
1.EARPHONE - Connect a strereo headphone (3.5mm – not included) for private listening.
2. USB Input Port - Connect to portable USB device such as USB ash/hard drive (max storage capacity 400GB,
supports MP3 and JPEG.
3. HDMI - Connects to digital AV equipment that feature HDMI connectivity. HDMI supports enhanced high denition
video and up to 7.1-channel digital audio all from one cable. Recommended for best performance. HDMI cable not
included.
4. PC Audio Input (3.5mm) - 3.5mm audio cable (not included) for sound.
5. VGA Input - Connect an optional VGA cable (not included) from your personal computer.
6. RF - Connect an antenna or cable connection for television reception.
Note: Use an outdoor antenna, cable or satellite for best reception.
7. COAXLAL OUT - Connect an optional coaxial digital cable (not included) through a compatible amp/receiver to
enjoy superior audio sound.
8. AV - Connect a external device to the composite VIDEO(V) and AUDIO (L/R) out jacks found on most video equip-
ment.
9. Component Y Pb Pr Input - Connect to an AV device that features component (Y Pb Pr) video and audio output
jacks.
10. R/L Audio Out- Connect to audio receiver.
VGAHDMI3HDMI2HDMI1
RF
PC AUDIO
EARPHONE
COAXIAL OUT
V L R Y Pb Pr L R
AV
YPBPR AUDIO OUT
Wall Mounting
It is recommended that you
consult a professional before
mounting this TV a wall.
Use VESA 100 x 100 wall
mount hardware.
To Next Page
