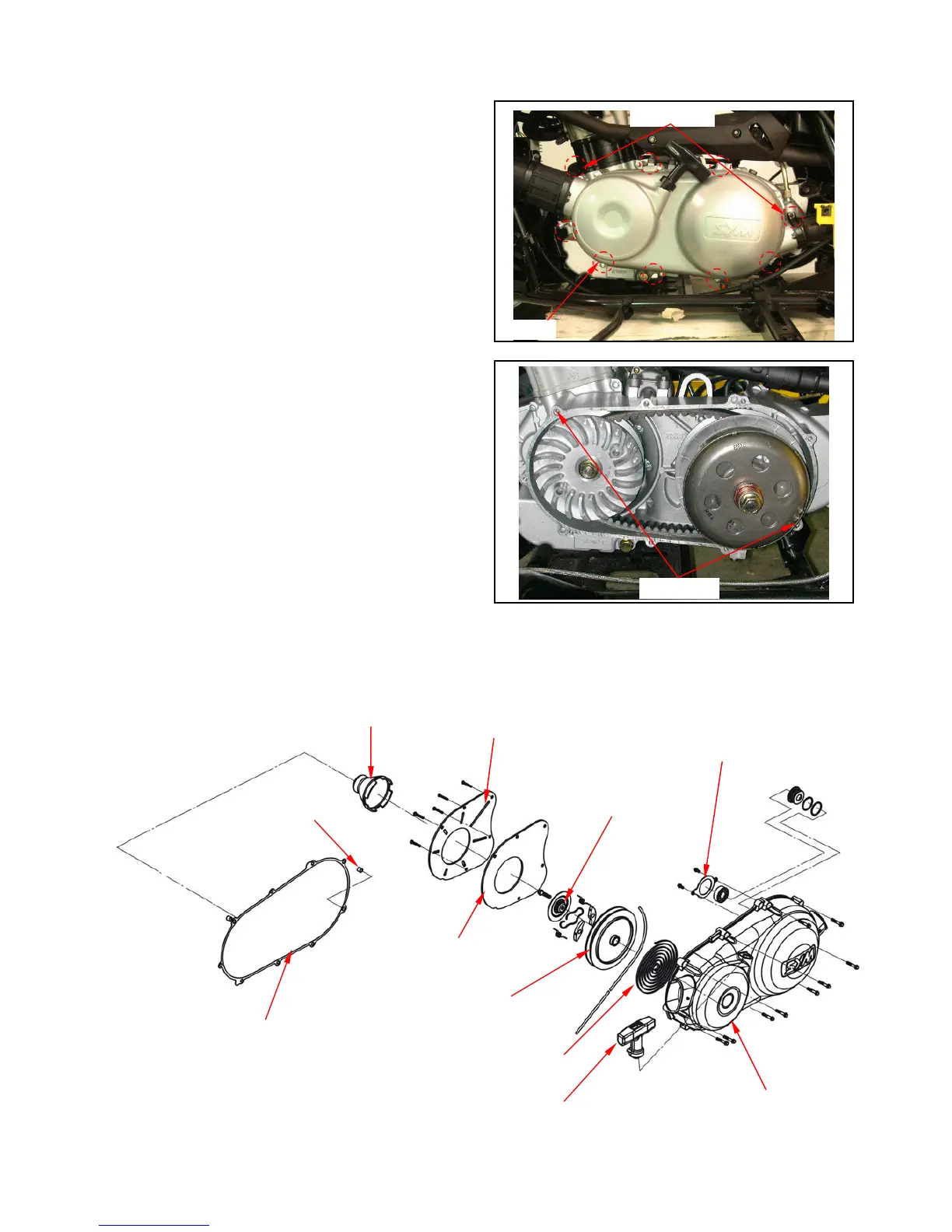

8-4 Left Crankcase Cover
Left crankcase cover removal
Release the 2 clamp strips of left crankcase cover
ducts, and then remove the ducts.
Remove left crankcase cover. (10 bolts)
Remove 2 dowel pin and gasket.
Left crankcase cover install
Install left crankcase cover in the reverse
procedures of removal.
Dowel pins
Clamp strips
10 bolts
Left cover plate
Ratchet cover
Dowel pins
L bearing setting plate
Left cover plate gasket
L crank case cover
Starter drive pulley
Volute spring
Starter grip
Starter drive pulley
L crank case cover gasket
