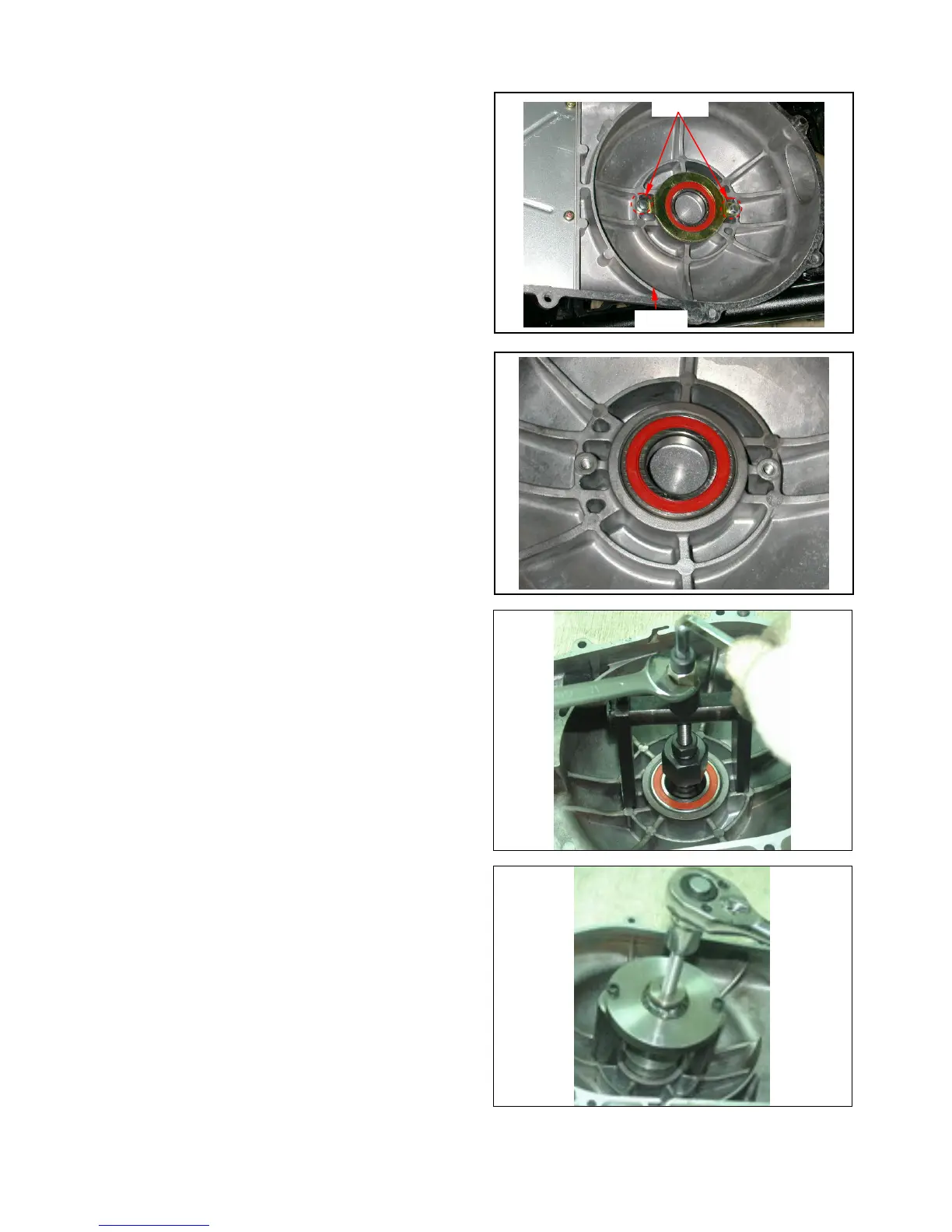

Left crankcase cover inspection
Remove 2 bolts to remove left crankcase cover
bearing setting plate.
Check bearing on left crankcase cover.
Rotate bearing’s inner ring with fingers.
Check if bearings can be turned in smooth and
silent, and also check if bearing outer ring is
mounted on cover tightly.
If bearing rotation is uneven, noising, or loose
bearing mounted, then replace it.
Remove the bearing 6006 with inner bearing
puller.
Tools number:SYM-6204025
Tools name: INNER BEARING PULLER.
Bearing 6006 install with special tool.
Tools number:SYM-1134600-HMA RB1 6006.
Tools name: L CRANK CASE COVER
BEARING INSTALL TOOL.
2 bolts
9 bolts
