27971-01A
Installation - Assembly Procedures
20

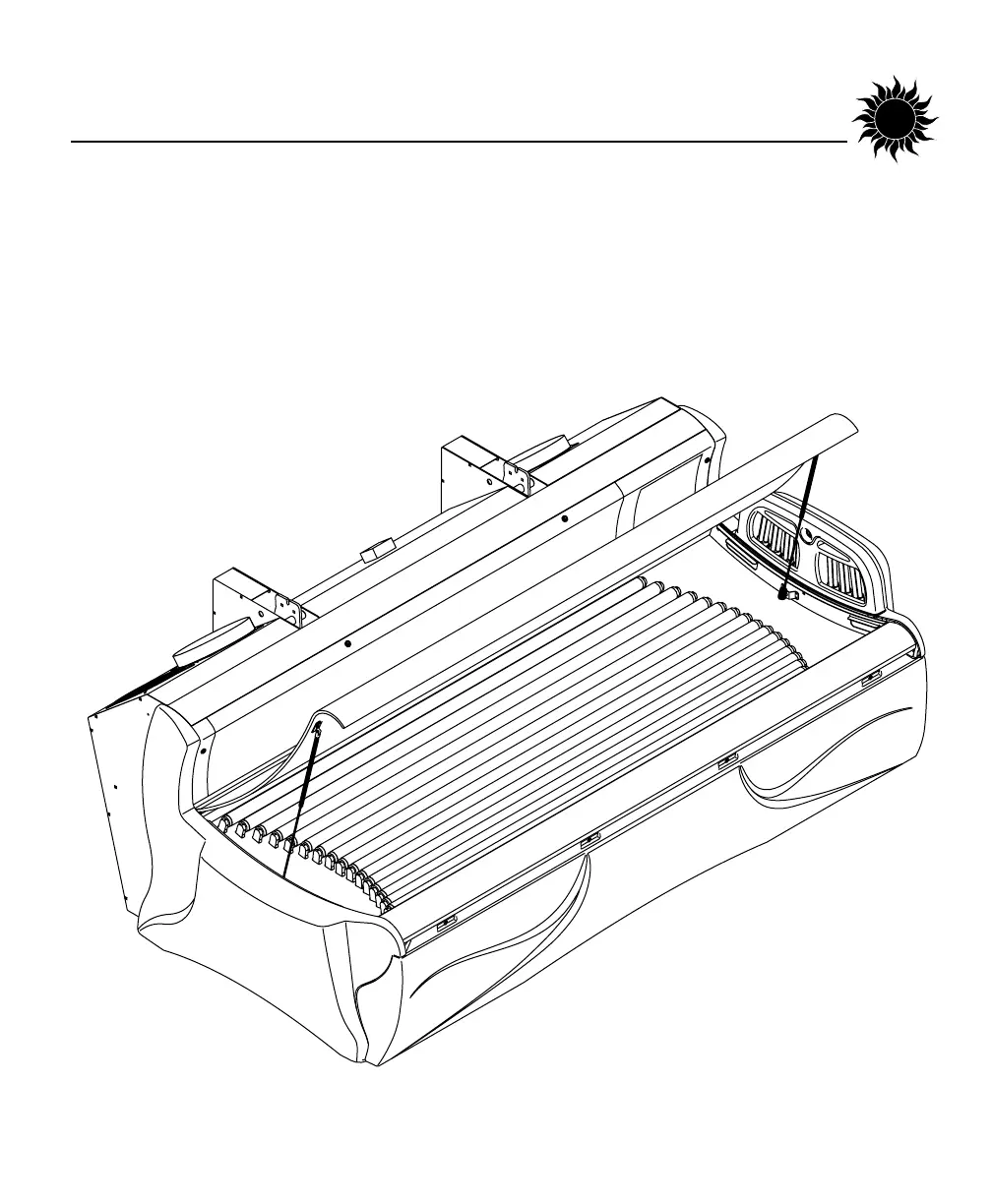

NOTE: Canopy removed for illustration purposes only
Reinstall the bench acrylics. Sit the rear
acrylic into its slot and secure the latches.
Slide the bench acrylic into its channel in
the back and press the gas spring ends
onto the ball studs (no tools required).
To Next Page
