11
27330-01A
Installation - Electrical Connections
Electrical Connections

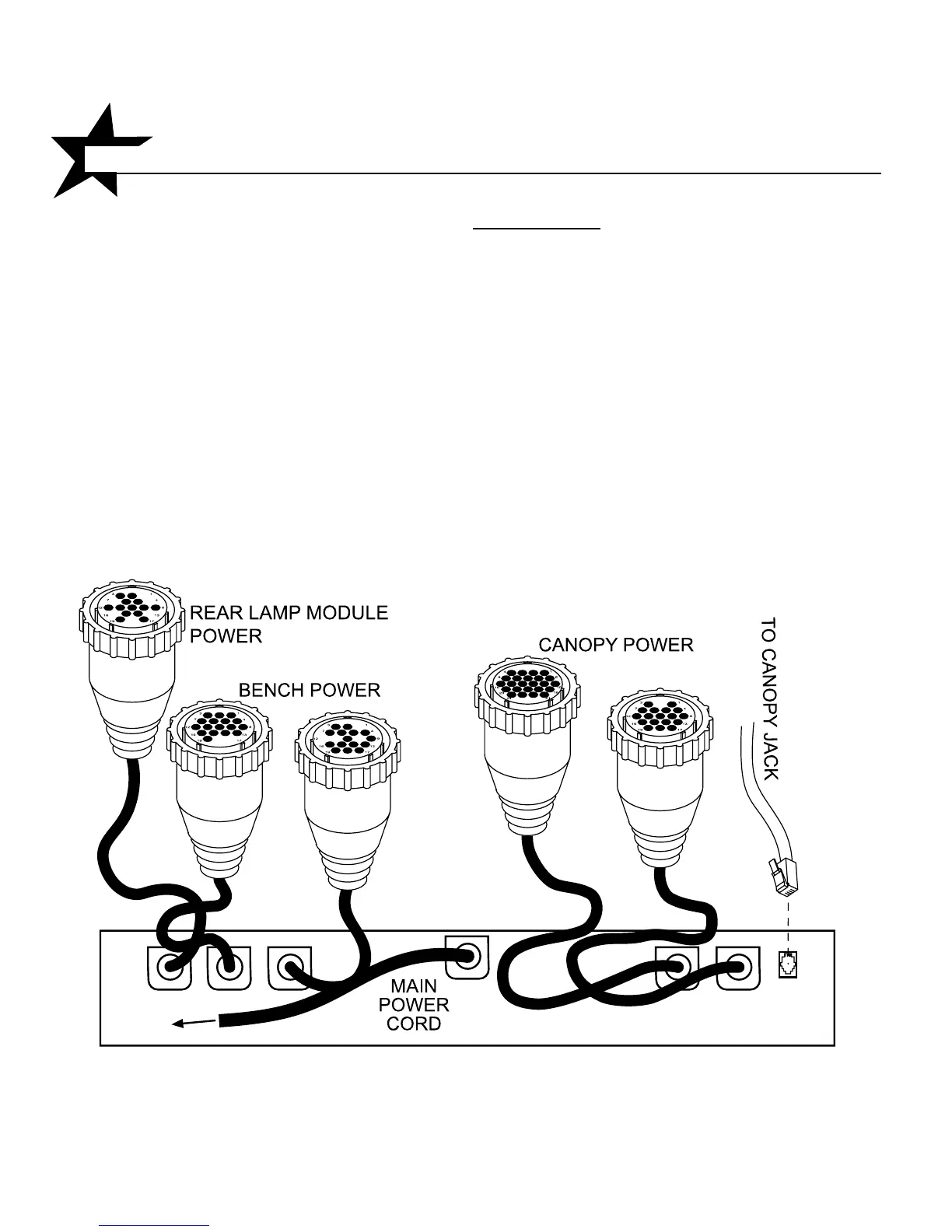

At the rear of the sunbed, connect the two
canopy power cords, two bench power
cords and rear lamp module cord from the
ballast tray to their respective power recep-
tacles. Simply match the plug to the recep-
tacle, push on firmly and secure by twisting
the threaded locking ring.
PIN CONFIGURATIONS MAY VARY FROM SHOWN
(Rear of ballast tray shown)
Connect the RJ-11 (phone type) cable
between the canopy and rear jack on the
ballast tray. The three jacks on the front of
the tray are for remote connections.
Connect main power cord as described in
Pre-Installation Planning.
Helpful Hint
: Line up the plug with the
proper receptacle and push in. Apply
pressure to the plug and twist the locking
ring counter-clockwise until you feel the
plug click into place. Then turn the lock-
ing ring clockwise to secure it. The ring
will click when fully engaged.
