Installation - Final Adjustments

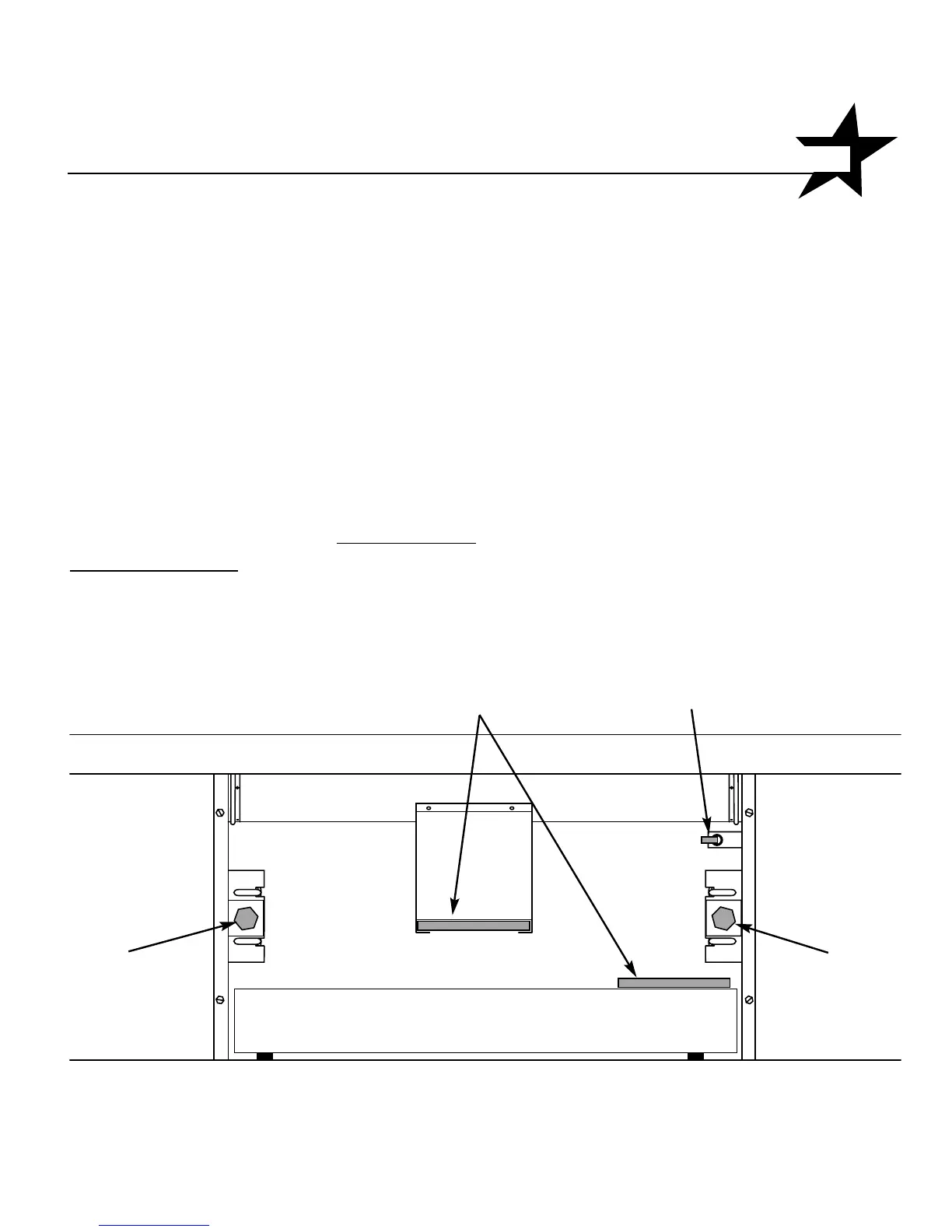

LIFT
ADJUSTMENT
MAINTENANCE HEIGHT
RELEASE HANDLE
AIR FILTERS
Final Adjustments
Your sunbed uses a smooth gliding spring
lift system to raise the canopy. This lift sys-
tem may need to be adjusted slightly due
to shipment. Remove the front access
panel. Use a wrench to turn the hex
shaped Lift Adjustment lugs (shown
below), clockwise for more lift and coun-
terclockwise for less. When adjusted
properly, the canopy should raise easily as
well as rest fully closed. Alw
ays adjust
both lugs equally.
Make sure the air filters are in place. The
filter on top of the ballast tray simply sits
over the vent holes. Airflow holds it in
place when the unit is on. The airflow
arrow on the side of this filter should point
down. The filter hanging under the bench
should be installed with the arrow point-
ing up.
