Installation - Assembly Procedures

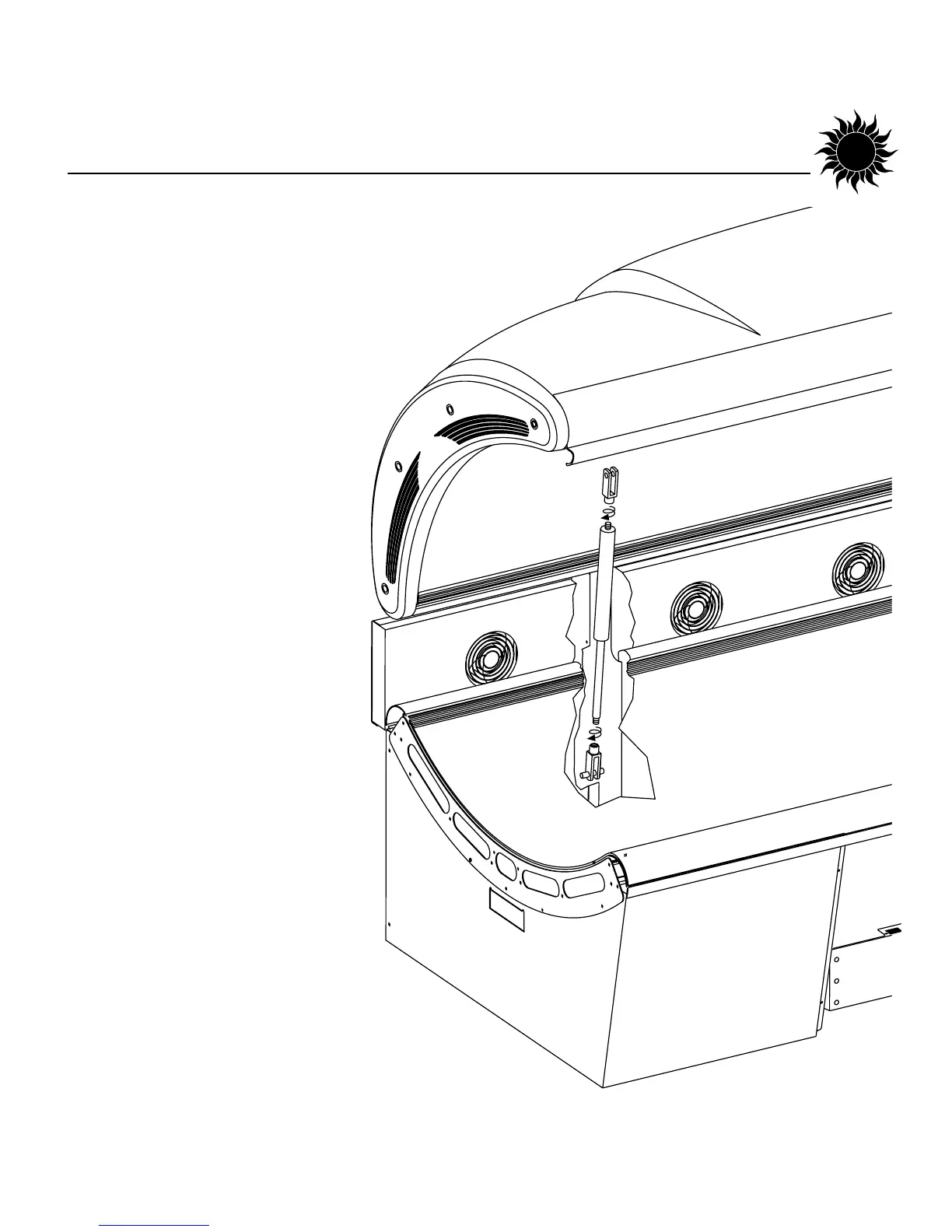

Install Gas Springs
1. Screw the upper Clevis Forks onto the
Gas Springs, piston end up as shown.
2. Have a helper hold the canopy in its
fully open position.
3. The lower clevis forks are
already installed. Make sure
the threaded hole faces up,
slide the Gas Springs down
into the bench uprights
and twist the Gas Springs
into the lower clevis forks.
Turn the Gas Springs until
they are snug.
Do not lower the canopy yet!
