Installation - Assembly Procedures

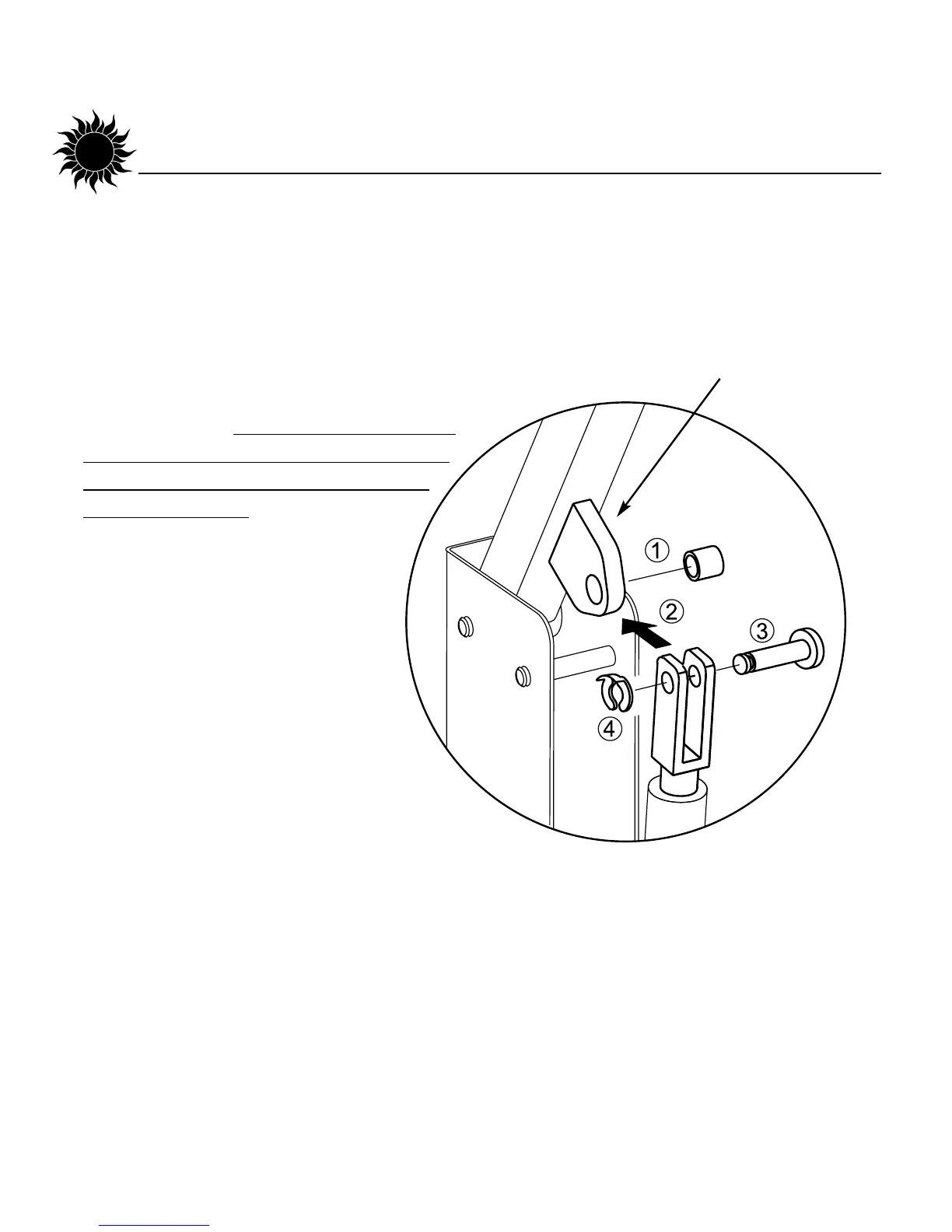

Attach Gas Springs
1. With the canopy still raised, slip the
Bronze Bushings into the hole in the
clevis brackets on the underside of the
canopy mounting arms.
2. Line up both Clevis Forks and careful-
ly lower the canopy to engage the
Clevis Forks. P
ay special attention
when lowering the canopy that the
clevis forks do not damage the
bronze bushings. Bronze is excel-
lent for smooth pivoting applica-
tions such as this, but tends to
be soft compared to the steel
clevis fork.
3. Lock the Clevis Forks in place
with the Clevis Pins
4. Secure the Clevis Pins with the
Retaining Rings.
NOTE: When this assembly is complete,
lift and lower the canopy a few times to
lubricate the gas springs for optimum per-
formance.
Clevis Bracket
